Acrylic Display / Beauty Counter LED Lighting

High‑density COB with opal diffusers delivers dotless, uniform light for close‑view displays and beauty counters.

DC12/24VCRI ≥90 (≥95)Dotless (COB)Uniform appearanceUL/ETL · CE/RoHS

Typical Positions

  • Edge‑lit acrylic with diffuser for uniform glow
  • Under‑shelf task lighting for product highlights
  • Backlight panels for branding zones
  • Perimeter accent light for counters

Quick Quantity Estimator

Total meters ≈ run length × lines per display × no. of displays.

Driver sizing = (W/m × total meters) × 1.25 headroom. Prefer COB + opal diffusers for dotless finish.

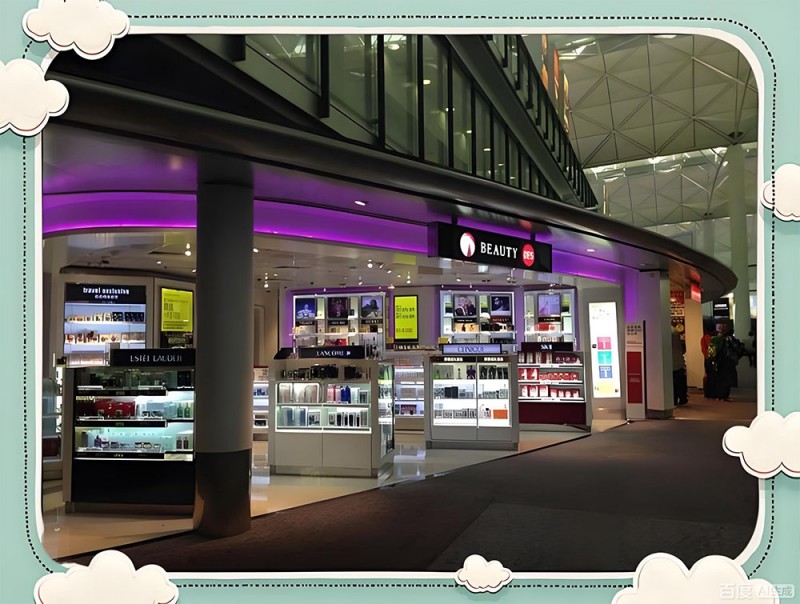

Acrylic display dotless lighting

Interactive Quantity Estimator

Total ≈ 0.0 m Driver ≥ 0 W Copy to RFQ Email

Total meters ≈ run length × lines per display × no. of displays. Driver sizing ≈ (W/m × total meters) × 1.25 headroom.

Recommended Strips (Examples)

VoltageW/mlm/mCRICCTCuttingWidthIPNotesDownloads
24V10–12~900–1200≥90/953000/4000/6500K50 mm8/10 mmIP20 Dotless COB in diffuserSpectrum Report
12V8–10~700–1000≥90RGB/RGBW25/33 mm8/10 mmIP20 Accent colors / effectsDatasheet

For close viewing, use high‑density COB + opal cover to eliminate LED dots.

Reference BOM (Per Unit)

Download: Example spectrum report

Compliance / Certifications

Coverage depends on actual certified models and materials. Contact us for the certificate list per model.

UL ETL CE RoHS REACH ISO 9001 EMC

Gallery

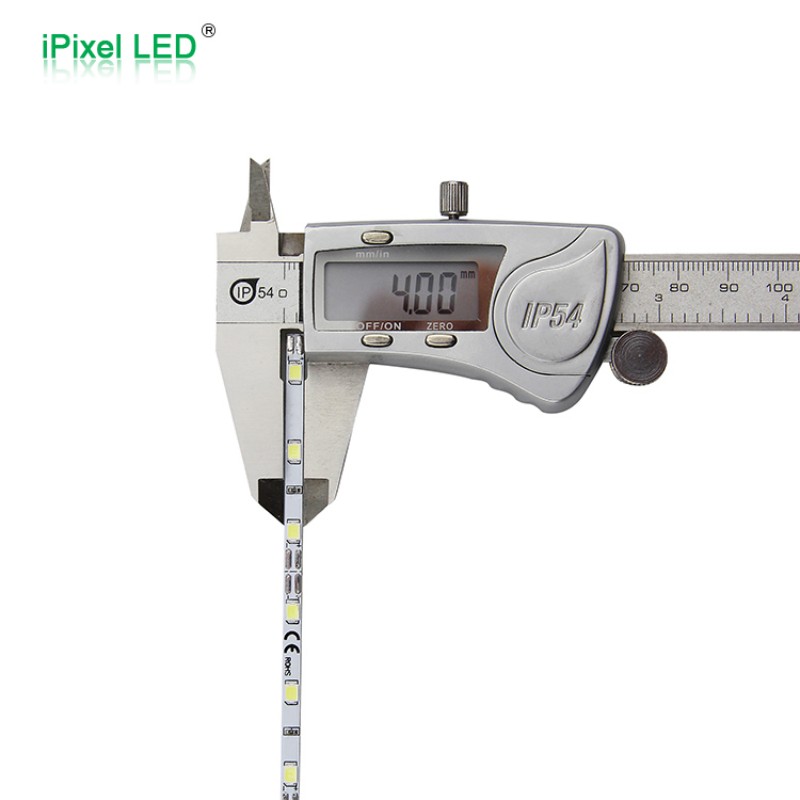

COB profile close‑up
Counter illumination

FAQ

How to remove LED dots?

Use high‑density COB with opal diffuser and adequate setback.

Recommended CRI?

CRI ≥90 for accurate colors on cosmetics/packaging.

RGB okay for counters?

Yes for accents; keep task zones high‑CRI white.
