Typical Mounting

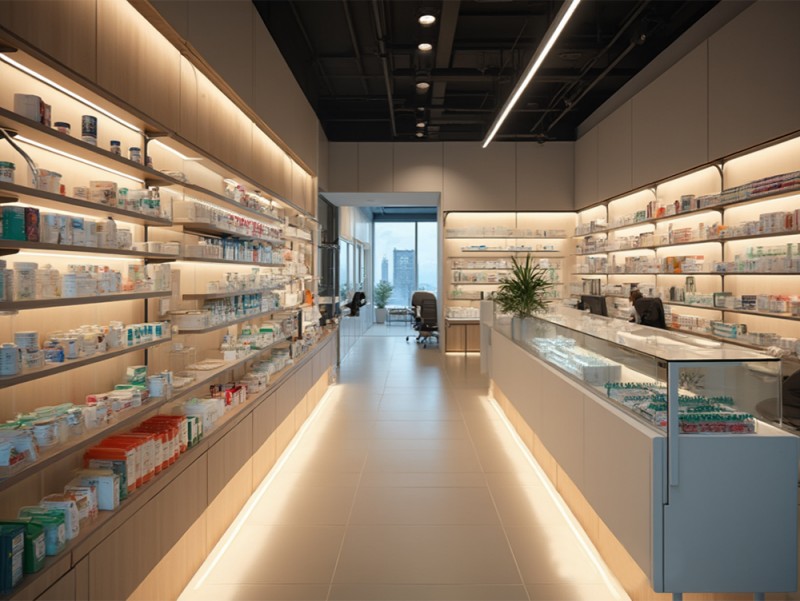

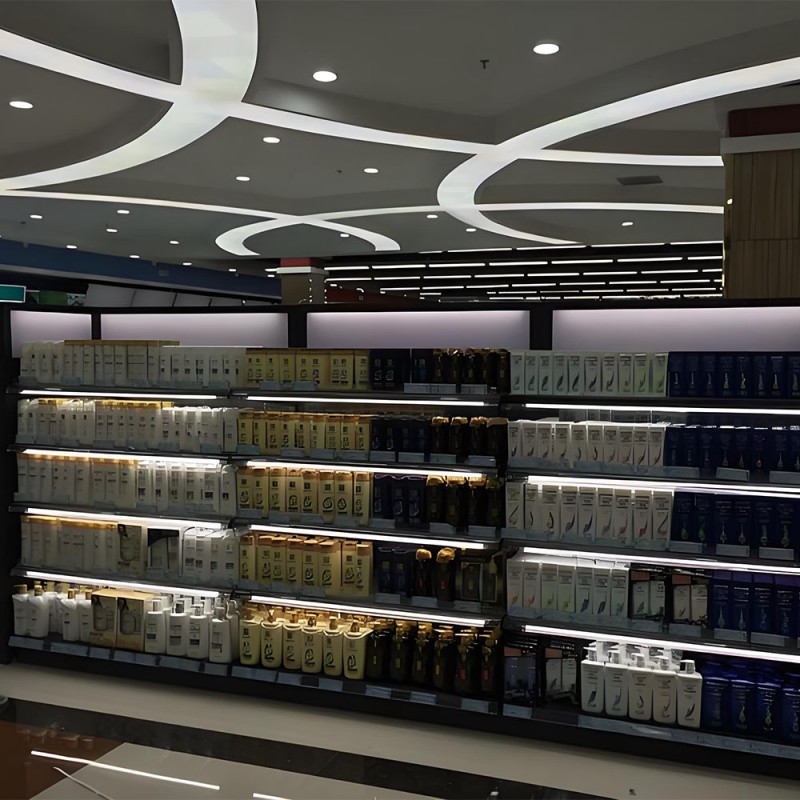

- Front edge under‑shelf: highlights labels and product faces
- 30–60° tilt under the shelf to reduce glare
- Column/back‑panel outline for zoning and navigation
Quick Estimator
Per‑bay length ≈ shelf width × number of tiers (e.g., 0.9–1.2 m × 4–6 tiers → 3.6–7.2 m/bay).
PSU sizing = (W/m × total length) × 1.25–1.3; inject power every 4–6 m at 24 V, 2–3 m at 12 V.
