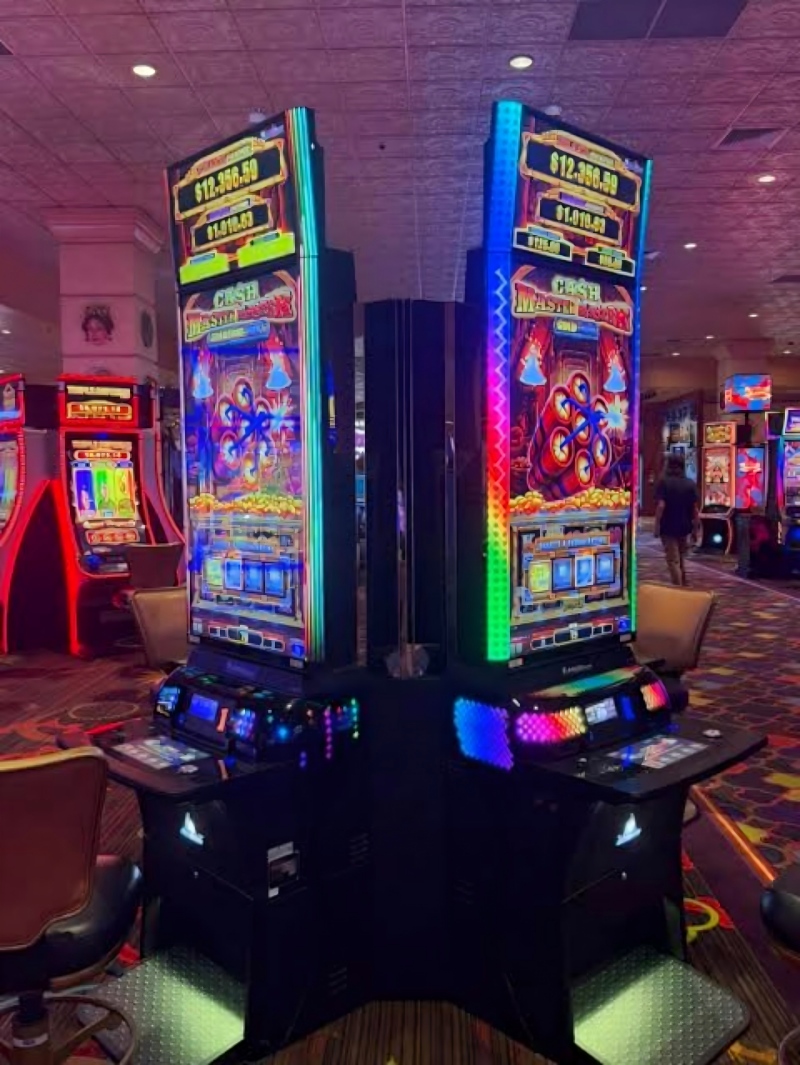

High‑brightness, stable, field‑serviceable pixel strips that sync with cabinet animations and audio. Fits columns, bezels, toppers, button decks and pedestals.
Version: 2025-12-06 · Replace sandbox links with production URLs when publishing.
Total length (per cabinet) ≈ column height × 2 + topper perimeter + pedestal perimeter. Modern cabinets typically use 6–12 m depending on design.
Driver sizing = (W/m × total length) × 1.3 headroom; prefer 24V for longer runs with power injection.
| Voltage | Pixel | LED/m | W/m* | PCB | IP | Cutting | Notes | Downloads |
|---|---|---|---|---|---|---|---|---|

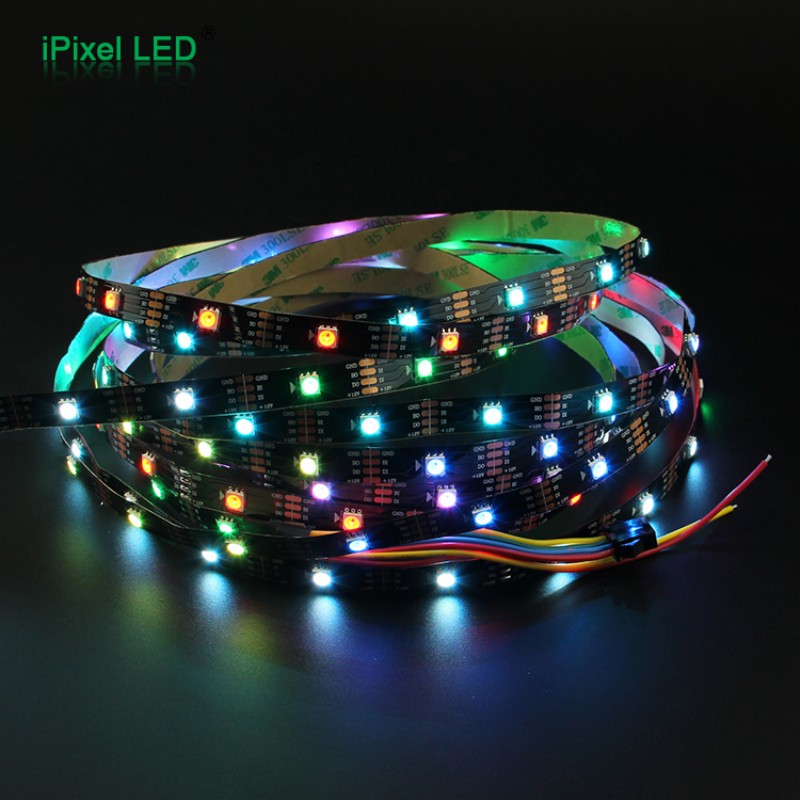

| 12V | 3‑wire addressable | 30 | ≈4.6 | 10 mm black | IP20 | per 3 LEDs | Classic option with mature effects | Spectrum Report (R/G/B/Mix) |

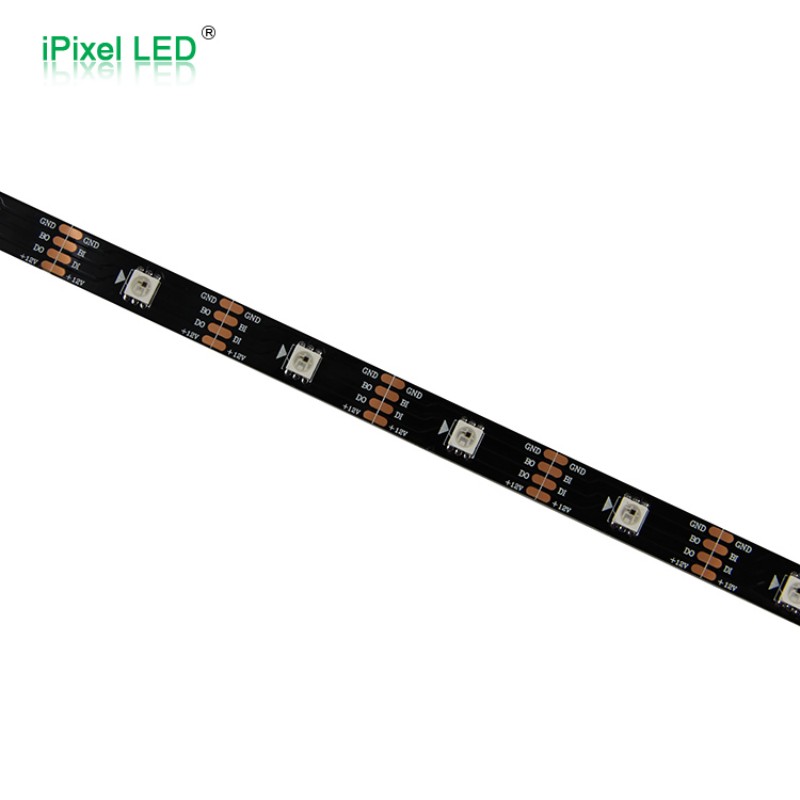

| 12/24V | 3‑wire addressable | 48/60 | 8–12 | 10 / 12 mm | IP20/54 | per‑LED or per‑2 LEDs | Finer animation and higher brightness | Datasheet |
*Power varies with animation duty cycle and white usage; size PSUs for 100% white and limit current in firmware.
Key results from the 1‑m 12V sample: Green ≈72.6 lm @ ≈15.95 lm/W; Red ≈20.8 lm @ ≈4.49 lm/W; Blue ≈17.4 lm @ ≈3.82 lm/W; Mixed ≈109.7 lm @ ≈23.39 lm/W. See the PDF for details.
