Home > LED Flex > COB > Free cut COB single color led strip- 528LEDs/m DC12V/DC24V

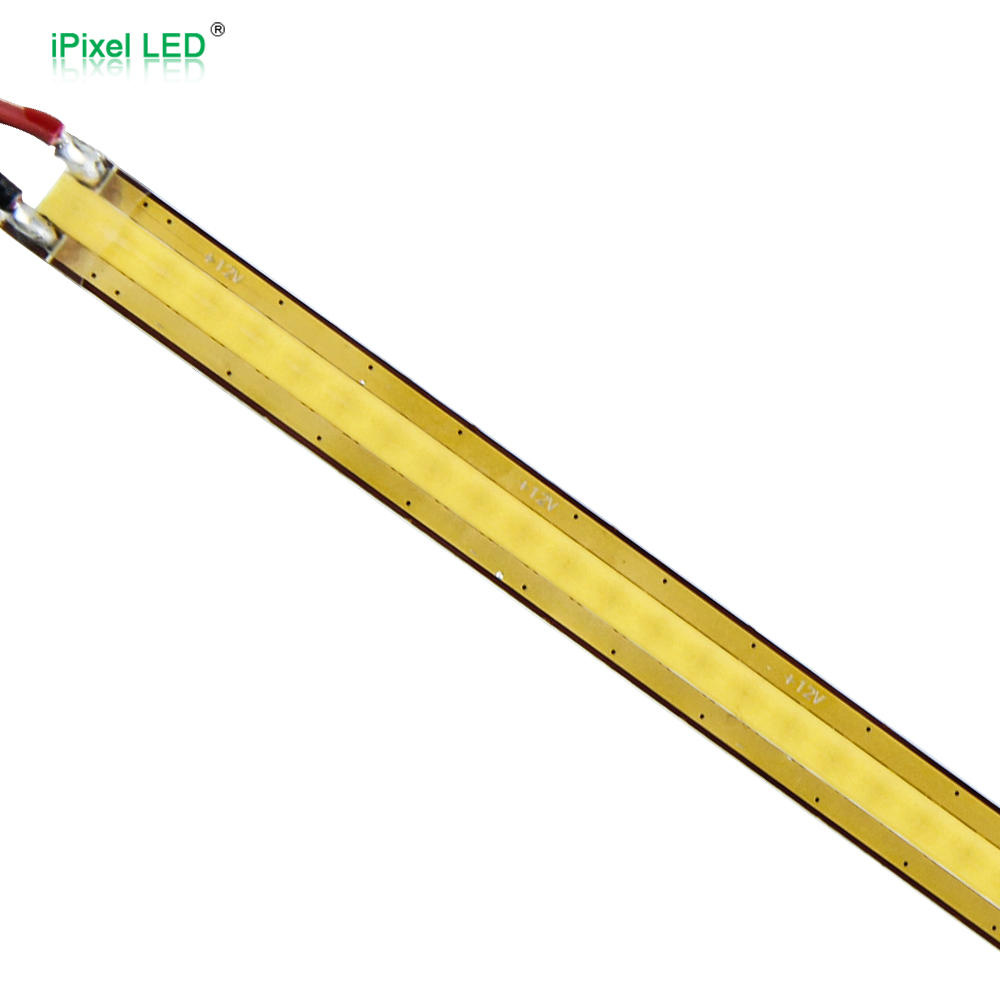

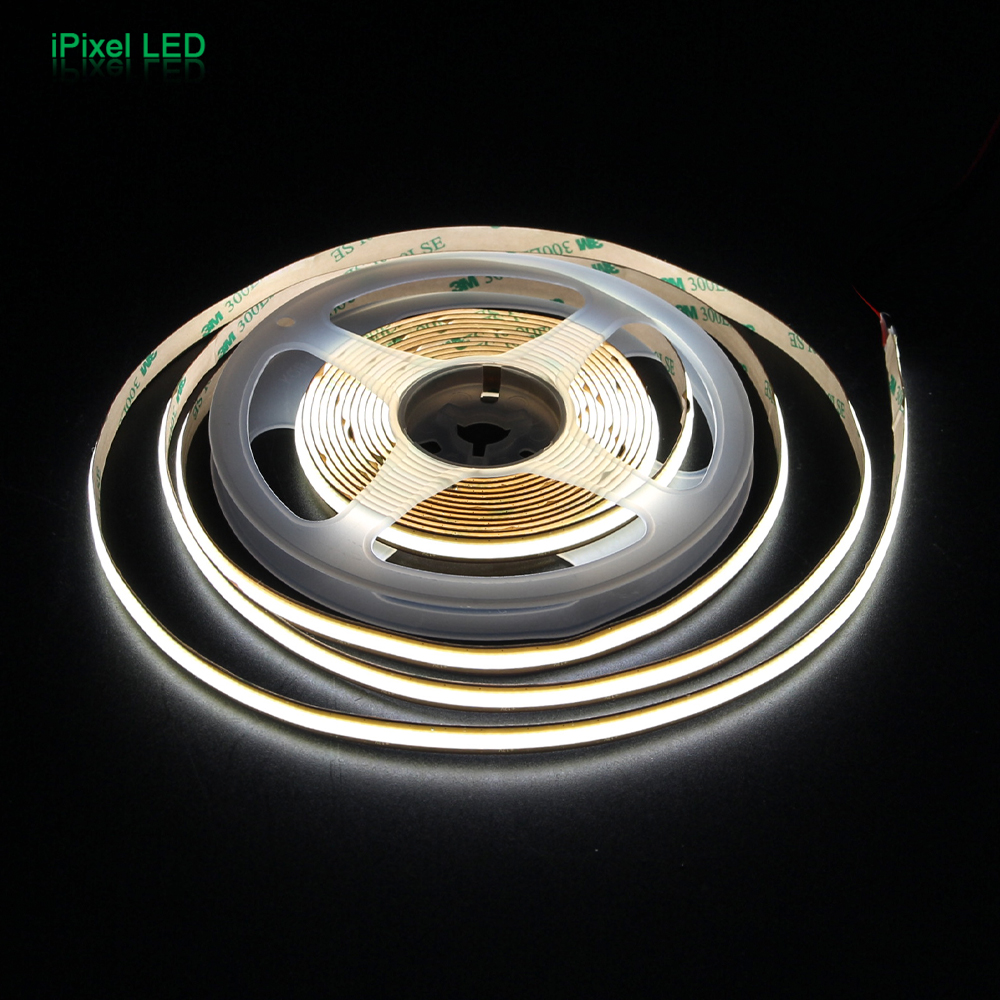

Free cut COB single color led strip- 528LEDs/m DC12V/DC24V

Description

-High density, the light is even and soft
-High efficiency, remarkable energy saving effect
-The maximum luminous angle is 180°
-Chip longitudinal distribution, high reliability;
-Product have good color rendering consistency CRI better than 90

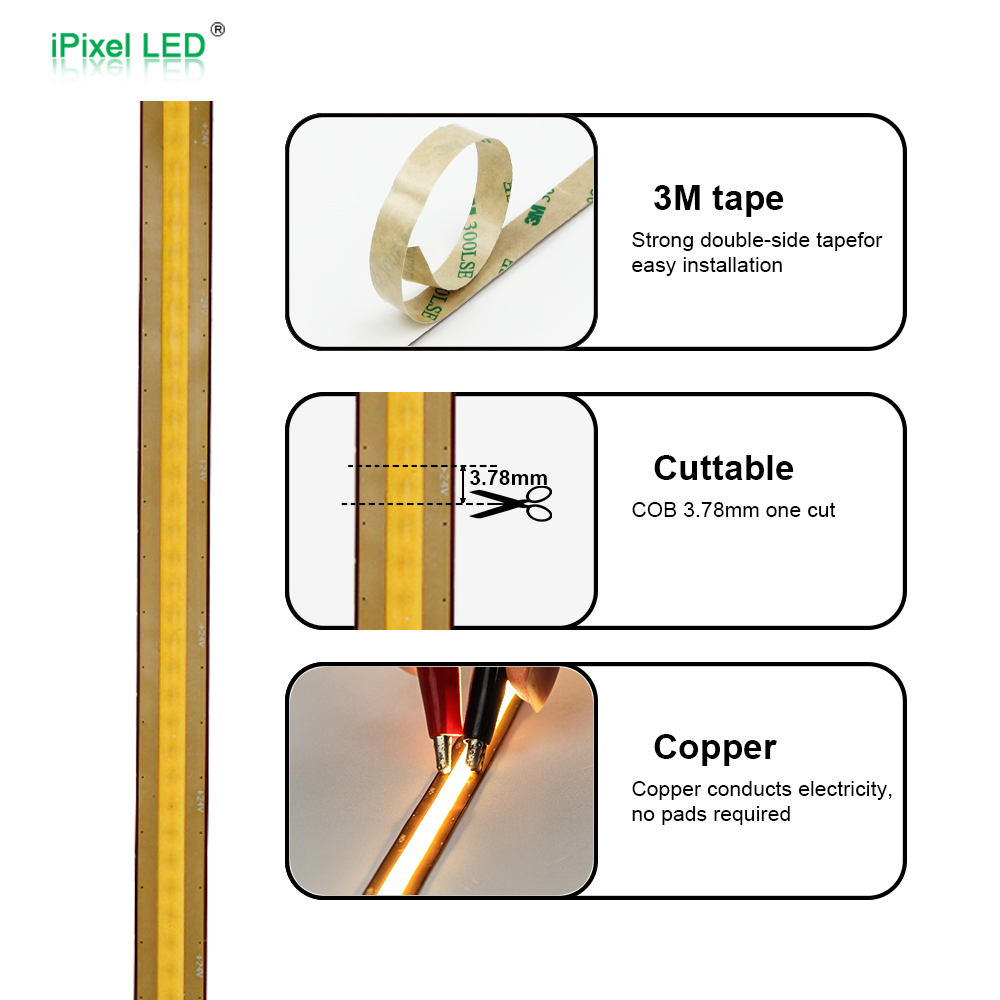

-Super short cut(3.78mm) COB led strip
-SDCM is less than 5 steps

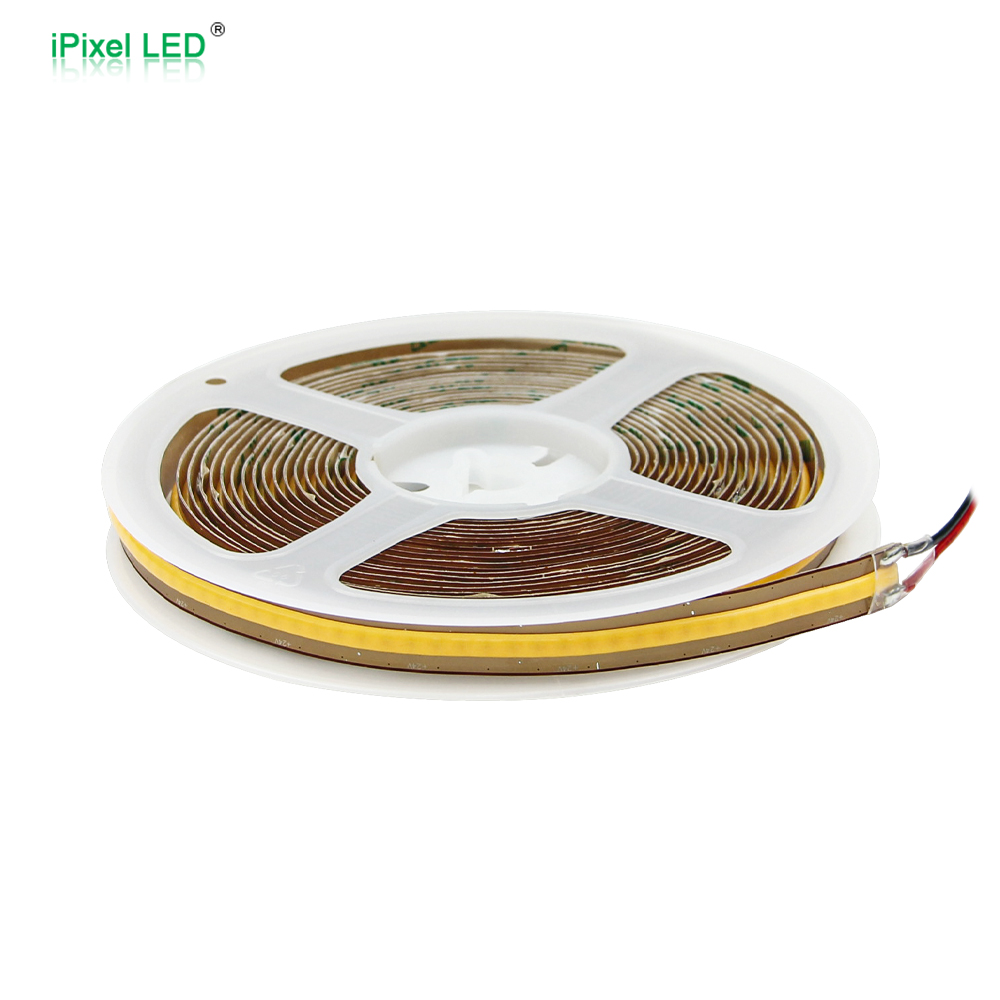

-Standard 5M/roll, length can be customized

Share to

Specification

Product Parameter

PN	S008528ZB1LZ(M)	S008528ZC1LZ(M)
Voltage	DC12V	DC24V
SMD Type	COB	COB
Power	10W/m	10W/m
LED Quantity	528LEDs/m	528LEDs/m
Cutting Length	3.78mm	3.78mm
CCT	3000K/4000K/6500K	3000K/4000K/6500K
Dimension	5000*8mm	5000*8mm
Lumens(lm/m)	650	600
SCDM	<5	<5
CRI	90RA	90RA
O.T	-25℃ ~ 60℃	-25℃ ~ 60℃

Remarks:
1.The above parameters were tested according to integrating sphere TM-30-15.
2.The output data is based on IP20 and one merter.
3.The data such as power etc, ±15% tolerance is normal.
4.IP protection process causes changes in size, CCT and luminous flux

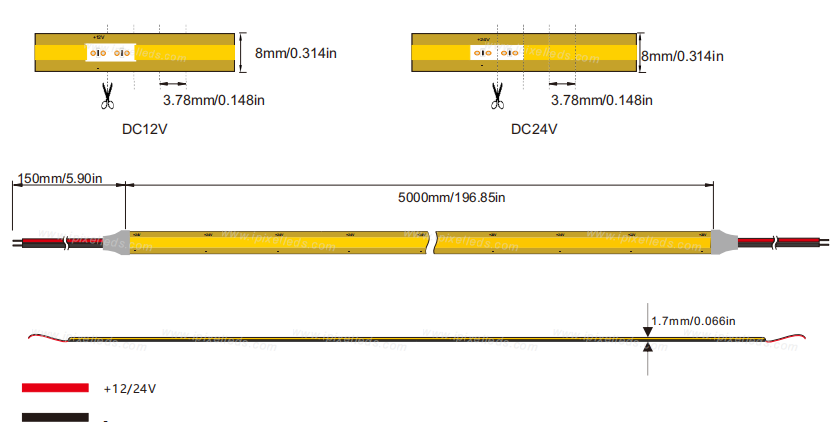

Dimension (unit:mm)
