Home > LED Flex > COB > Mini cut COB 8mm 528LEDs/m single color led strip DC24V

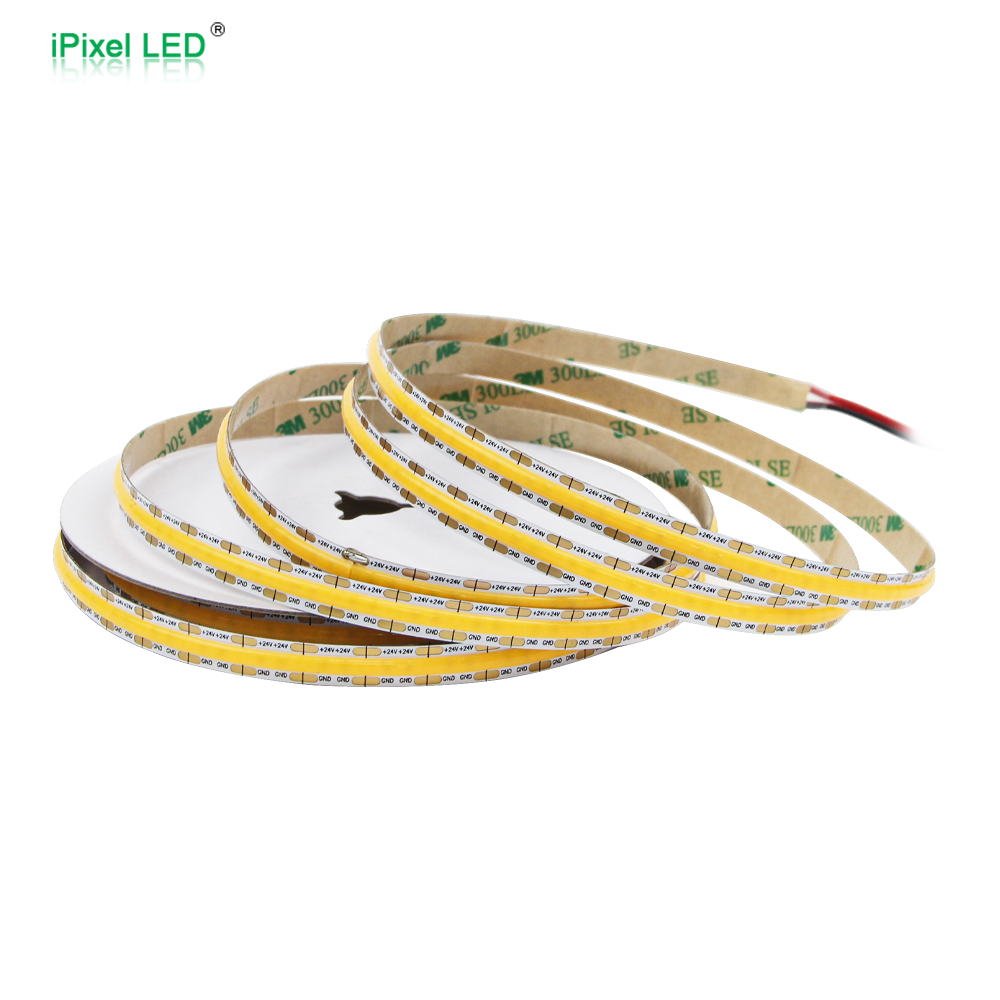

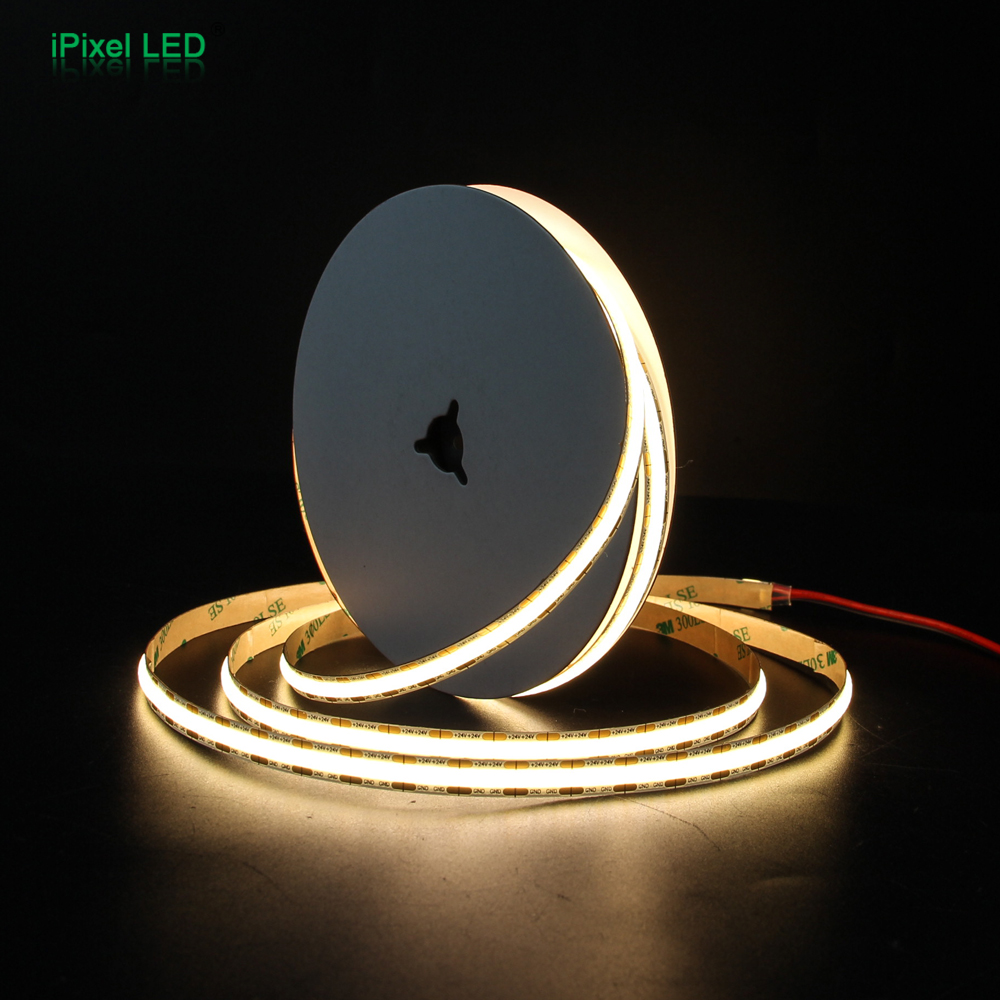

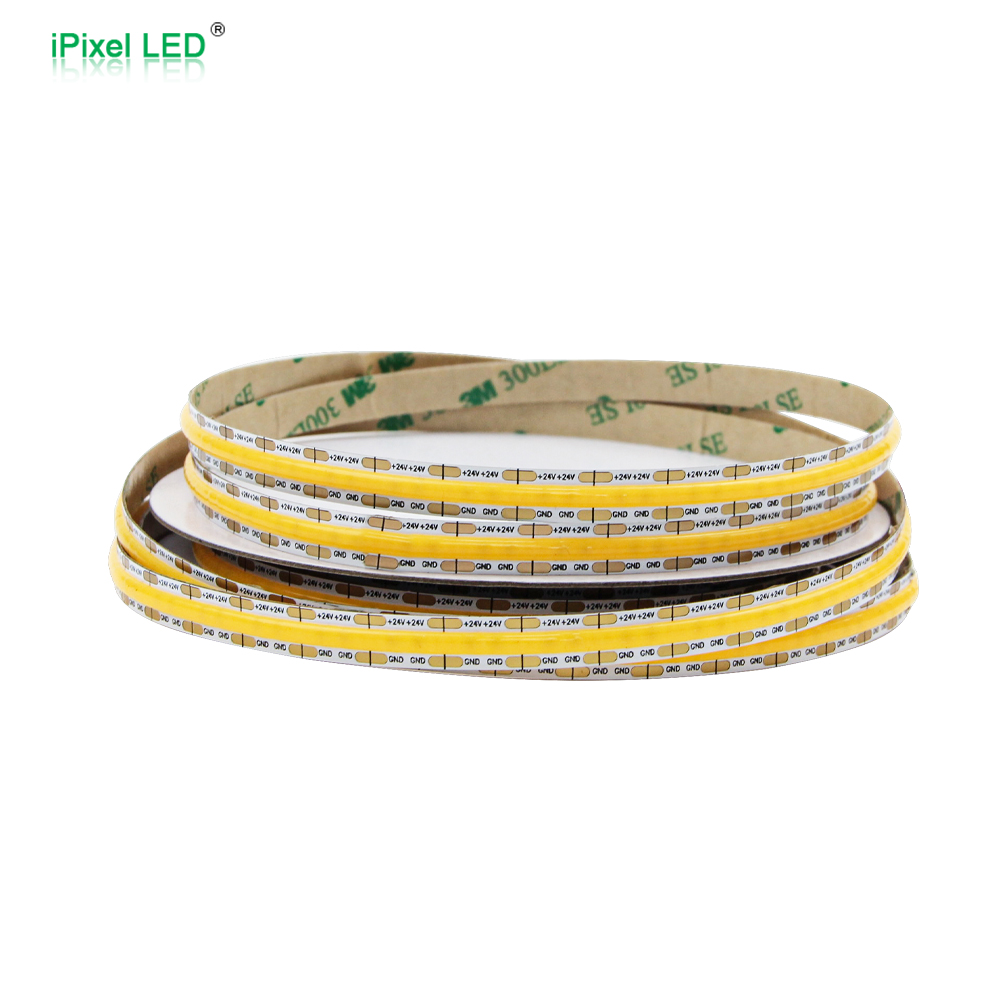

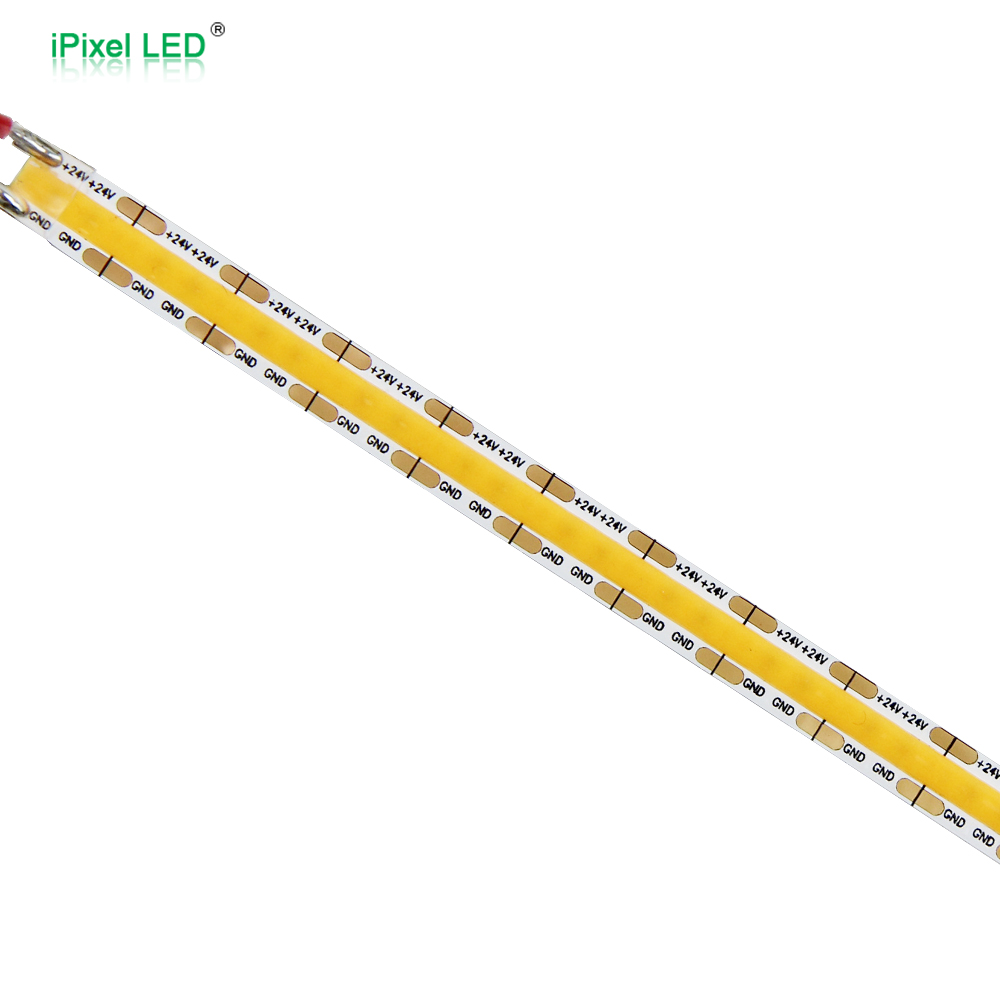

Mini cut COB 8mm 528LEDs/m single color led strip DC24V

Description

-This led strip uses COB LED chips, high density with 528LEDs/m, Mini Cut 11.36mm.

-Input voltage is DC24V

-Flexible PCB, the FPCB color is white

-The FPCB width is 8mm.

-Standard 5M/roll, length can be customized

Share to

Specification

Product Parameter

PN	S008528ZC1LZ
Voltage	DC24V
Power	10W/m
SMD Type	COB
LED Quantity	528LEDs/m
CCT	3000K/4000K/6500K
Lumens(lm/m)	720Lm
SCDM	<5
Cutting Length	11.36mm
Size(mm)	5000x8mm
CRI	90RA
O.T	-25℃ ~ 60℃

Remarks:
1.The above parameters were tested according to integrating sphere TM-30-15.
2.The output data is based on IP20 and one merter.
3.The data such as power etc, ±15% tolerance is normal.
4.IP protection process causes changes in size, CCT and luminous flux

Dimension (unit:mm)

IP Rate
