-High density, the light is even and soft
-High efficiency, remarkable energy saving effect
-Double layer PCB, balancing voltage drop, heat dissipation and flexibility.
-Chip longitudinal distribution, high reliability;
-Dual white design, color changing from 2700K to 6500K.
-SDCM is less than 5 steps

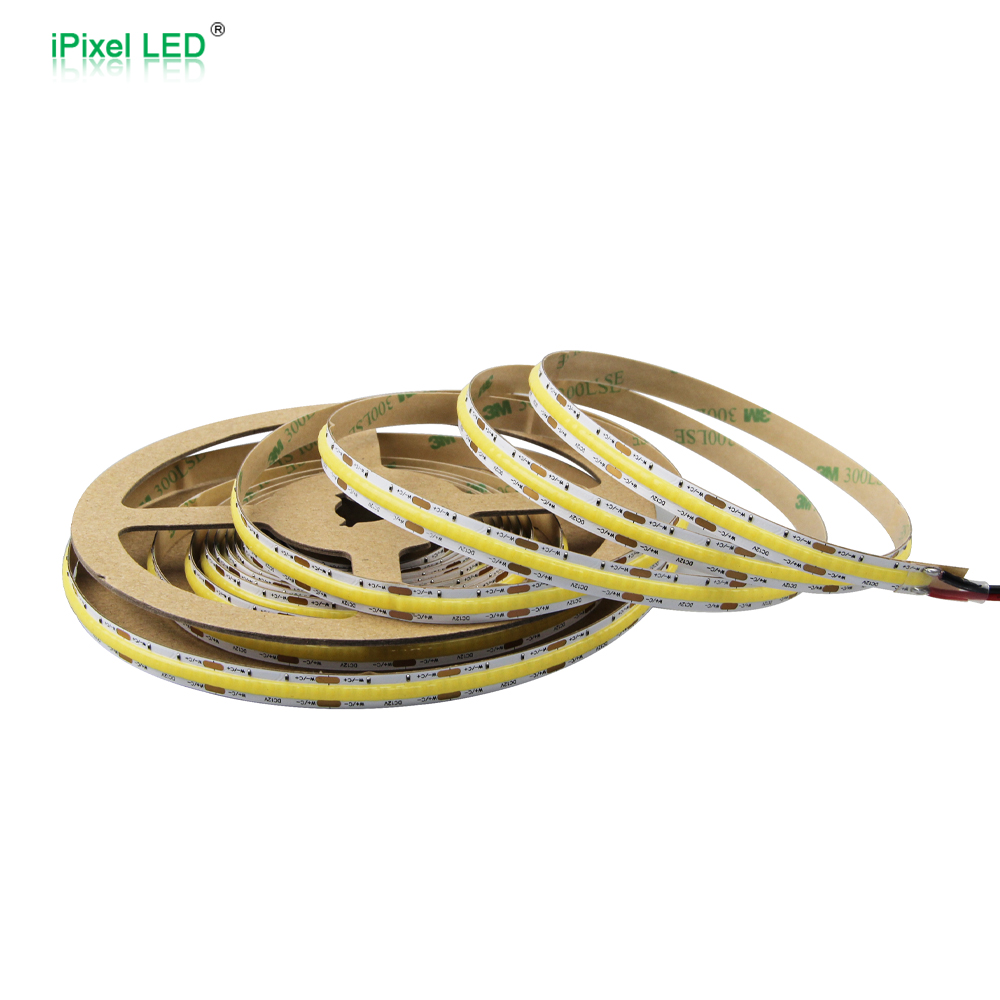

-Standard 5M/roll, length can be customized
|
PN |
S008640ZB2PZ |
S008640ZC2PZ |
|
Voltage |
DC12V |
DC24V |
|
Power |
8W/m(MAX) |
8W/m(MAX) |
|
SMD Type |
COB |
COB |
| LED Quantity |
640LEDs/m |
640LEDs/m |
|
CCT |
2700+6500K |
2700+6500K |
|
Cutting length |
25mm |
50mm |
|
Dimension |
5000*8mm |
5000*8mm |
|
Lumens/m |
CW:730lm WW:620lm |
CW:730lm WW:620lm |
| Beam Angle | 180° |
180° |
|
IP Rate |
IP20/IP65 |
IP20/IP65 |
| O.T | -25℃ ~ 60℃ |
-25℃ ~ 60℃ |
Dimension (unit:mm)
