Home > LED Flex > COB >   WS2811 Digital RGB COB LED Strip 720 LEDs/m DC12V/24V

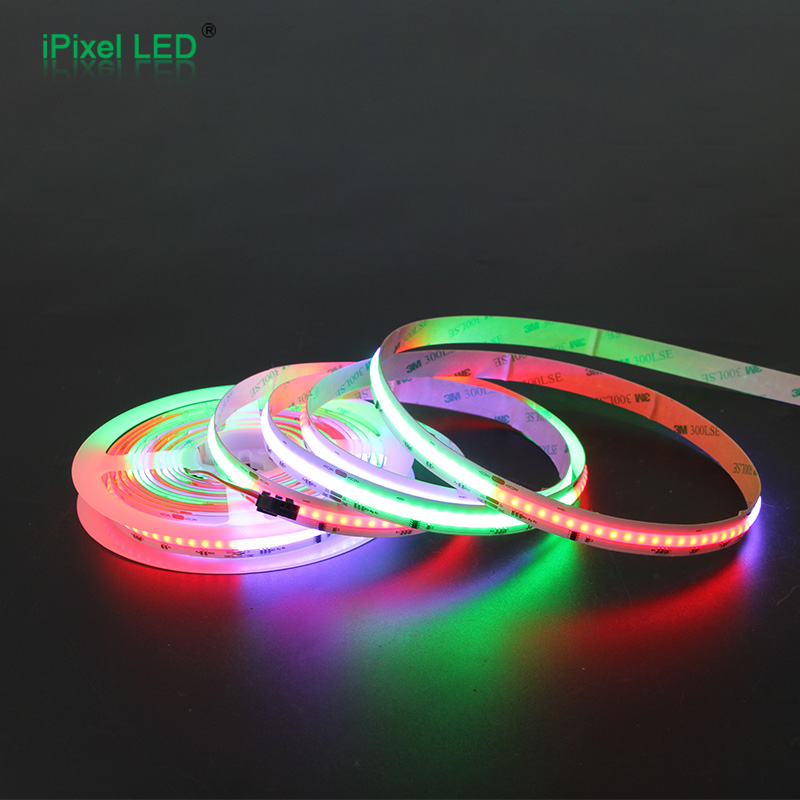

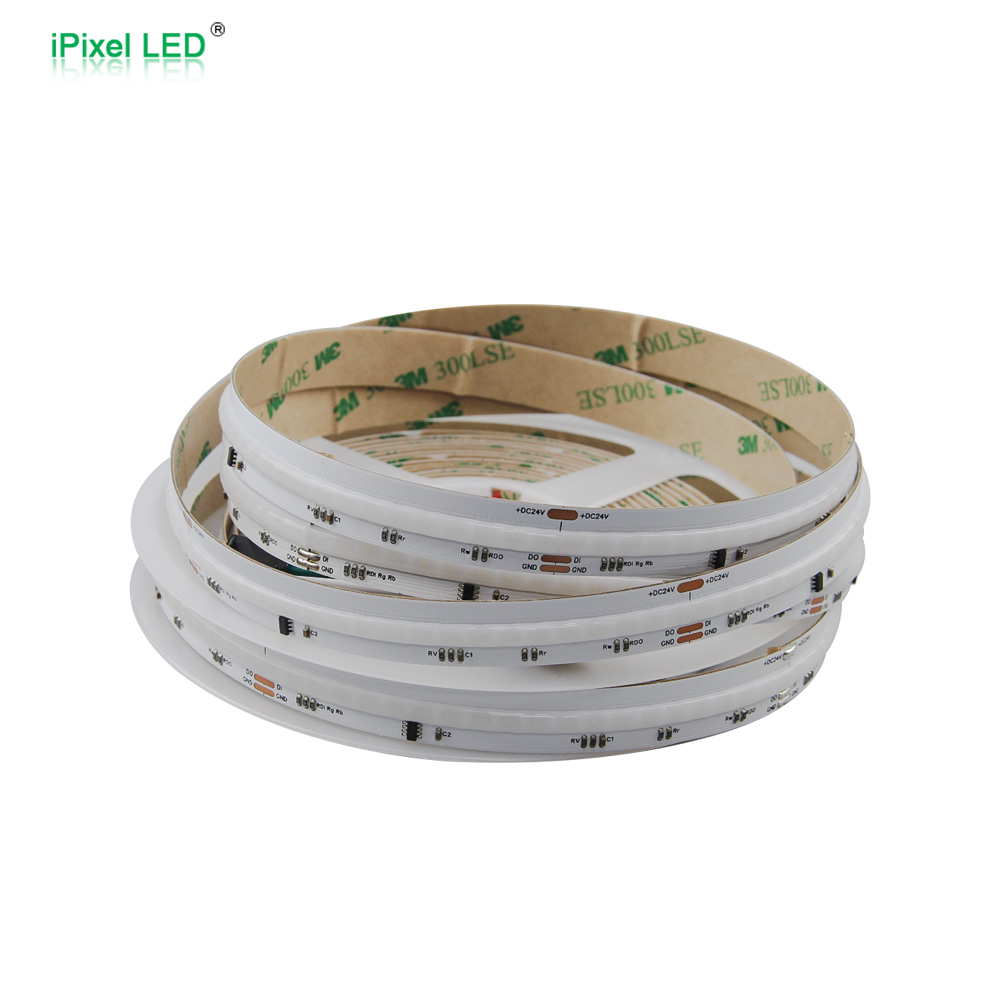

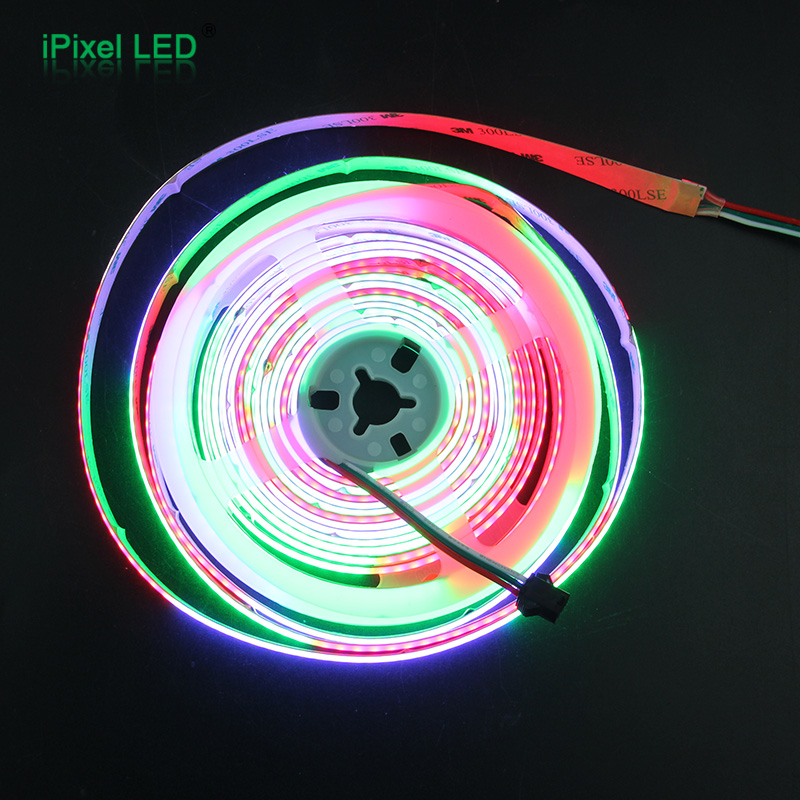

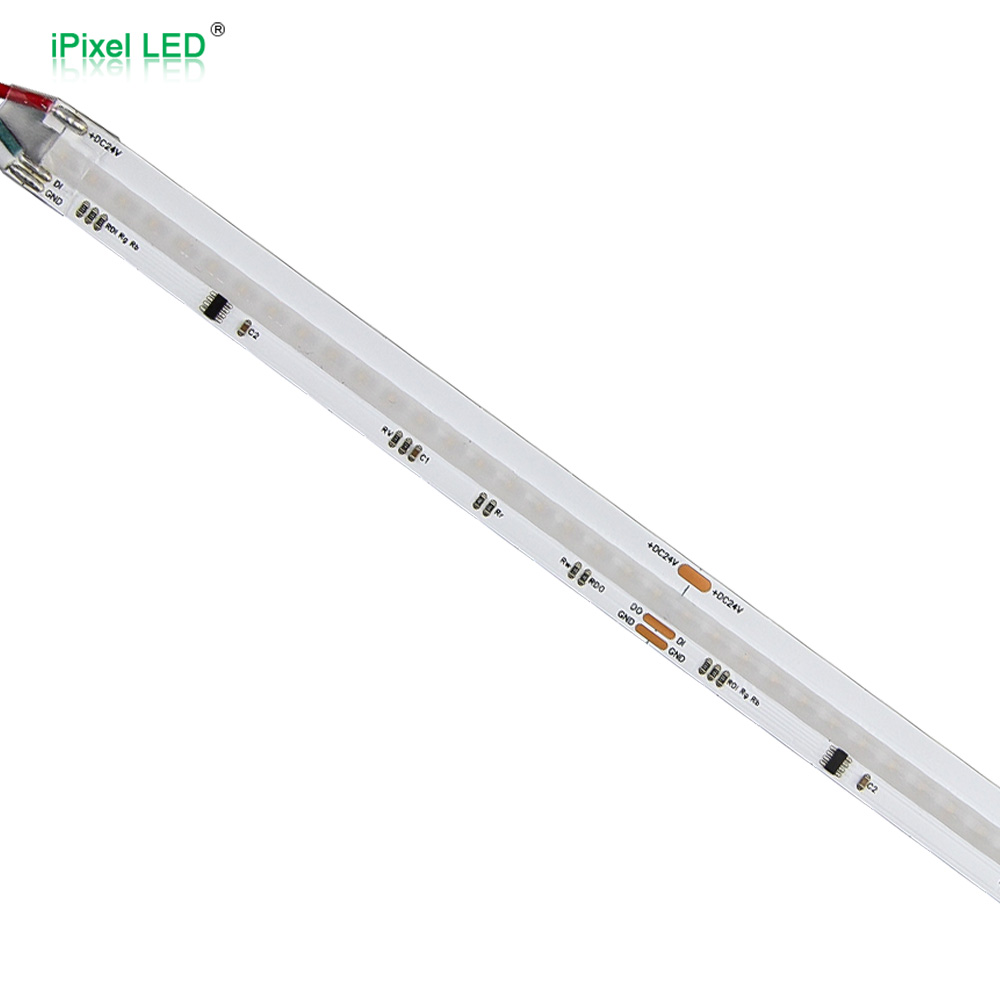

WS2811 Digital RGB COB LED Strip 720 LEDs/m DC12V/24V

-High density, the light is even and soft
-High efficiency, remarkable energy saving effect
-Double layer PCB, balancing voltage drop, heat
dissipation and flexibility.
-Chip longitudinal distribution, high reliability;
-Standard 5M/roll, length can be customized


Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
     S010720ZB3SF
      S010720ZC3SF
    Voltage
     DC12V
     DC24V
    Power
     12W/m
     10W/m
    SMD Type
     COB
     COB
    LED Quantity     720LEDs/m
     720LEDs/m
    Color
     RGB
     RGB
    Control
     SPI/WS2811
     SPI/WS2811
    Cutting length
     50mm
     100mm
    Dimension
     5000*10mm
     5000*10mm
    Luminance/m
      R:107 G:408 B:54 lm      R:79 G:311 B:51 lm
    Wavelength
     R:615-630 G:520-535 B:450-460
      R:615-630 G:520-535 B:450-460
    Beam Angle     180°     180°
    IP Rate
     IP20/IP65
     IP20/IP65
    O.T     -25℃ ~ 60℃     -25℃ ~ 60℃

Dimension (unit:mm)
