Home > LED Flex > One Color > 5mm SMD2835 Mini cut Single Color Led Strip 120LEDs/m DC12/24V

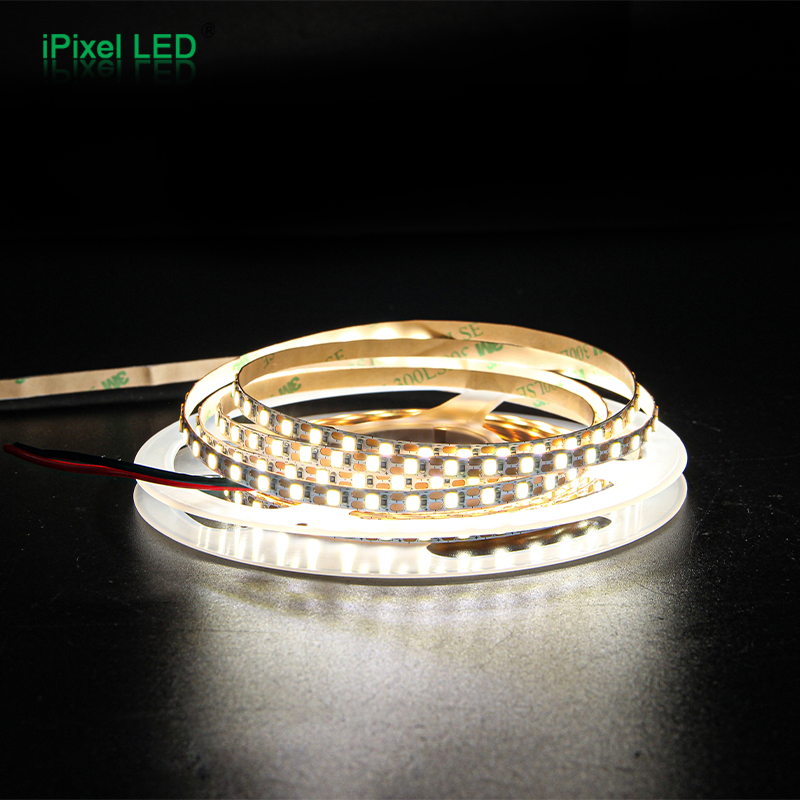

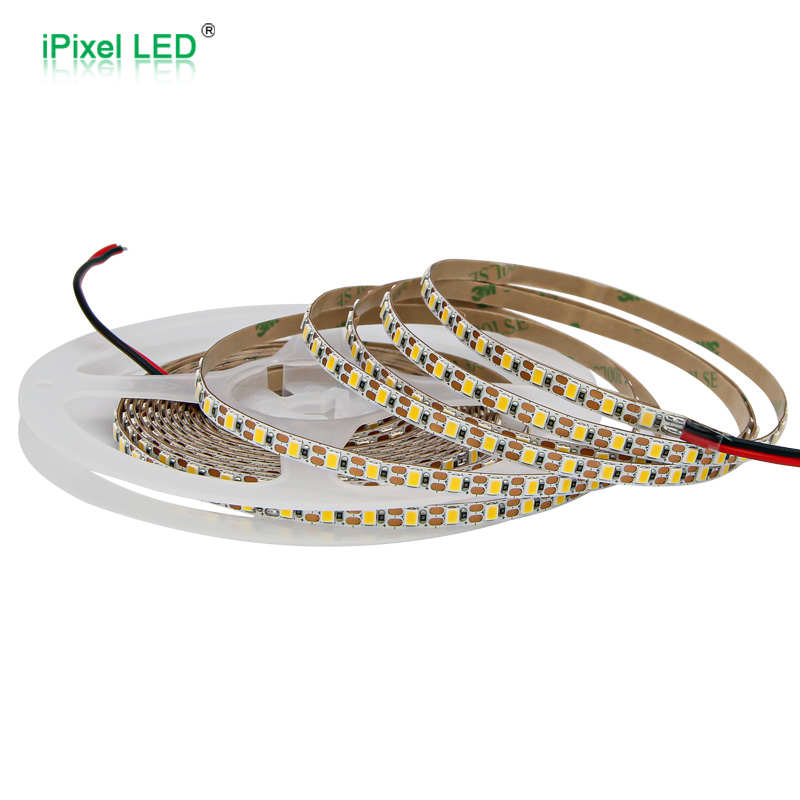

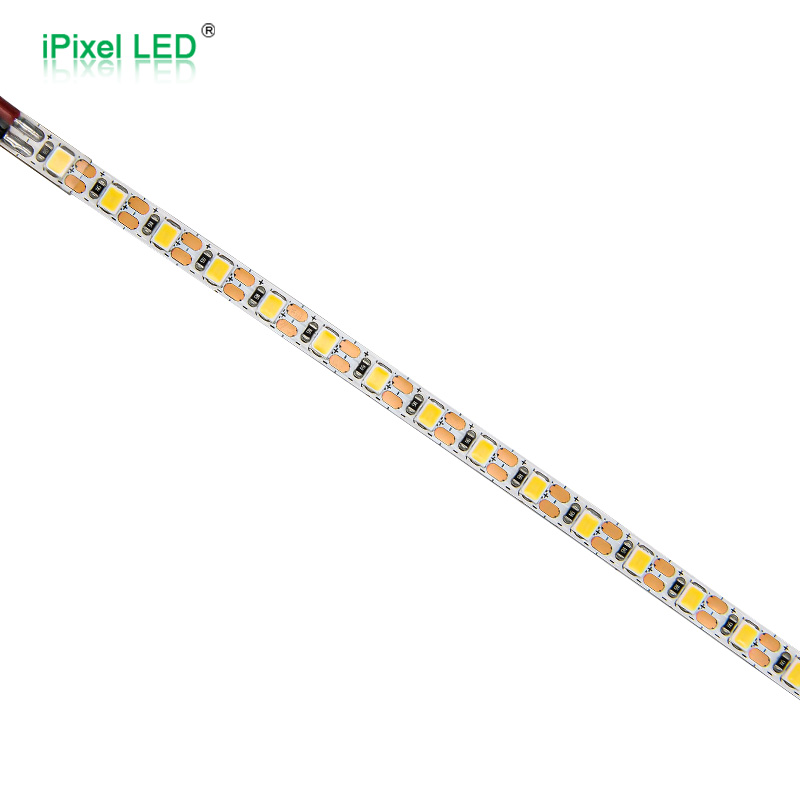

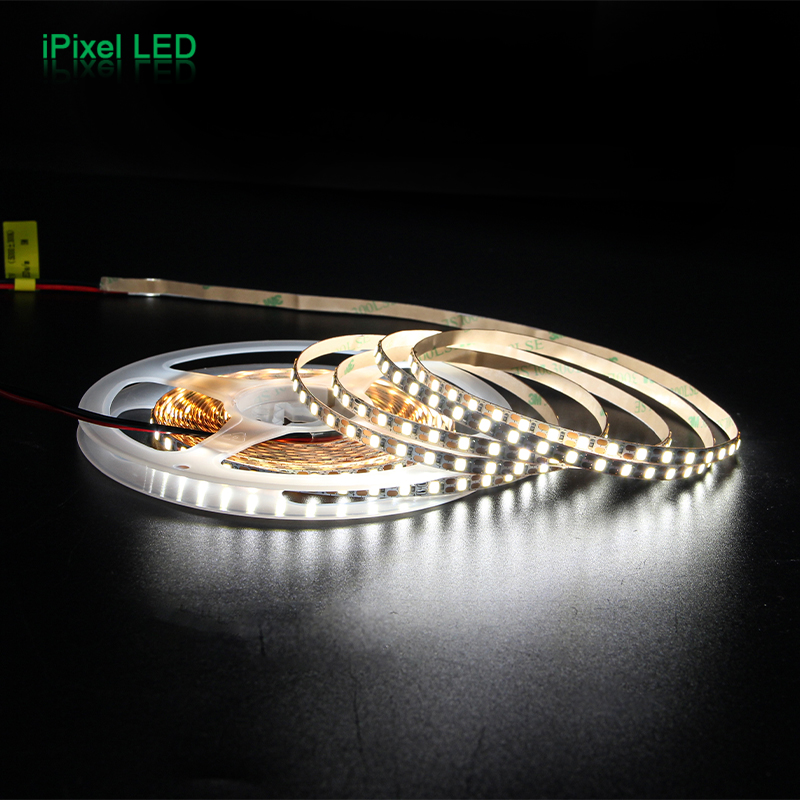

5mm SMD2835 Mini cut Single Color Led Strip 120LEDs/m DC12/24V

Description

- 2835 high brightness led, high purity gold line,

SANAN chip

- 120LEDs/M, high luminance efficiency

- 5mm flexible PCB, FPC color: white

- Standard length 5m per roll, the length also can be

customized

Share to

Specification

Product Parameter

PN	S005120BB1LZ(M)	S005120BC1LZ(M)
Voltage	DC12V	DC24V
LED Type	SMD 2835	SMD 2835
Cutting unit	8.33mm/1LED	8.33mm/1LED
LED Quantity	120LEDs/m	120LEDs/m
Color	3000K/4000K/6500K	3000K/4000K/6500K
Lumen	641lm	641lm
Dimension	5000*5mm	5000*5mm
Materiar	FPC	FPC
Power	6W/m	6W/m
IP Rate	IP20	IP20
O.T	-25℃ ~ 60℃	-25℃ ~ 60℃

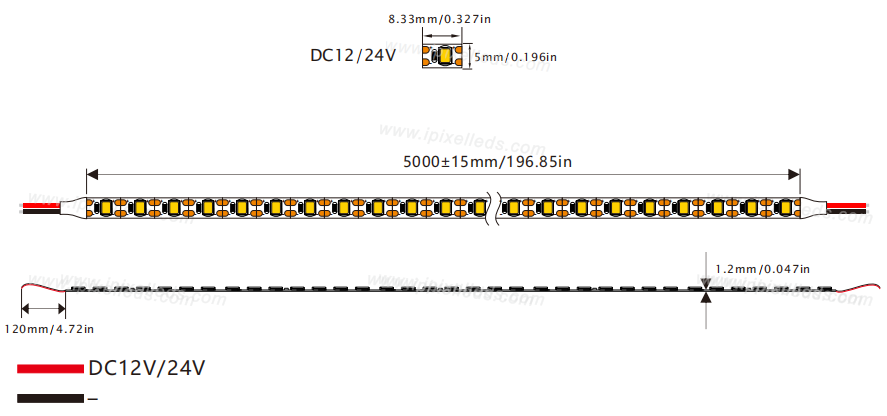

Dimension (unit:mm)
