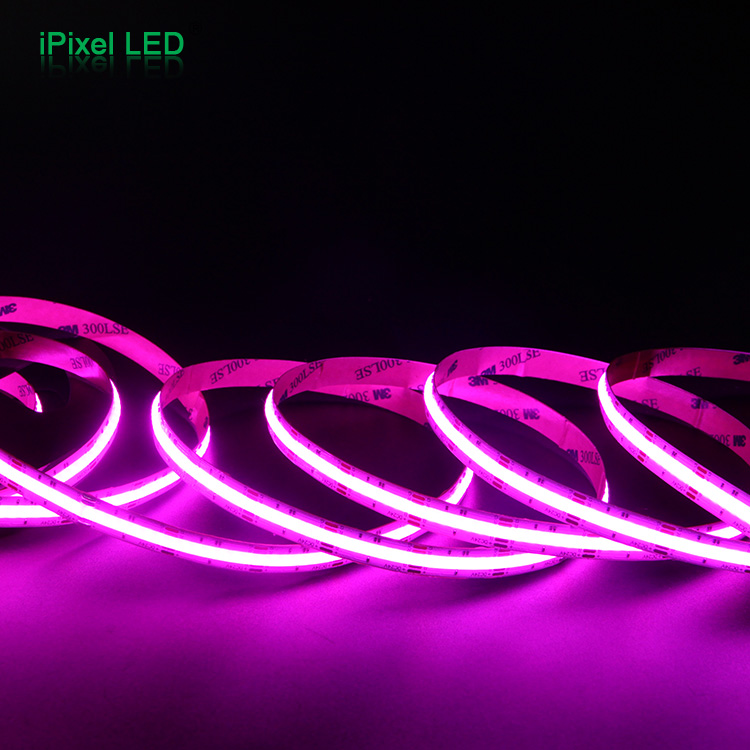

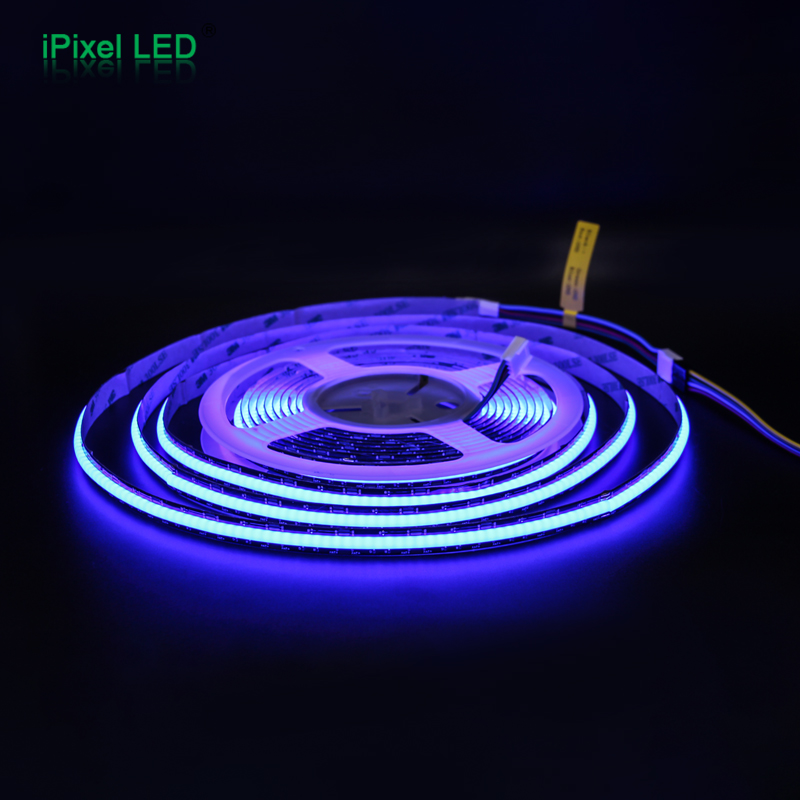

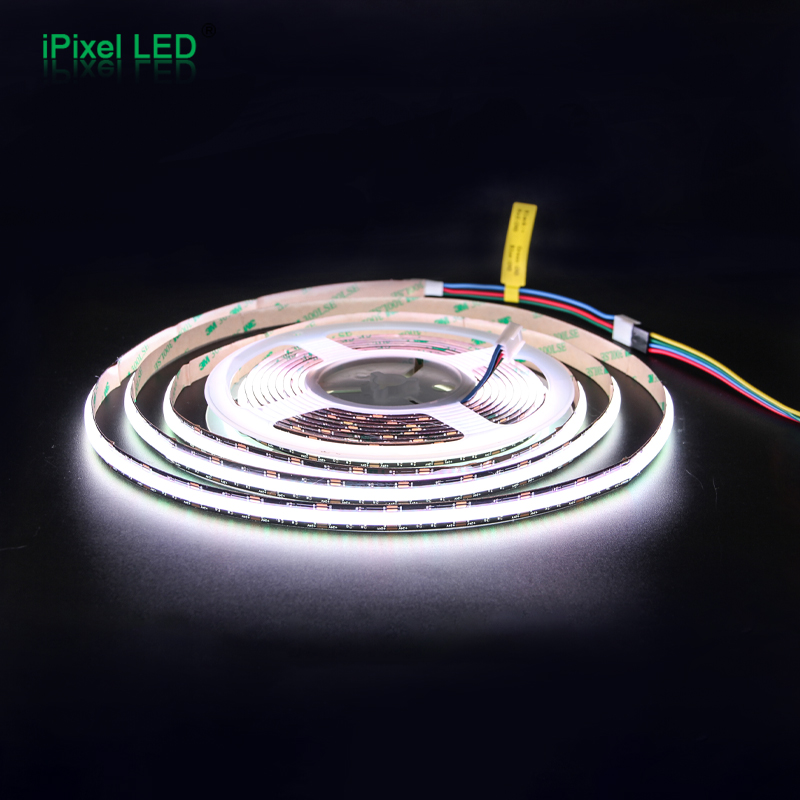

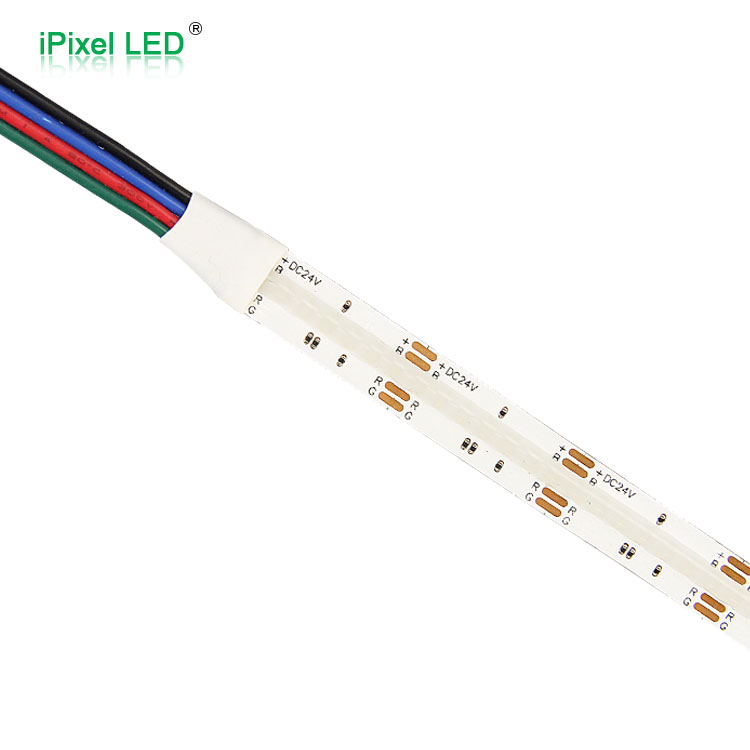

Description
-High density, the light is even and soft
-High efficiency, remarkable energy saving effect
-Double layer 2oz PCB, balancing voltage drop, heat dissipation and flexibility.
-Chip longitudinal distribution, high reliability;
-Standard 5M/roll, length can be customized
|
PN |
S010840ZC3PZ |
|
Voltage |
DC24V |
|
Power |
15W/m |
|
SMD Type |
COB |
| LED Quantity |
840LEDs/m |
|
Cutting Length |
50mm |
|
View Color |
RGB |
|
Wavelength |
R:615-630 G:520-535 B:450-460 nm |
|
Lumens/m |
R:126 G:345 B:56.5 |
| PCB color |
White/Black |
|
Dimension |
5000*10mm |
|
IP Rate |
IP20/IP65 |
| Q.T |
-25 - 60℃ |
Dimension (unit:mm)
IP Rate
