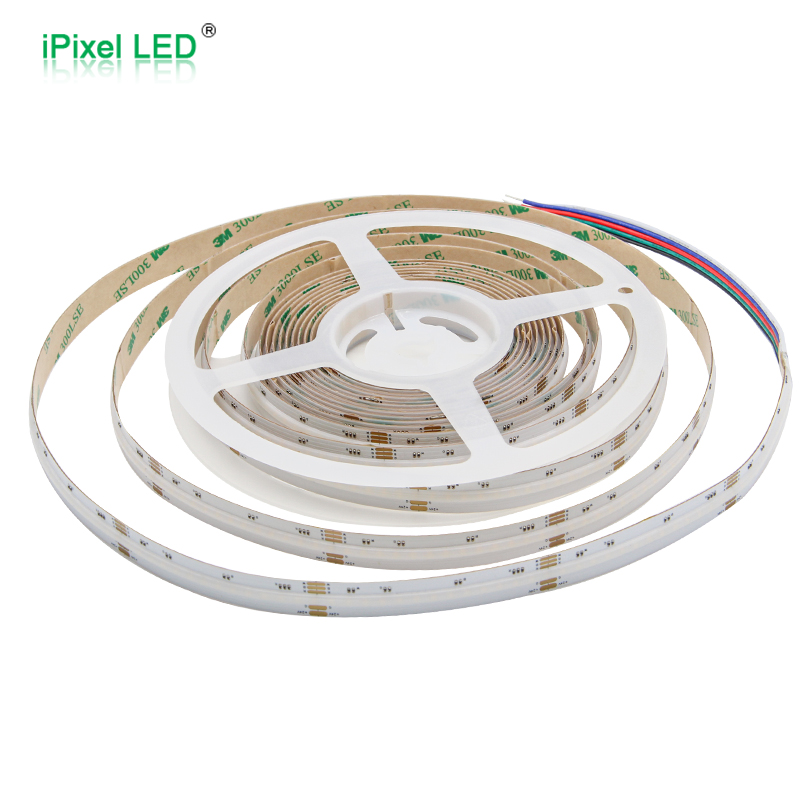

Description
-High density, the light is even and soft
-High efficiency, remarkable energy saving effect

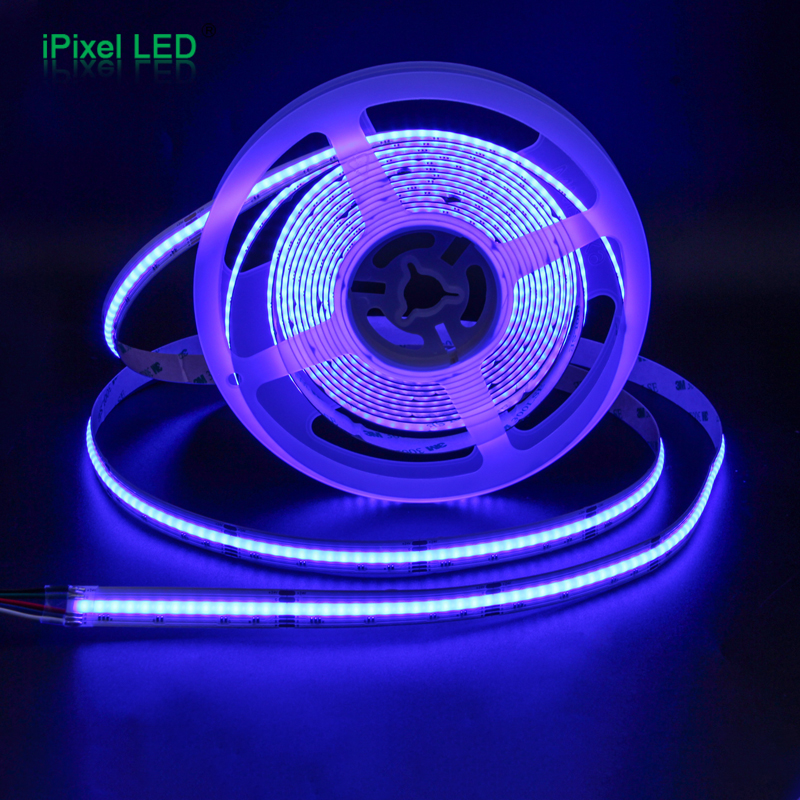

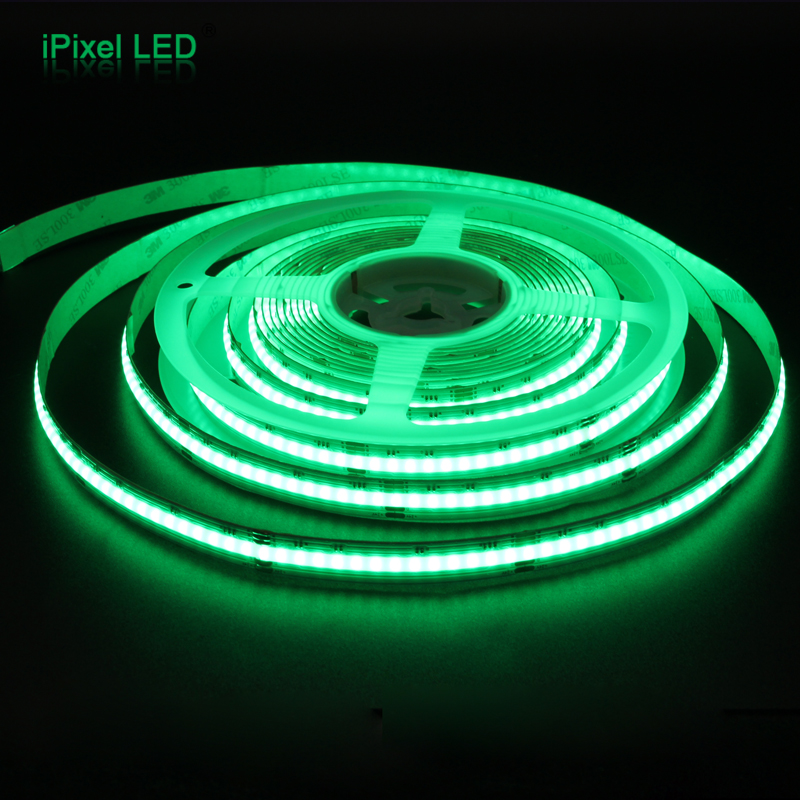

-Intelligent lighting, colorful RGB
-Double layer 2oz PCB, balancing voltage drop, heat
dissipation and flexibility.
-Chip longitudinal distribution, high reliability;
-Standard 5M/roll, length can be customized
|
PN |
S012896ZC4PZ |
|
Voltage |
DC24V |
|
Power |
16W/m |
|
SMD Type |
COB |
| LED Quantity |
896LEDs/m |
|

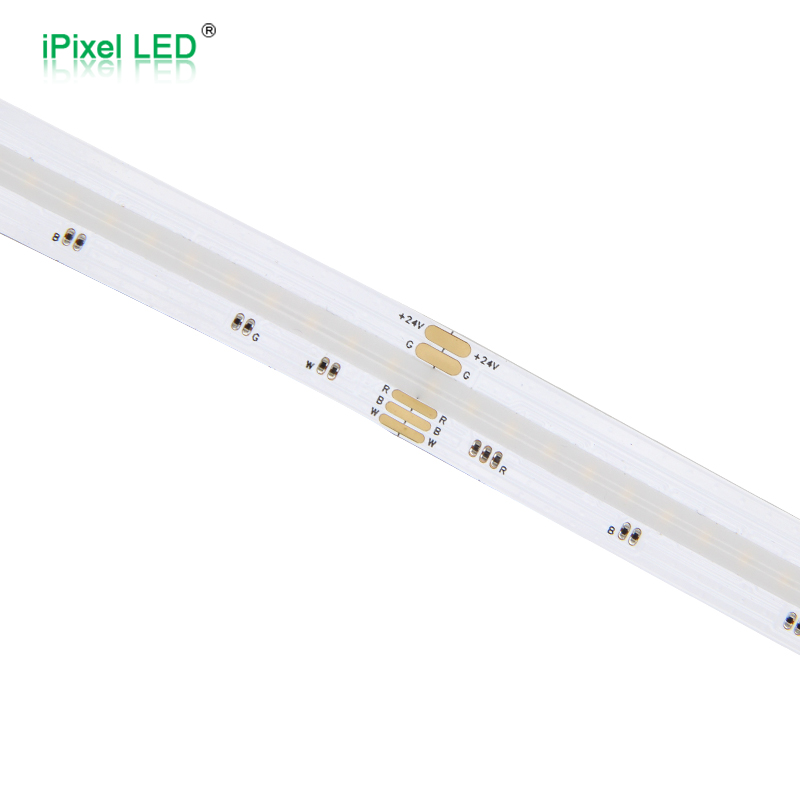

Cutting Length |
62.5mm |
|
View Color |
RGB+W:3000K / 4000K / 6500K |
|
Dimension |
5000*12mm |
|
Wavelength |
R:620-625 G:520-525 B:460-465nm |
|
Lumens/m |
R:100 G:190 B:30 W:280lm |
| Material | FPC |
| Q.T | -25 - 60℃ |
Dimension (unit:mm)
IP Rate
