Description

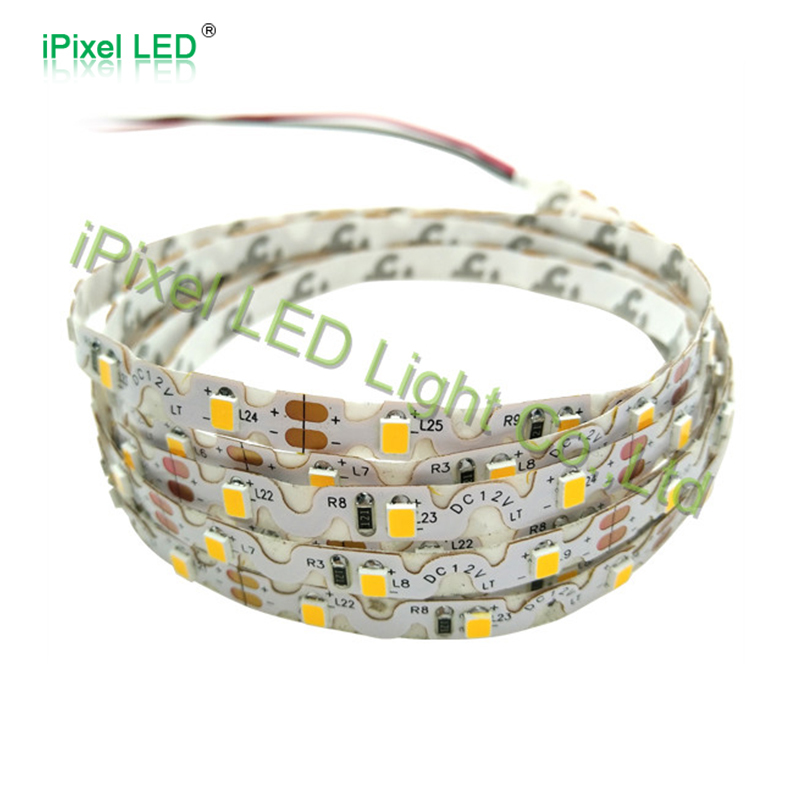

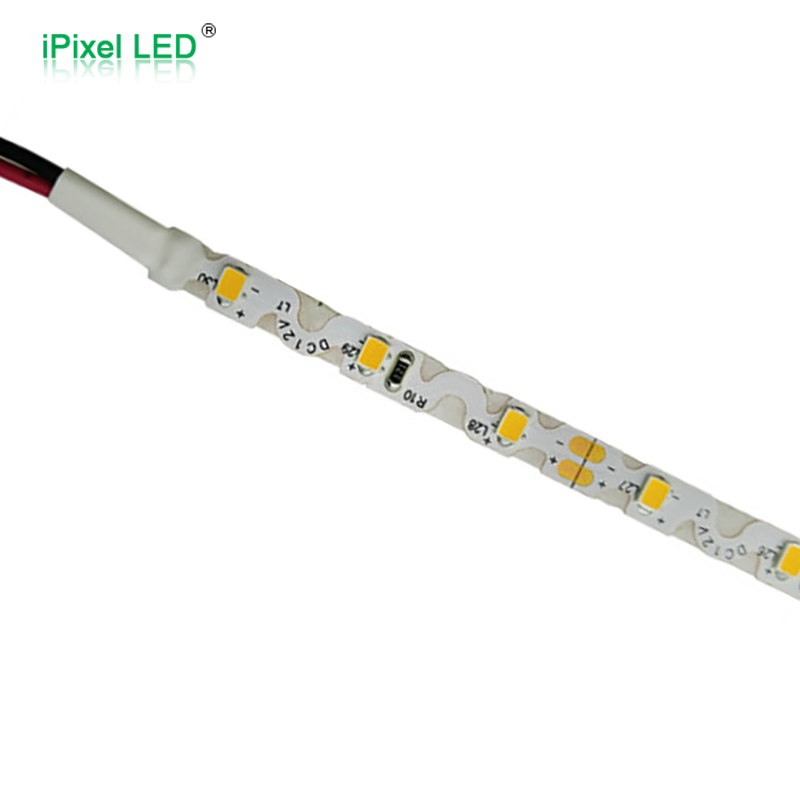

S shape(zigzag) flex led strip with SMD2835 static color 60LEDs/m
6mm PCB width
The biggest advantage is the S shape, which can be bend at any angle
Only available in IP20 non-waterproof version

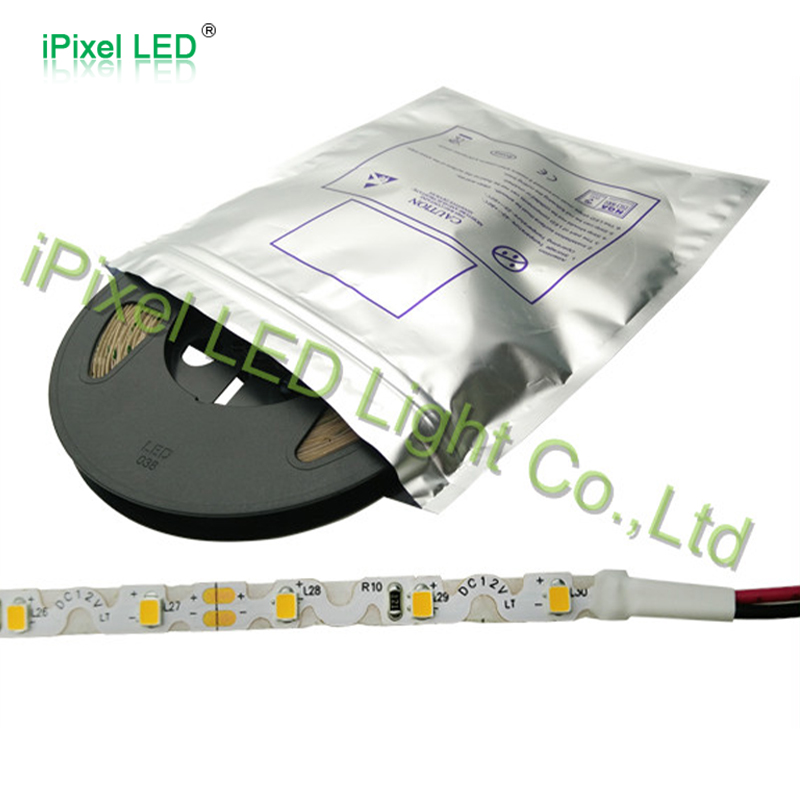

Standard 5m per roll, the length also can be customized
|
PN |
S006060BB1LZ(S) |
S006060BC1LZ(S) |
|
Voltage |
DC12V |
DC24V |
|
LED Type |
SMD 2835 |
SMD 2835 |
| LED Quantity |
60LEDs/m |
60LEDs/m |
|
CCT |
3000K/4000K/6500K |
3000K/4000K/6500K |
|
Lumens |
515lm/m |
515lm/m |
|
Dimension |
5000*6mm |
5000*6mm |
| PCB Color | White |
White |
|
Power |
4.8W/m |
4.8W/m |
|
CRI |
≥90RA |
≥90RA |
| O.T | -25℃ ~ 60℃ |
-25℃ ~ 60℃ |
Dimension (unit:mm/in)
IP Rate
