Description

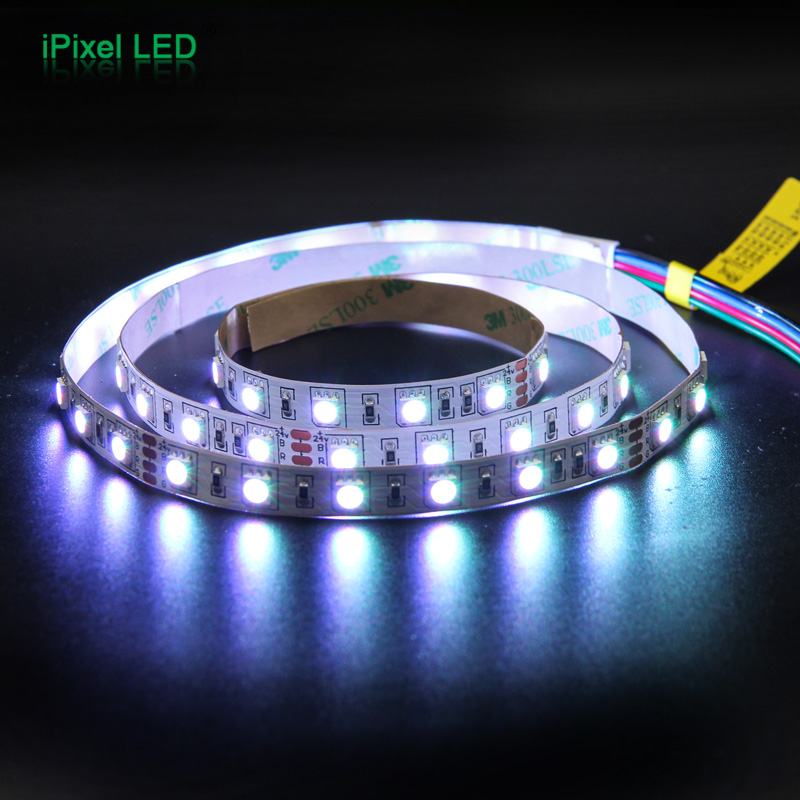

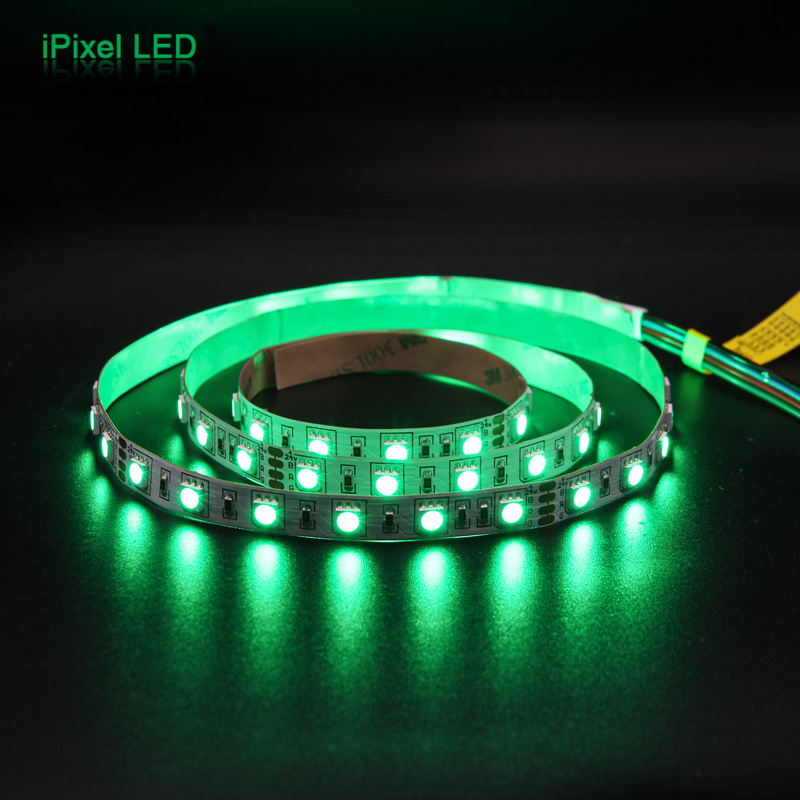

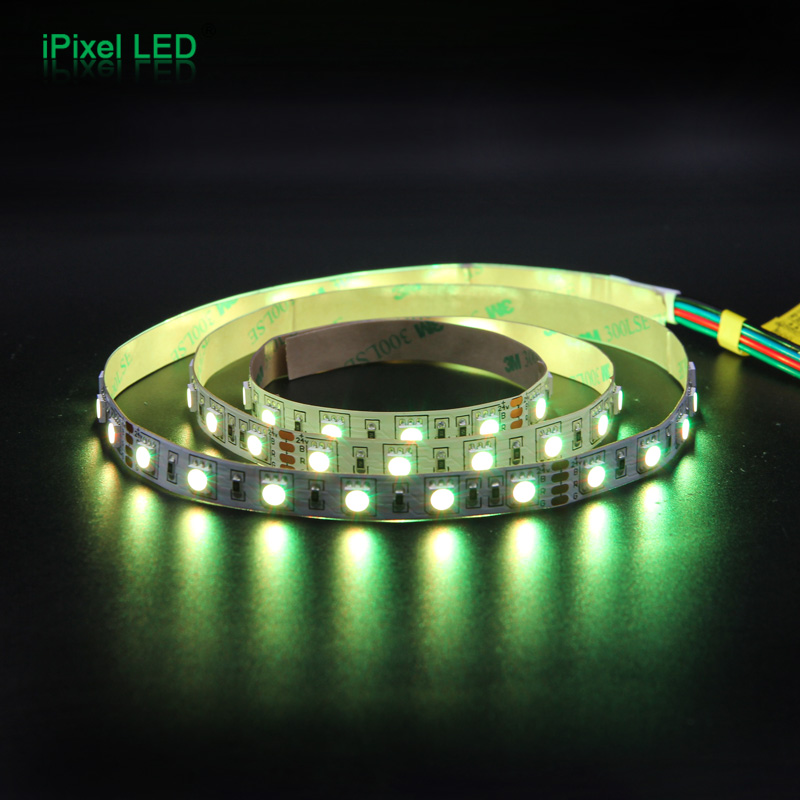

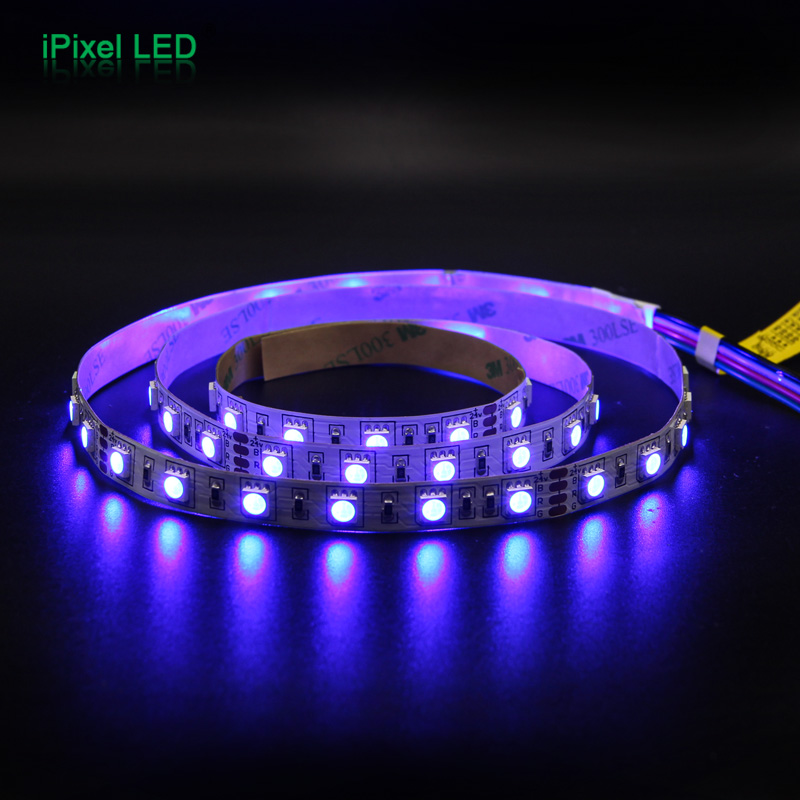

This is a PWM control RGB color LED strip without Pixel
60pcs SMD RGB 5050 LEDs per meter, 5meters/reel, 10mm PCB width
The cutting unit length is 50mm(12V), or 100mm(24V) per section
The PCB is made by 2 Ounce thick copper

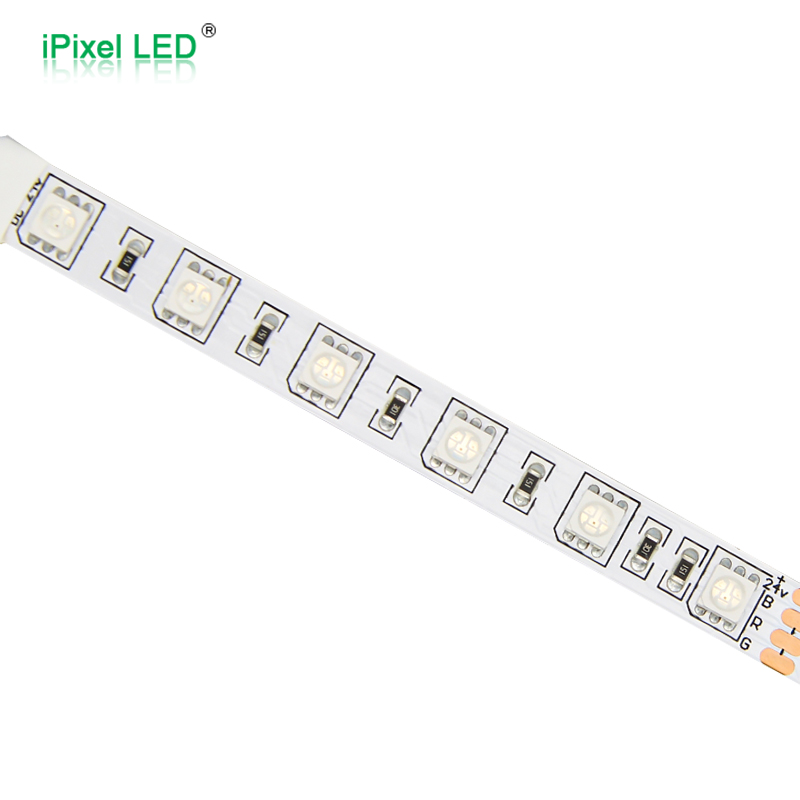

All soldering Pads are very large, allowing you to easily cut and reconnect
DC12/24V constant voltage operation
Both ends have 4pin bare wires for powering
3M tape attached on backside of FPC
3 different waterproof types IP64, IP65, IP68

|
PN |
S010060CB3PZ |
S010060CC3PZ |
|
Voltage |
DC12V |
DC24V |
|
LED Type |
SMD 5050 |
SMD 5050 |
| LED Quantity |
60LEDs/m |
60LEDs/m |
| Color | RGB |
RGB |
|
Dimension |
5000*10mm |
5000*10mm |
|
Cutting unit |
50mm |
100mm |
| PCB Color | White |
White |
|
Power |
14.4W/m |
14.4W/m |
|
Protocol |
PWM |
PWM |
| O.T | -25 - 60℃ |
-25 - 60℃ |

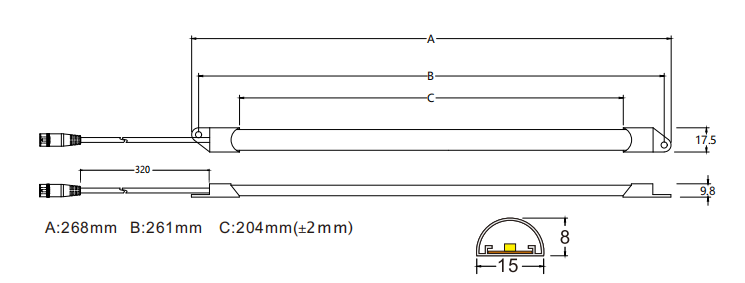

Dimension (unit:mm)

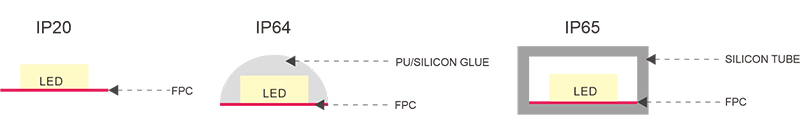

IP Rate
