Description

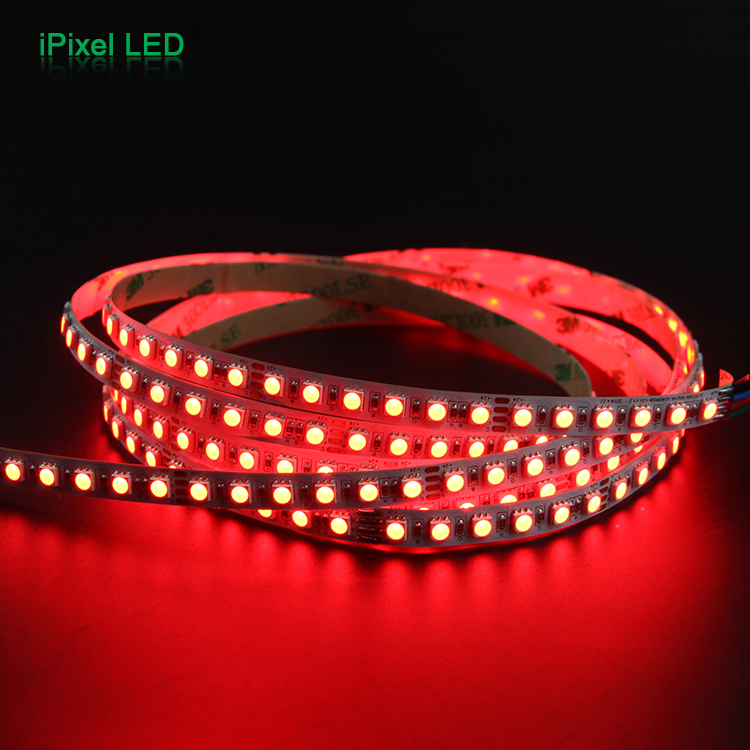

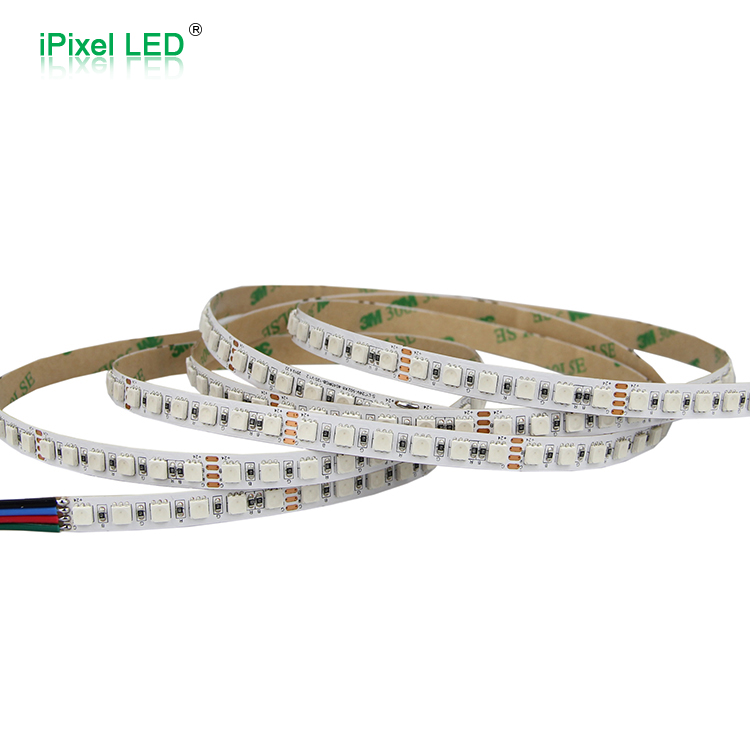

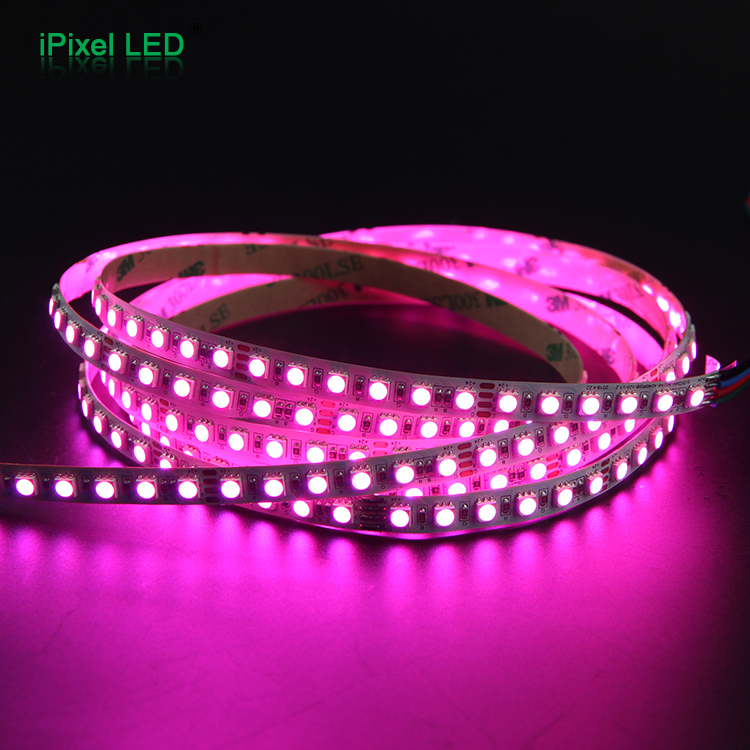

This is a PWM control RGB color LED strip without Pixel
120pcs SMD RGB LED per meter, 5meters/reel, 8mm PCB width
The cutting unit length is 25mm (12V), 50mm (24V)
The PCB is made by 2 Ounce thick copper
All soldering Pads are very large, allowing you to easily cut andreconnect
DC12/24V constant voltage operation

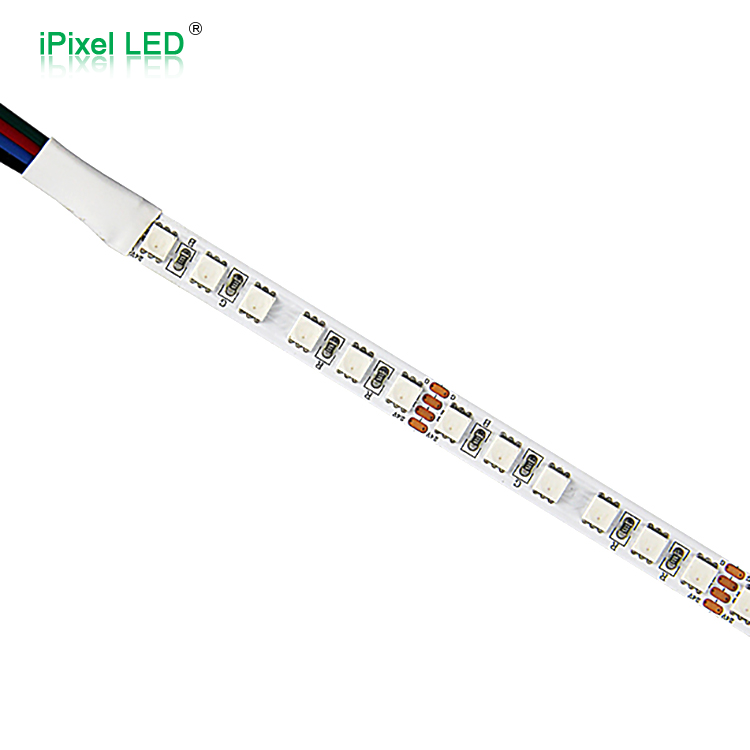

Both ends have 4pin bare wires for powering
3M tape attached on backside of FPC
3 different waterproof types IP64, IP65, IP67

|
PN |
S008120TB3PZ |
S008120TC3PZ |
|
Voltage |
DC12V |
DC24V |
|
LED Type |
4040 RGB |
4040 RGB |
| LED Quantity |
120LEDs/m |
120LEDs/m |
|
CCT |
RGB |
RGB |
|
Dimension |
5000*8mm |
5000*8mm |
|
Cutting unit |
25mm |
50mm |
| PCB Color | White |
White |
|
Power |
14.4W/m |
27W/m |
|
Protocol |
PWM |
PWM |
| O.T | -25 - 60℃ |
-25 - 60℃ |
Dimension (unit:mm)

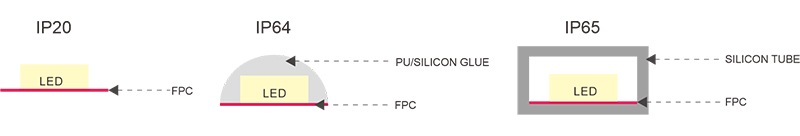

IP Rate
