Description

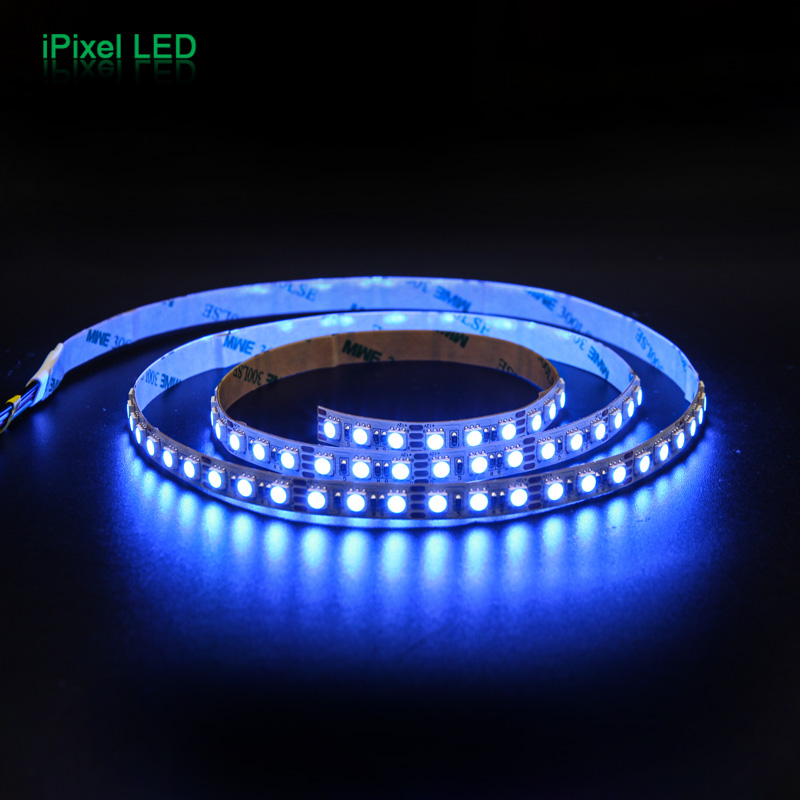

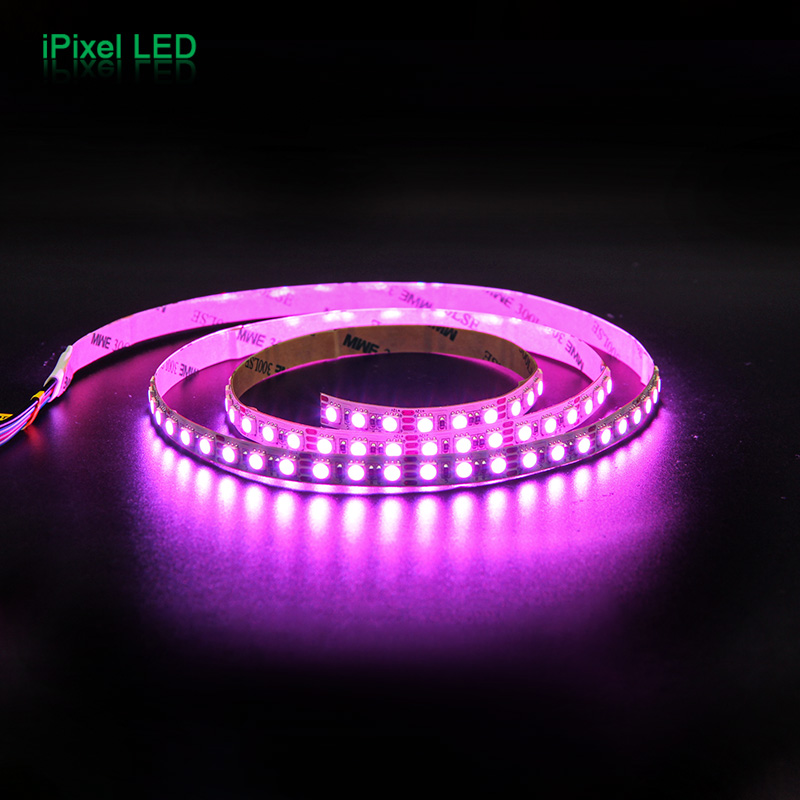

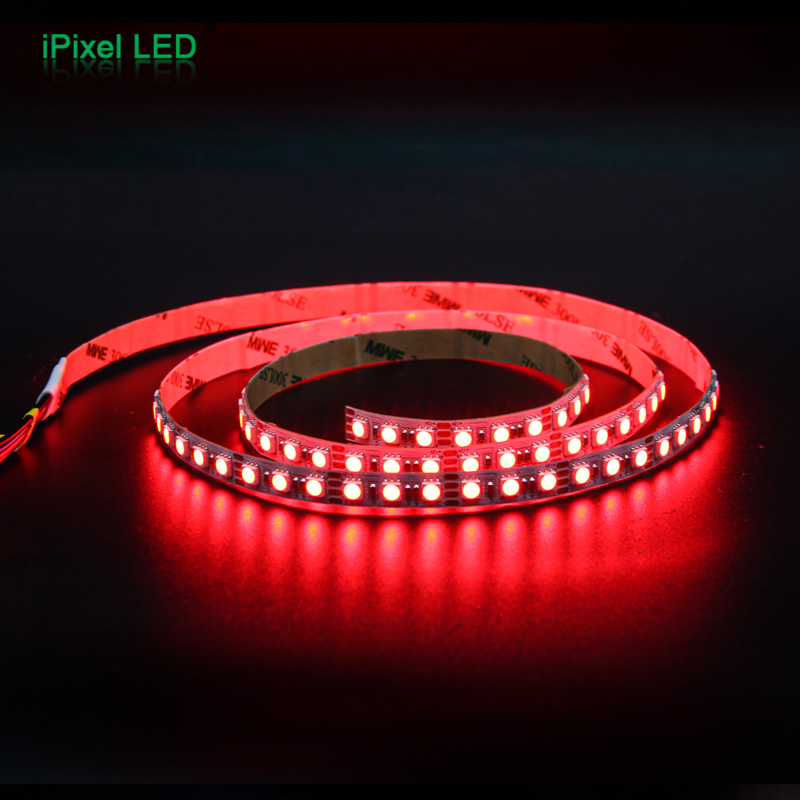

This is a PWM control RGB color LED strip without Pixel
96pcs SMD 4040 RGB LED per meter
5meters/reel, 8mm PCB width
DC12/24V constant voltage operation
Both ends have 4pin bare wires for powering
3M tape attached on backside of FPC
|
PN |
S008096TB3PZ |
S008096TC3PZ |
|
Voltage |
DC12V |
DC24V |
|
LED Type |
SMD 4040 |
SMD 4040 |
| LED Quantity |
96LEDs/m |
96LEDs/m |
| Color | RGB |
RGB |
|
Dimension |
5000*8mm |
5000*8mm |
|
Cutting unit |
31.25mm |
62.5mm |
| Lumen/m | R:159 G:440 B:96lm |
R:159 G:440 B:96lm |
|
Power |
14.4W/m |
14.4W/m |
|
Protocol |
PWM |
PWM |
| O.T | -25℃ ~60℃ |
-25℃ ~60℃ |
Dimension (unit:mm)
IP Rate
