Description

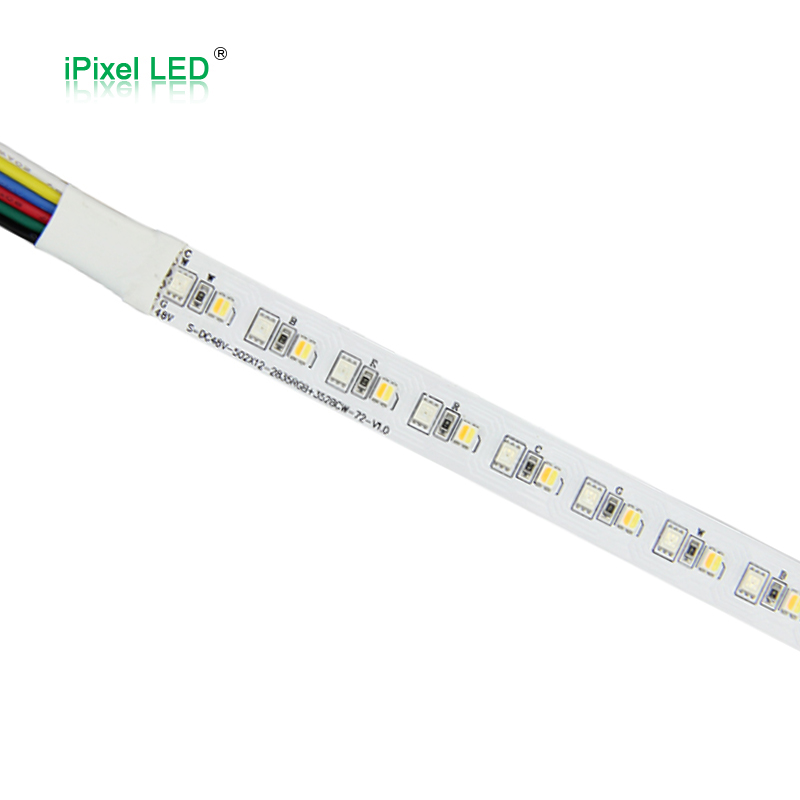

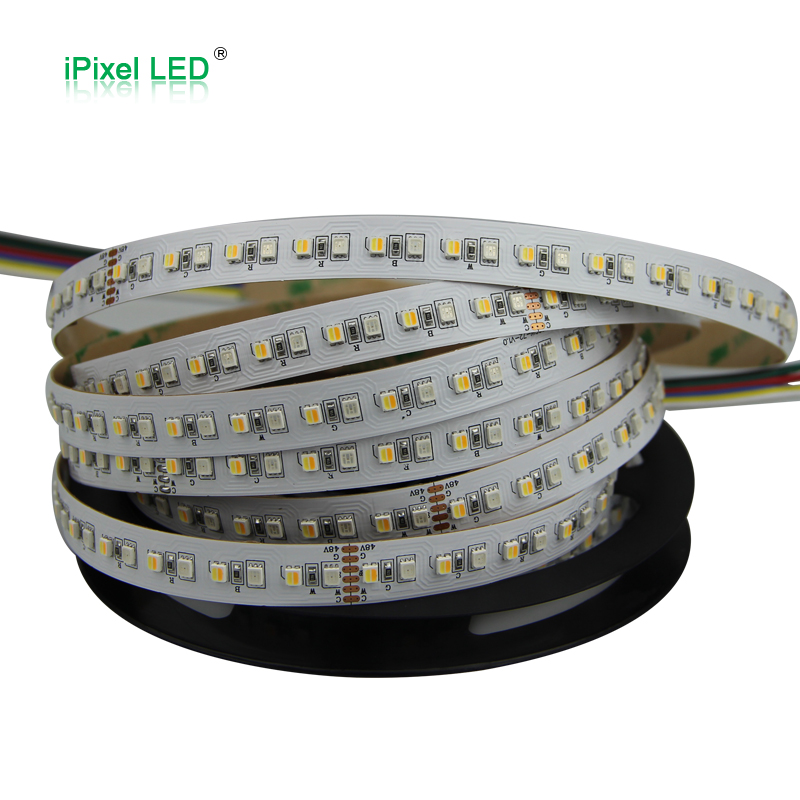

This is a PWM control RGBW color LED strip without Pixel
72pcs SMD2835 RGB + 72pcs SMD3528 WW per meter
The cutting unit length is 166.66mm(48V) per section
12mm PCB, 3 Ounce copper
All soldering Pads are very large, allowing you to easily cut and reconnect
Both ends have 6pin bare wires for powering
3M tape attached on backside of FPC
|
PN |
S012144BJ5PZ |
|
Voltage |
DC48V |
|
LED Type |
SMD 2835RGB+3528WW |
| LED Quantity |
144LEDs/m |
| Color | RGB+WW:3000K+CW:6500K |
|
Dimension |
5000*12mm |
|
Cutting unit |
166.66mm |
| Lumen/m | R:59G:230 B:47 W:230 W:220lm |
|
Power |
26W/m |
|
Protocol |
PWM |
| O.T | -25 - 60℃ |
Dimension (unit:mm)
IP Rate
