Description

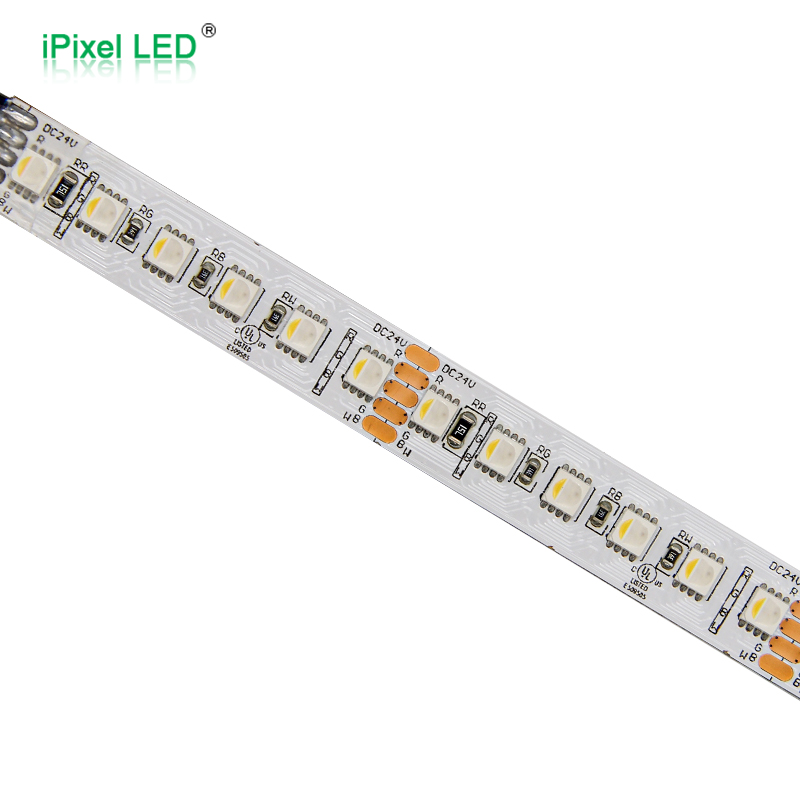

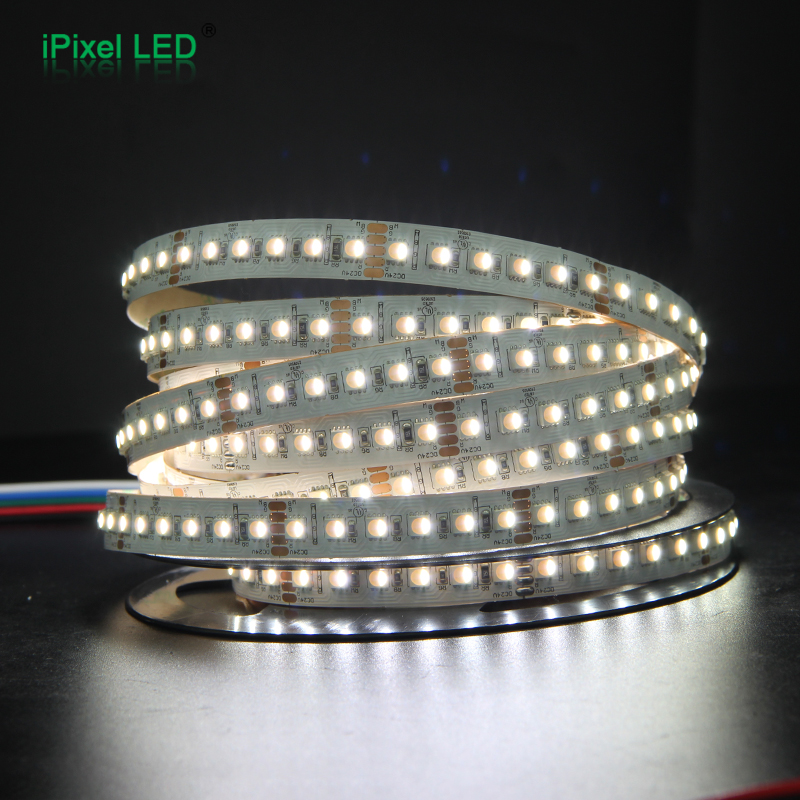

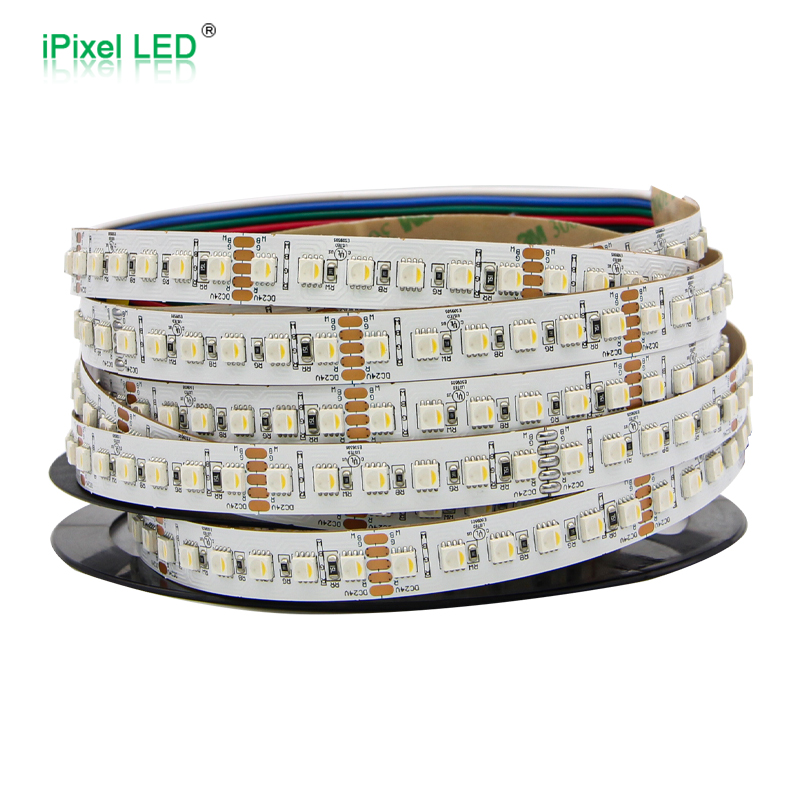

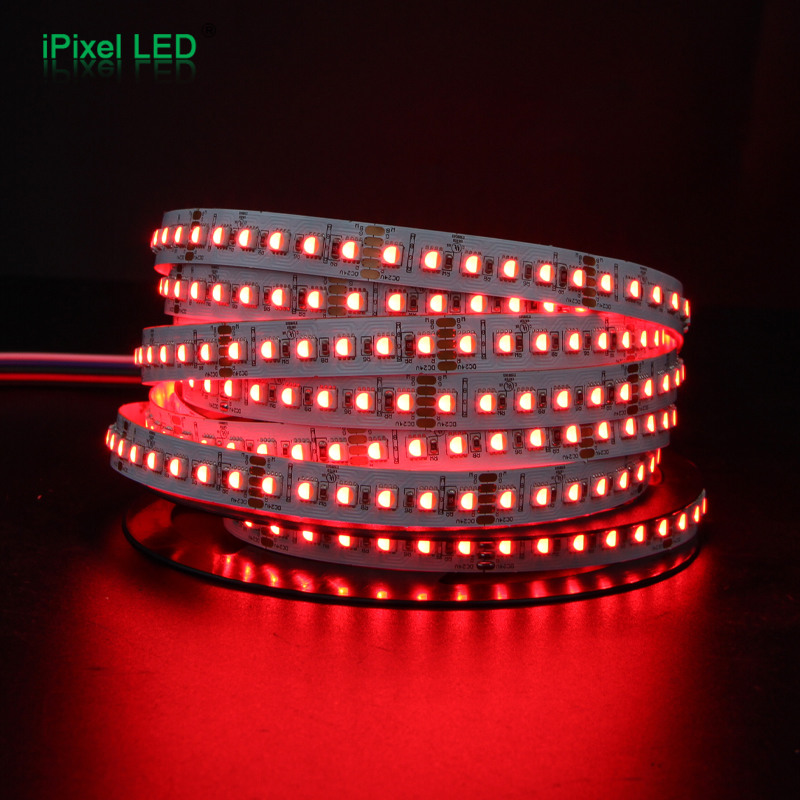

This is a PWM control RGBW color LED strip without Pixel
120pcs SMD RGB 4040 LEDs per meter, 5meters/reel
The cutting unit length is 50mm(24V) per section
The PCB is 3 Ounce thick copper
Both ends have 5pin bare wires for powering
3M tape attached on backside of FPC
Product Parameter
|
PN |
S012120TC4PZ |
|
Voltage |
DC24V |
|
LED Type |
4040 RGB |
| LED Quantity |
120LEDs/m |
|
CCT |
RGB+W:3000K/4000K/6500K |
|
Dimension |
5000*12mm |
|
Cutting unit |
50mm |
| PCB Color | White |
|
Power |
24W/m |
|
Protocol |
PWM |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
