Home > LED Flex > RGBW >   S shape 5050 RGBW led strip 48LEDs/M DC12V/DC24V

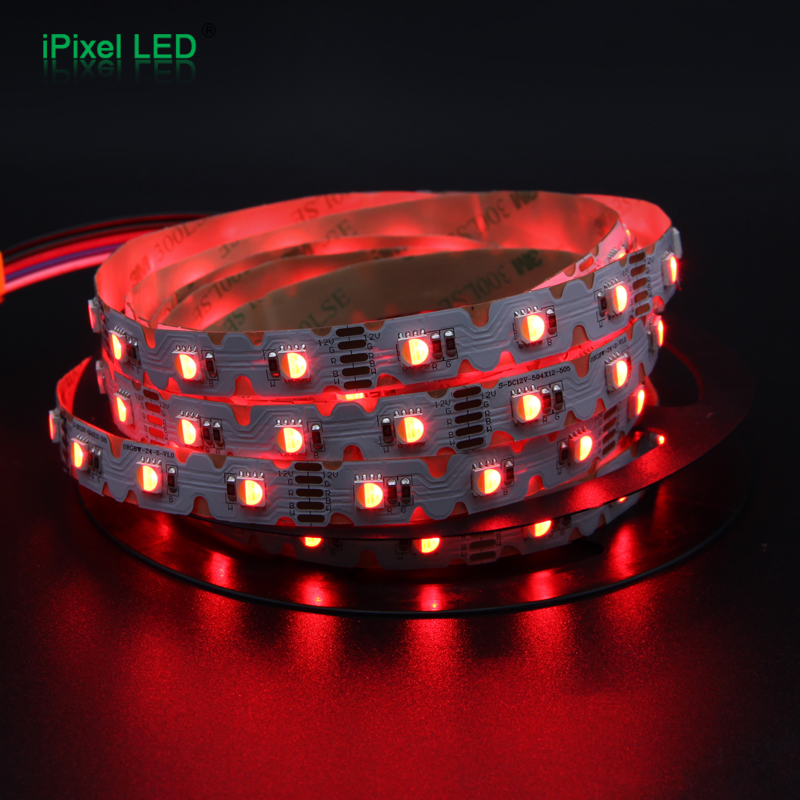

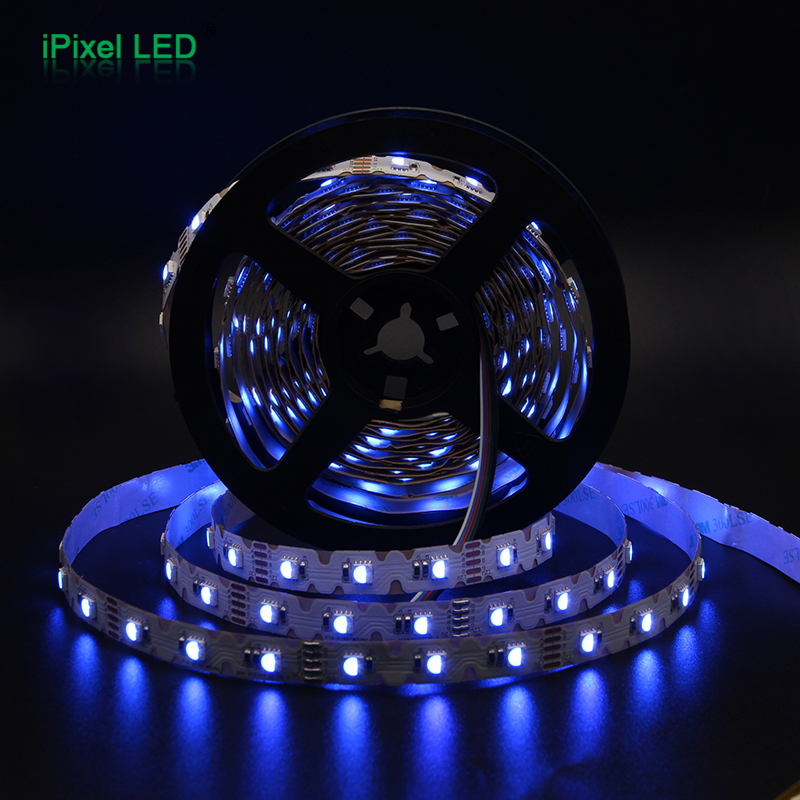

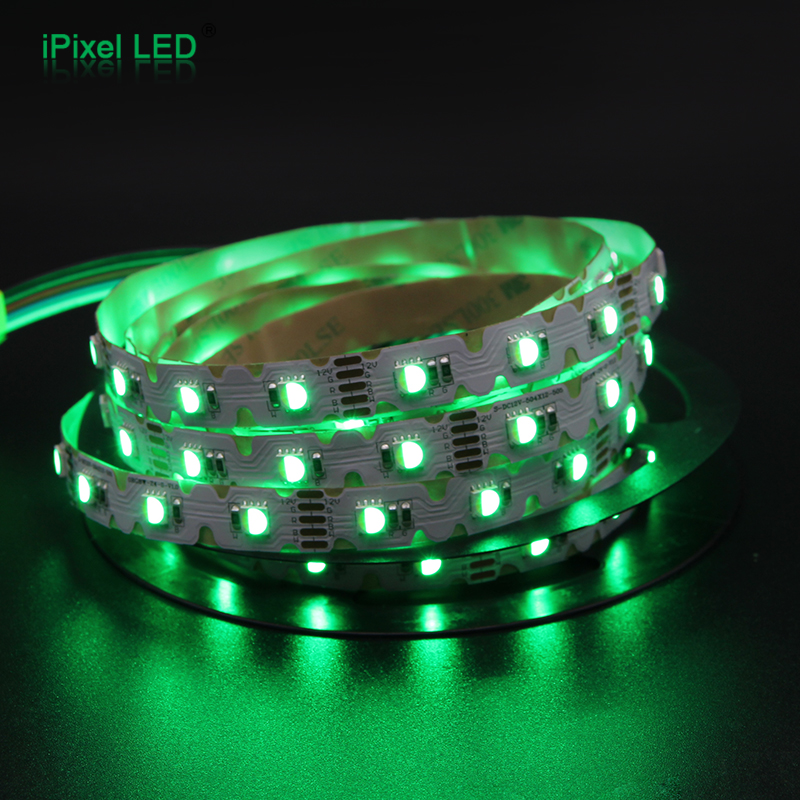

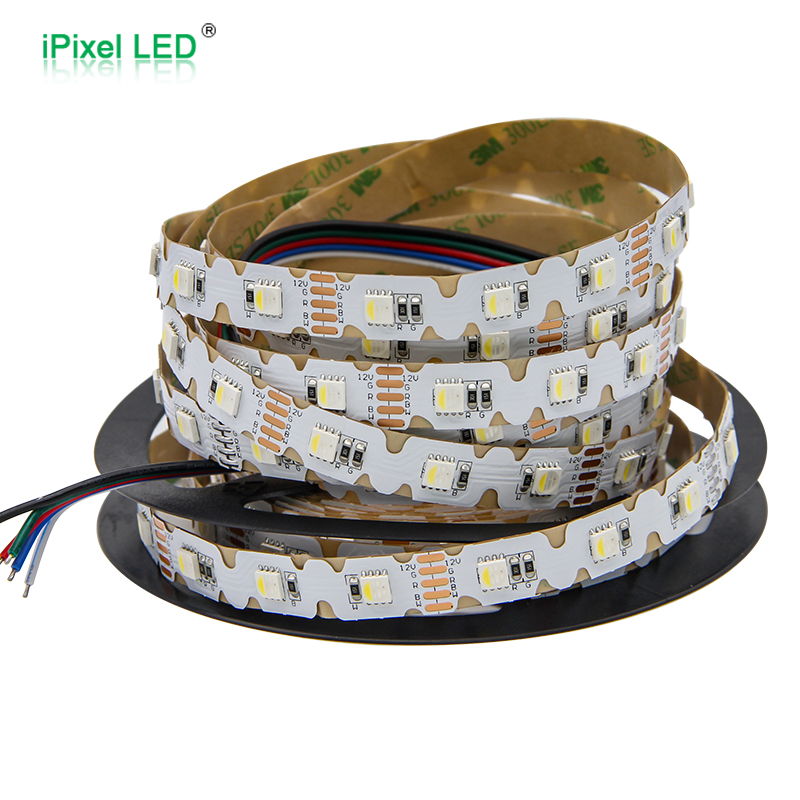

S shape 5050 RGBW led strip 48LEDs/M DC12V/DC24V

Description

S shape(zigzag) flex led strip with SMD5050 RGBW 48LEDs/m
The biggest advantage is the S shape, which can be bend at any angle
Only available in IP20 non-waterproof version

Standard 5m per roll, the length also can be customized



Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
      S012048CB4PZ(S)
  S012048CC4PZ(S)
    Voltage
      DC12V
  DC24V
    Power
      15W/m
  15W/m
    SMD Type
      SMD 5050
  SMD 5050
    LED Quantity      48LEDs/m
  48LEDs/m
    Color
      RGBW:3000K/4000K/6500K
  RGBW:3000K/4000K/6500K
    Dimension
      5000*12mm
  5000*12mm
    Wavelength
      R:620-625 G:520-525 B:460-465nm
  R:620-625 G:520-525 B:460-465nm
    Lumens/m
      R:120 G: 282 B:55 W:409lm
  R:120 G: 282 B:55 W:409lm
    Minimum Cutting Length
      62.5mm/3LED  125mm/6LED
    IP Rate      IP20   IP20

Dimension (unit:mm/in)
