Description

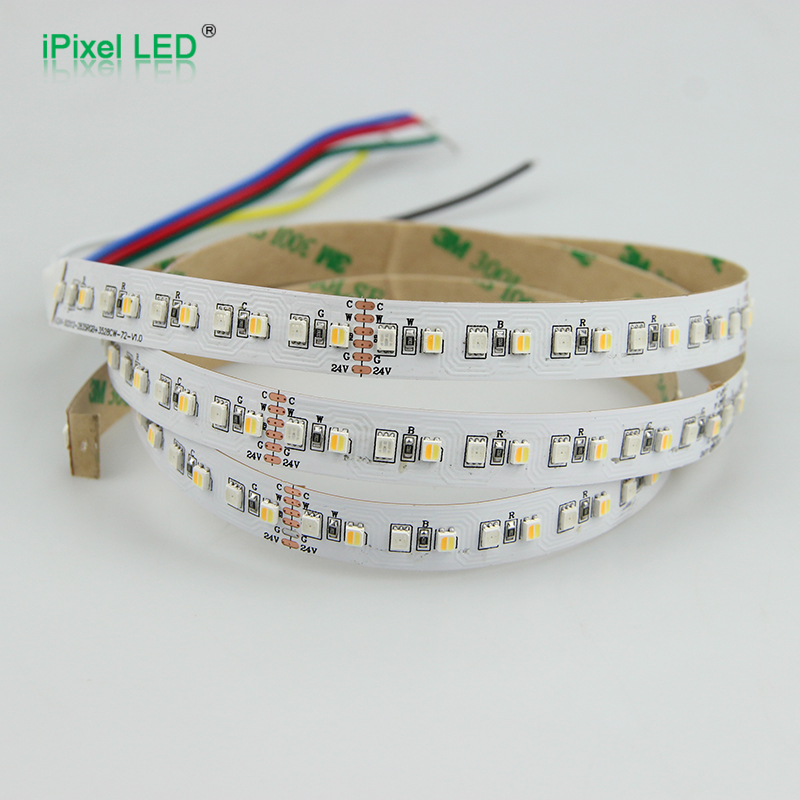

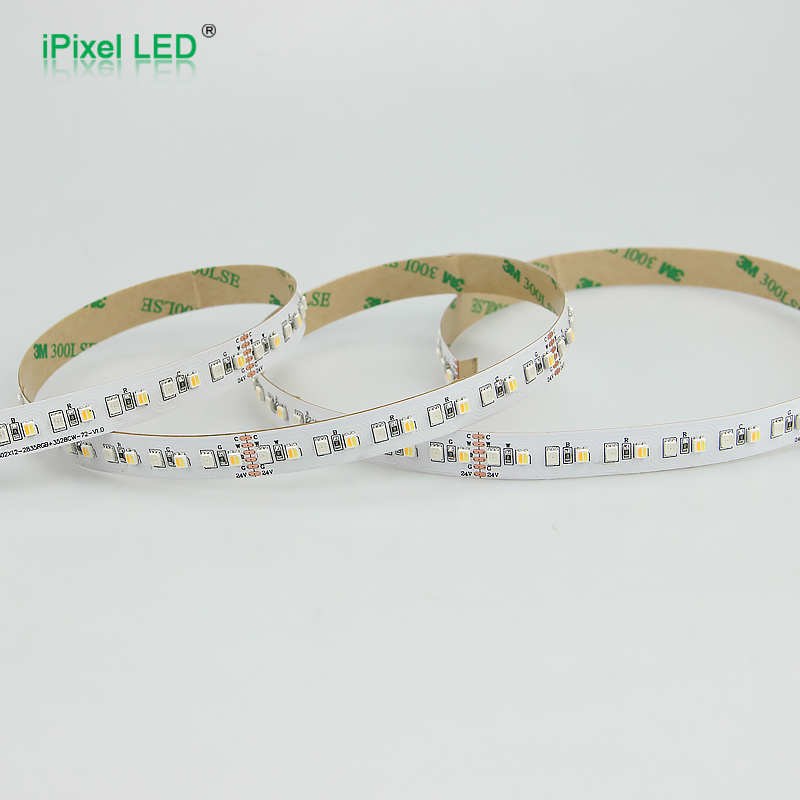

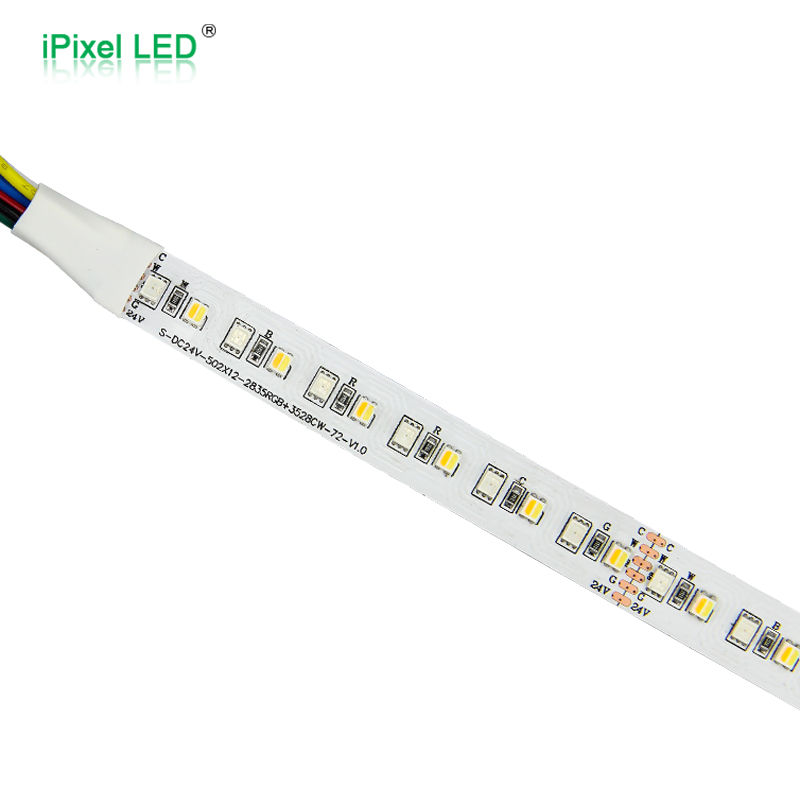

This led strip with 72pcs 2835 RGB + 72pcs 3528
dual white CCT LED chips, 144LEDs/m
You can use PWM controller to control it
The input voltage is DC24V
Flexible PCB, the FPCB color is white
The FPCB width is 12mm, 1 + 2 Oz copper
Standard 5M/roll, length can be customized
|
PN |
S012144AC5PZ |
|
Voltage |
DC24V |
|
LED Type |
SMD 2835RGB+3528WW |
| LED Quantity |
144LEDs/m |
| Color | RGB+W:6500K+W:3000K |
|
Dimension |
5000*12mm |
|
Cutting unit |
83.3mm |
|
Wavelength |
R/G/B/W:3000K/4000K/6500K |
|
Luminance/M |
Ｒ:100 Ｇ:306 Ｂ:67 W:370 W380lm |
| Materiar | FPC |
|
Power |
26W/m |
|
Protocol |
PWM |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
