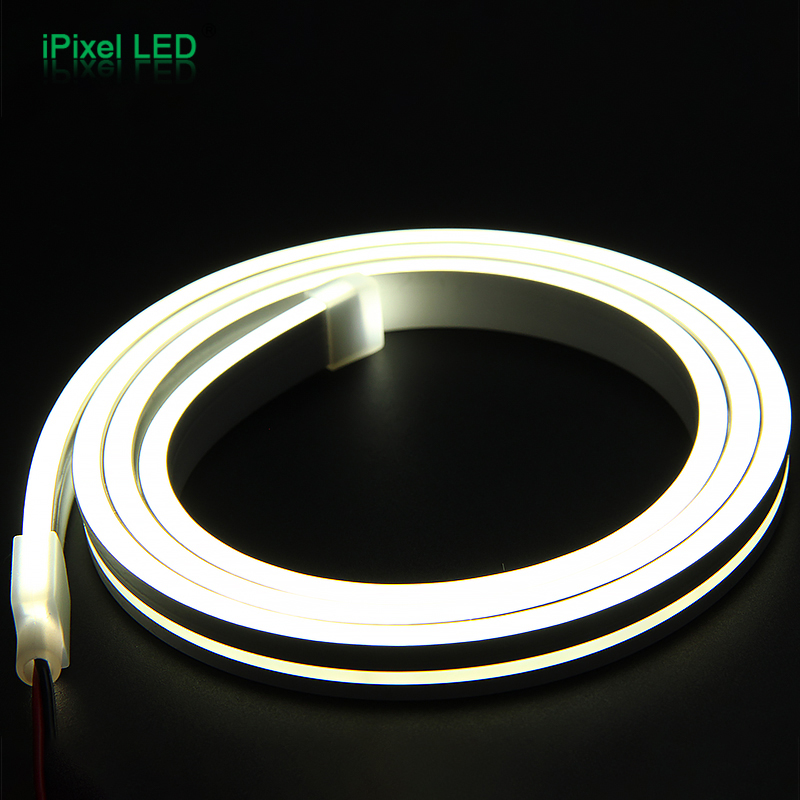

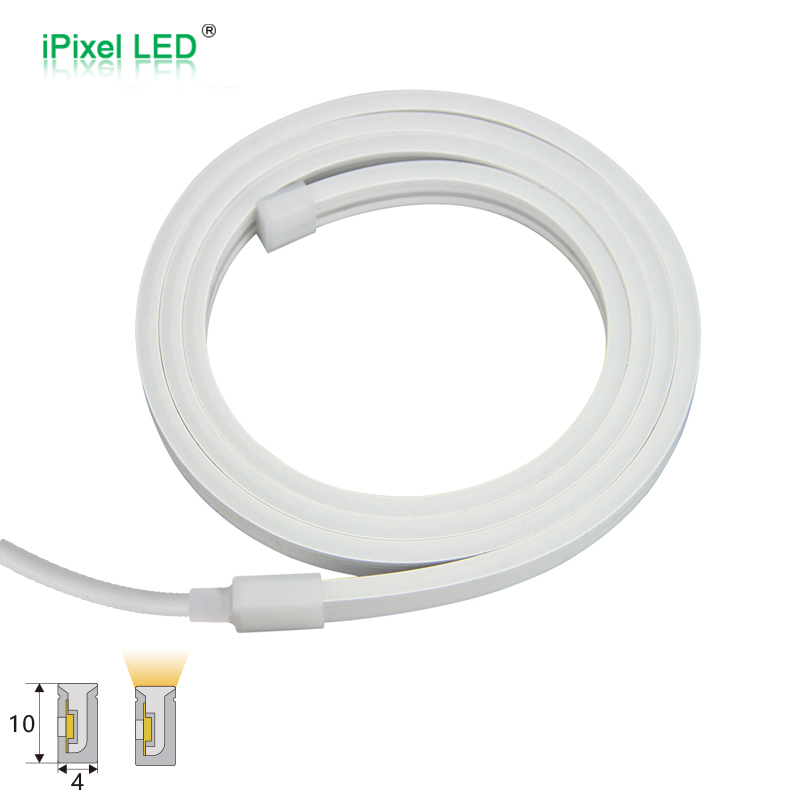

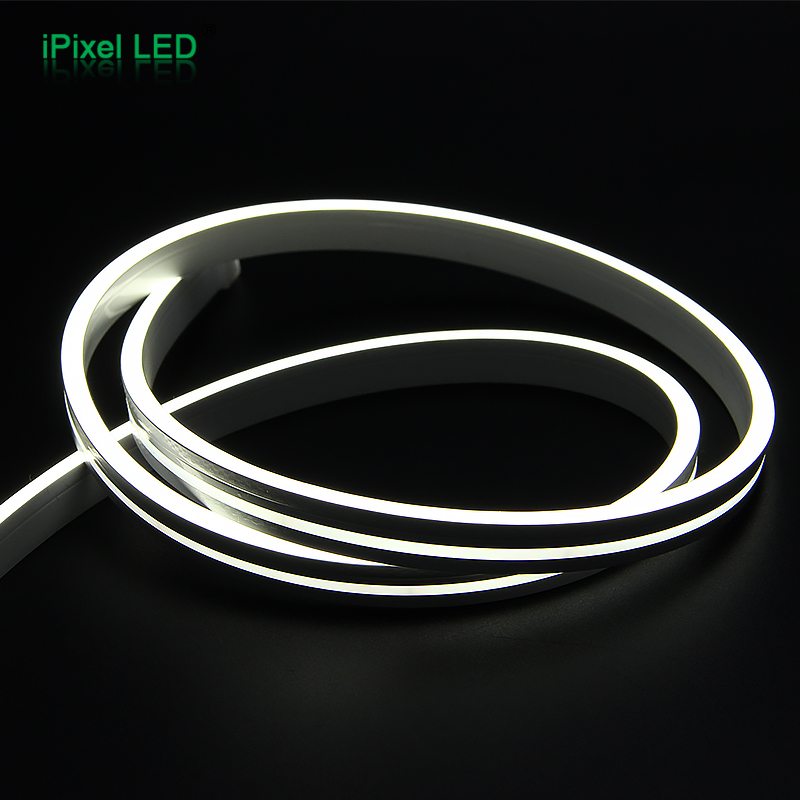

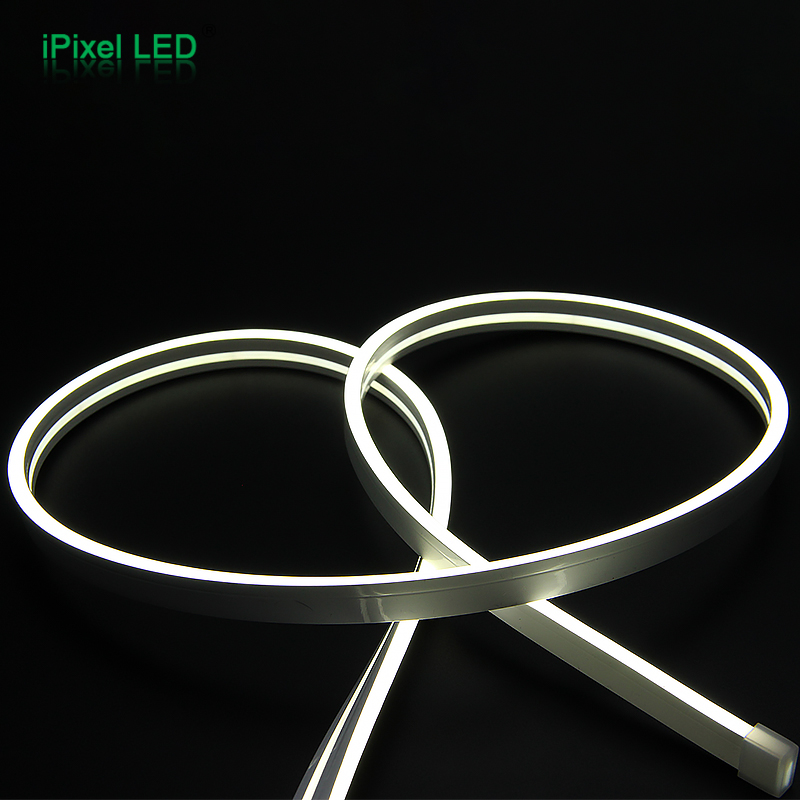

4x10mm single color side emitting led neon strip DC12V/DC24V

Description
This neon strip is side view with a translucent silicone rubber as a diffuser, light uniform and no spot.
It is designed to be bent side to side with light projecting upwards.
This silicone rubber is anti-UV, anti-yellowing, anti-aging, environmental protection, non-toxic, and very soft.
Use highlighted 2835 LED chips, it's long life, low light decay, and good color consistency.
Standard length is 5M/roll, length can be customized, there are cutting marks on the side.
IP65 waterproof for outdoor use
Each roll includes 10pcs alu clips for installation (2pcs/m)

Share to

Specification

Product Parameter

PN	Ｎ004120BB1LZ	Ｎ004120BC1LZ
Voltage	DC12V	DC24V
Cutting Length	25mm	50mm
LED Quantity	120LEDs/m	120LEDs/m
SMD Type	SMD2835	SMD2835
Color	3000K/4000K/6500K	3000K/4000K/6500K
Power	5W/m	5W/m
Lumens/m	W:210lm	W:210lm
Beam Angle	120°	120°
Size (mm)	(5025±15)x4x10mm	(5025±15)x4x10mm
O.T	-25℃ ~ 60℃	-25℃ ~ 60℃

Remarks:
1. The above parameters are tested based on 1M standard products;
2. The luminous flux is allowed to have an error range of ±10%;
3. The above parameters are typical values;
4. The brightness with in 15M is consistent even if one end is powered;
5. Subject to change without prior notice.
6. Length tolerance applies. Actual product dimensions may vary

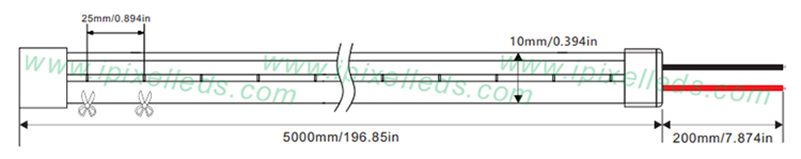

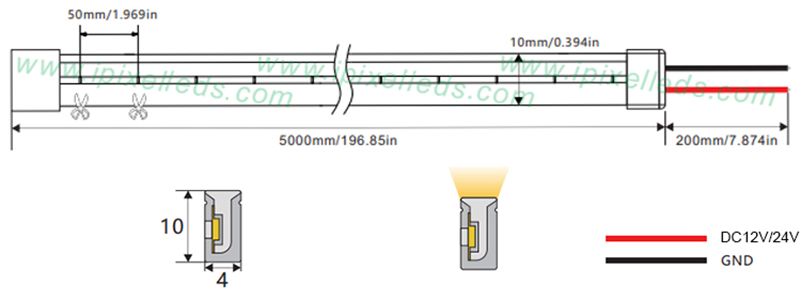

Dimension (unit:mm)

DC12V Type
