6x12mm Single color Mini Side View LED Neon Flex DC5V

Description：

Single color mini Neon Flexible strip made of silicon
material Fire resistance, Anti - UV, Anti - Corrosion and
deformation resistance Very soft and easy to be bend to
make any small sign or LOGO Standard 5 meters/ reel,
Single color Mini size LED Neon Flex 6*12mm DC5V
The cutting unit length is 8.33mm(5V)
section Cutting mark on the side of neon body Waterproof

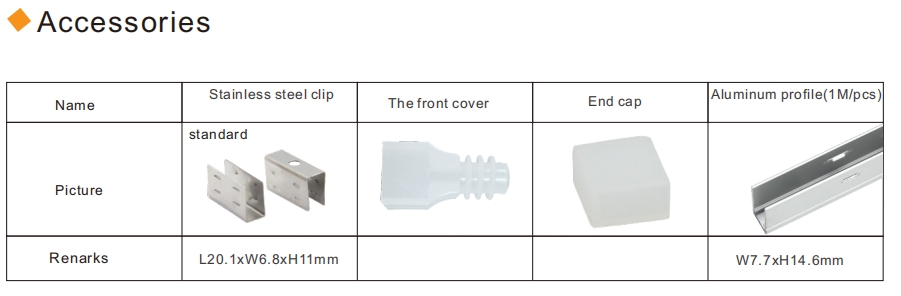

IP65 Rated for outdoor installation Including 10pcs
mounting clips per reel(5M)

Share to

Specification

Product Parameter

PN	N006120BA1LZ
Voltage	DC5V
Cutting Length	8.33mm
LED Quantity	120LEDs/m
SMD Type	SMD2835
CCT	3000K/4000K/6500K
Power	8W/m
Lumens/m	R:70 G:121 B:27 W:215
IP Rate	IP65

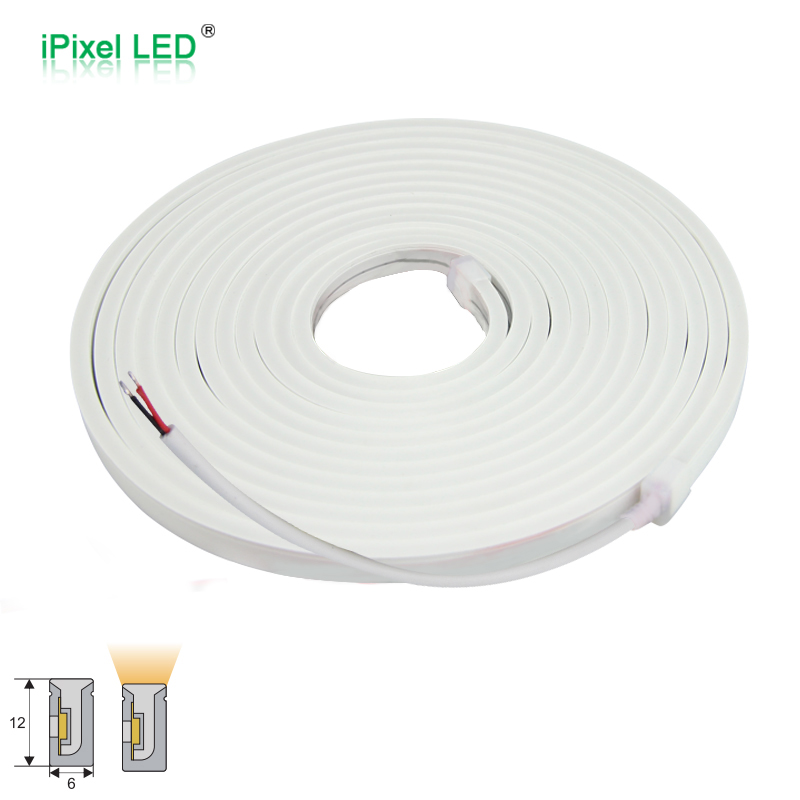

Size (mm)	(5025±15)x6x12mm
Net Weight/Roll	0.45KG/Roll (5m)
O.T	-25℃ ~ 60℃

Remarks:
1. The above parameters are tested based on 1M standard products;
2. The luminous flux is allowed to have an error range of ±10%;
3. The above parameters are typical values;
4. The brightness with in 15M is consistent even if one end is powered;
5. Subject to change without prior notice.
6. Length tolerance applies. Actual product dimensions may vary

Note: Length tolerance applies. Actual product dimensions may vary
