10x20mm digital RGBW Side View LED Neon Flex DC12V

Description
Silicone Neon LED flex made by extrusion, white color body, diffused color on thetop side.
Without light spot, Anti-UV and salt.
It's bendable within limited semi-diameter.
It's a 4 in 1 RGBW digital LED tape inside, each small section can be cut down refer to the black mark on the side of body.

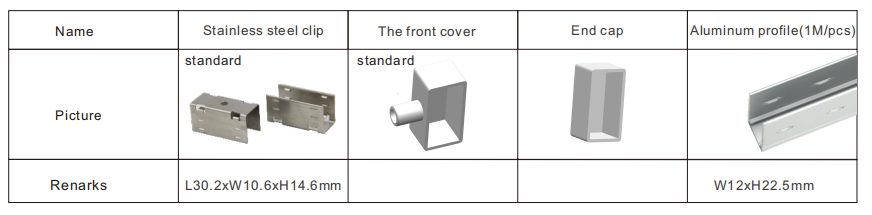

The standard size is 5 meters, including 10pcs mounting clips.
Each roll with a pair of male/female connector.

Share to

Specification

Product Parameter

PN	N010060CB4ST
Voltage	DC12V
LED Type	SMD5050RGBW
LED Quantity	60LEDs/m
Luminance	R:70 G:121 B:27 W:215
CCT	WW:2500-3000K / W:5000-5500K

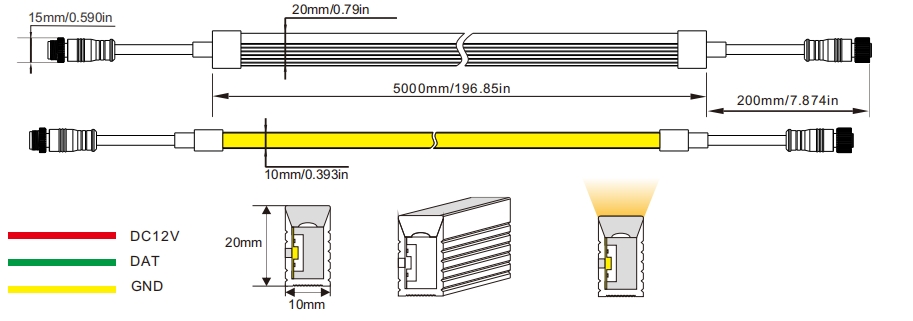

Dimension	(5025±15)1020mm
Lumens/m	1076lm
Cutting unit	50mm
Power	19.2W/m(Max)
Bending Direction	Vertically
O.T	-25℃ ~ 60℃

Remarks:
1. The above parameters are tested based on 1M standard products;
2. The luminous flux is allowed to have an error range of ±10%;
3. The above parameters are typical values;
4. The brightness with in 15M is consistent even if one end is powered;
5. Subject to change without prior notice.
6. Length tolerance applies. Actual product dimensions may vary
