Description

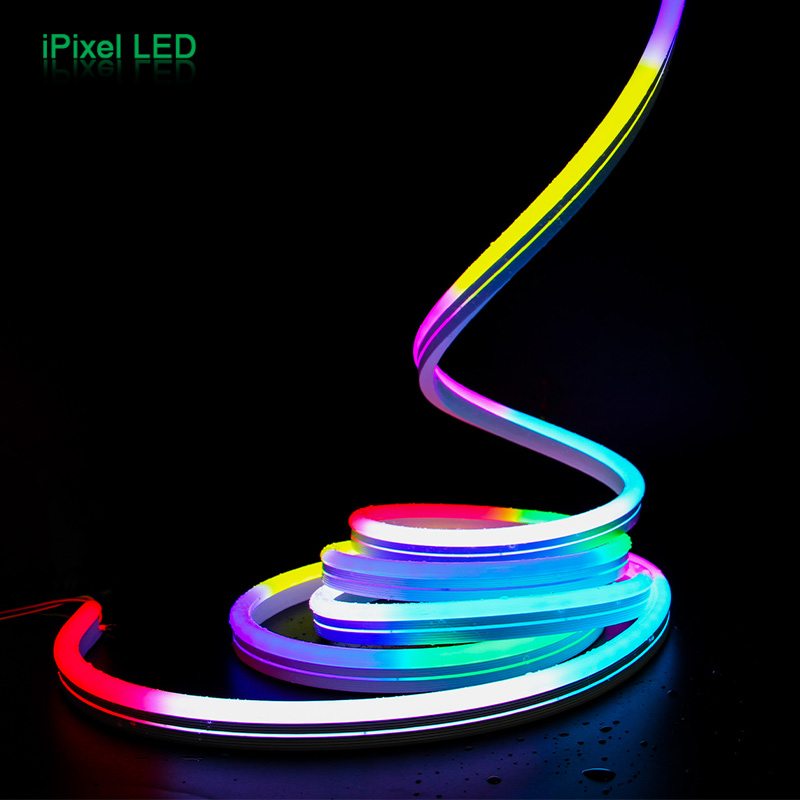

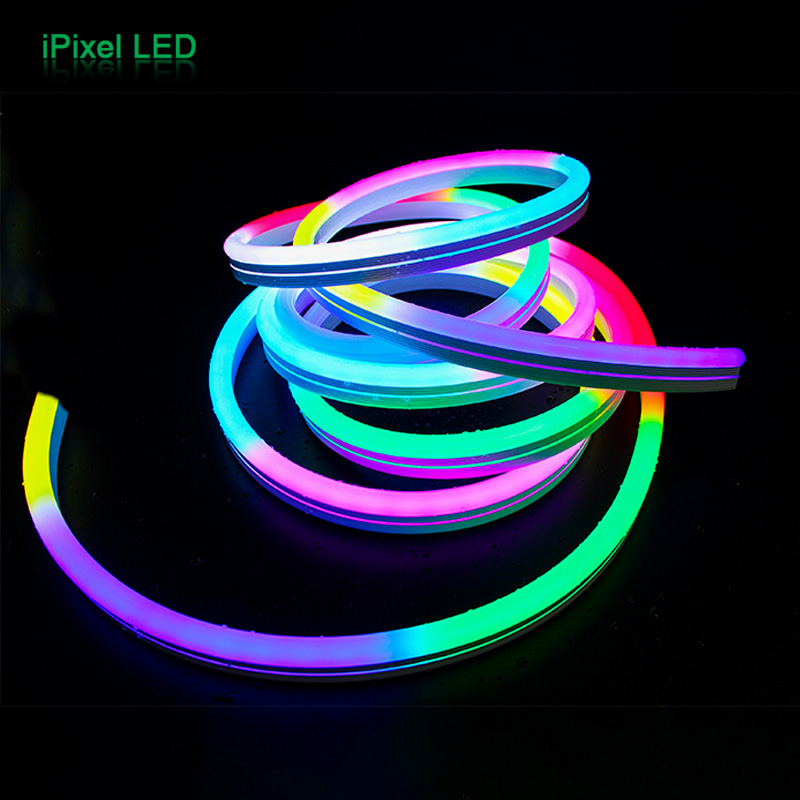

This digital Neon LED is made of Silicon material
Fire resistance, Anti - UV, Anti - Corrosion and deformation resistance
Diffused color without any light spots, Emitting angle 180 Degrees
Standard 5 meters/ reel, but can be customized within 50meters
The cutting unit length is 50mm/12V, 100mm/24V per section
JST SM connector on input and output side, SPI Control
20Pixels/Meter DC12V, 10Pixels/Meter DC24V
Waterproof IP65 Rated for outdoor installation
|
PN |
N012060CB3SF |
N012060CC3SF |
|
Voltage |
DC12V |
DC24V |
|
LED Type |
SMD5050 |
SMD5050 |
|
CCT |
RGB |
RGB |
|

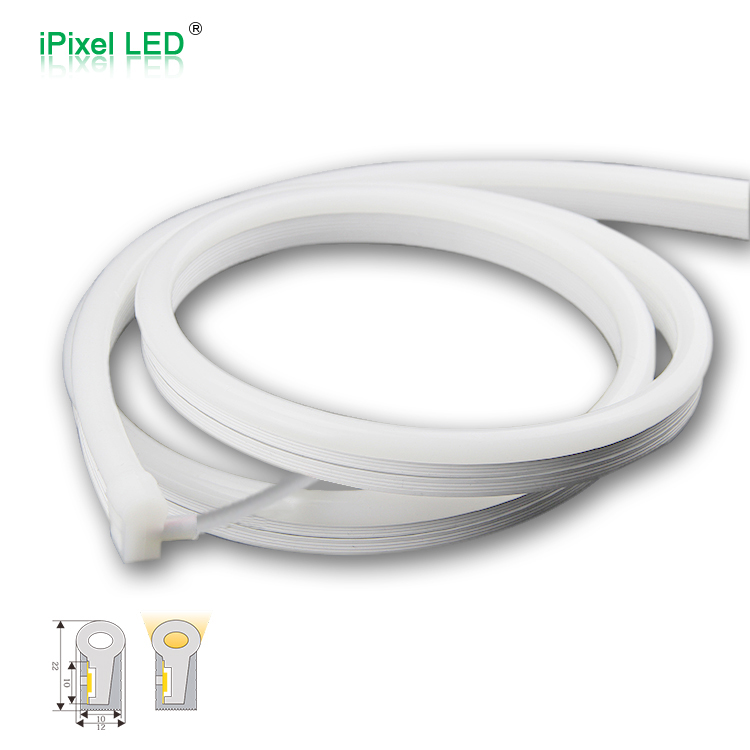

Dimension |
(5025±15)*12*22mm |
(5025±15)*12*22mm |
|
Material |
Silicon |
Silicon |
|
Power |
12 W/m |
12W/m |
|
Pixel/M |
20Pixels-SPI |
10Pixels-SPI |
| O.T | -25℃ ~ 60℃ |
-25℃ ~ 60℃ |
Remarks:
1. The above parameters are tested based on 1M standard products;
2. The luminous flux is allowed to have an error range of ±10%;
3. The above parameters are typical values;
4. The brightness with in 15M is consistent even if one end is powered;
5. Subject to change without prior notice.
6. Length tolerance applies. Actual product dimensions may vary
Note: Length tolerance applies. Actual product dimensions may vary
