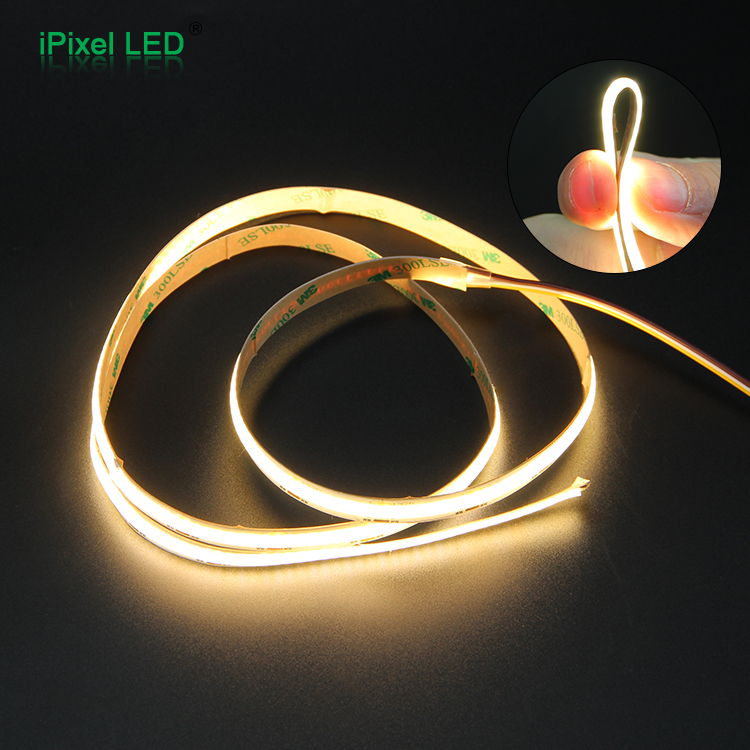

1.This COB led strip is small in size, can be arbitrary bending
2.It with double/dual color temperature and the color temperature can be adjusted through the controller.
3.Using SMD flip chip, high integration, 576 LEDs per meter.
4.Every 27.8mm can be cut, thickened PCB 1 + 2 OZ thick copper.
5.High luminous efficiency, uniform illumination, no spot.
6.This product is suitable for covered channel, Park, Square, Building lighting.
7.Ambient temperature: - 40 ~ 55℃
|
PN |
S010576ZC2PZ |
|
Voltage |
DC24V |
|
SMD Type |
COB |
| LED Quantity |
576LEDs/m |
|
CCT |
2800-3200K+5500-6500K CCT |
|
Dimension |
5000*10 MM |
|
Lumens/m |
WW:1041LM W:1575LM |
| PCB Color | White |
|
Power |
24W/M |
|
CRI |
90 RA |
| O.T | -20℃ ~ 50℃ |

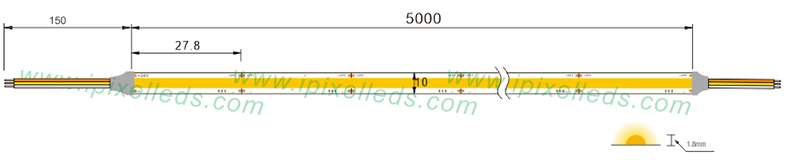

Dimension (unit:mm)

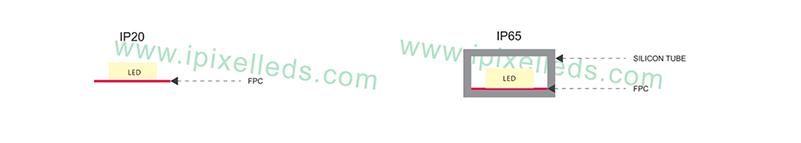

IP Rate
