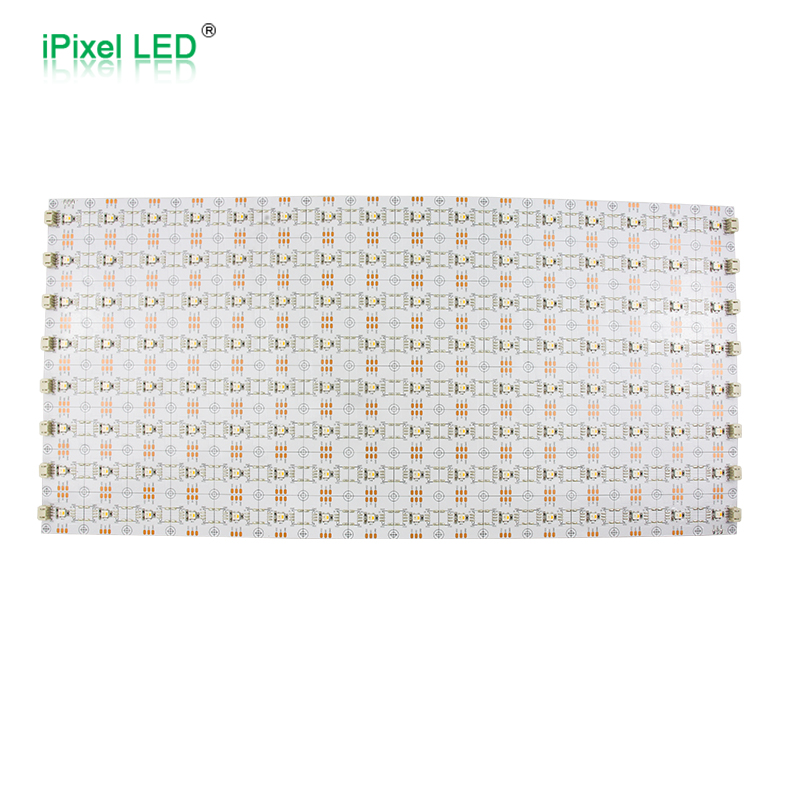

SMD5050 RGBW SK6812 addressable Flexible LED Sheet DC5V

- Flexible LED sheet, 3 Ounce copper, white PCB
- SK6812 IC, each LED can be controlled individually
- There are 2pcs SM connectors distributed on each side of the sheet.
- It is easy to remove or solder more pieces as required. or solder the cable to the Pad directly for power feeding
- There is no pad on backside which allows it could be mounted to a aluminum board without circuit short
- You can stick it as a normal strip by 3M tape or silicon


Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
     M240128CA4SA1
    Voltage
     DC5V
    LED Type
     SMD 5050
    Quantity of LED
     128 leds
    Size
     500*240 MM
    Color
     RGB+W:3000K/4000K/6500K
    Control
     SK6812
    Power
     28 W
    IP
     IP 20
   Color Temperature
     R:103 G:341 B:77 W:718lm
    O.T     -30℃ ~ 45℃

Description

- Flexible LED sheet, 3 Ounce copper, white PCB
- SK6812 IC, each LED can be controlled individually

- There are 2pcs SM connectors distributed on each side of the sheet.

- It is easy to remove or solder more pieces as required. or solder the cable to the Pad directly for power feeding

- There is no pad on backside which allows it could be mounted to a aluminum board without circuit short
- You can stick it as a normal strip by 3M tape or silicon

Dimension (unit:mm)
