Description
-This is a COB LED strip,Super Narrow 160LEDs/m
-The chip mounted on FPC directly,uniform light no hot spot /shadow
-Input voltage is DC5V
-Flexible PCB,the FPCB color is white
-The FPCB width is 2.7mm
-Standard 1M/roll, length can be customized
|
PN |
S003160ZA3SF |
|
Voltage |
DC5V |
|
LED Type |
RGB COB |
| LED Quantity |
160LEDs/m |
|
Beam Angle |
140° |
| Luminance(lm/m) |
R:50 G:110 B:30 |
|
Control |
SPI-WS2811 |
|
Dimension |
1000x2.7mm |
|
Cutting unit |
12.5mm |
| Materiar | FPC |
|
Power |
10W/m |
|
IP Rate |
IP20 |
| O.T | -25℃ ~ 60℃ |

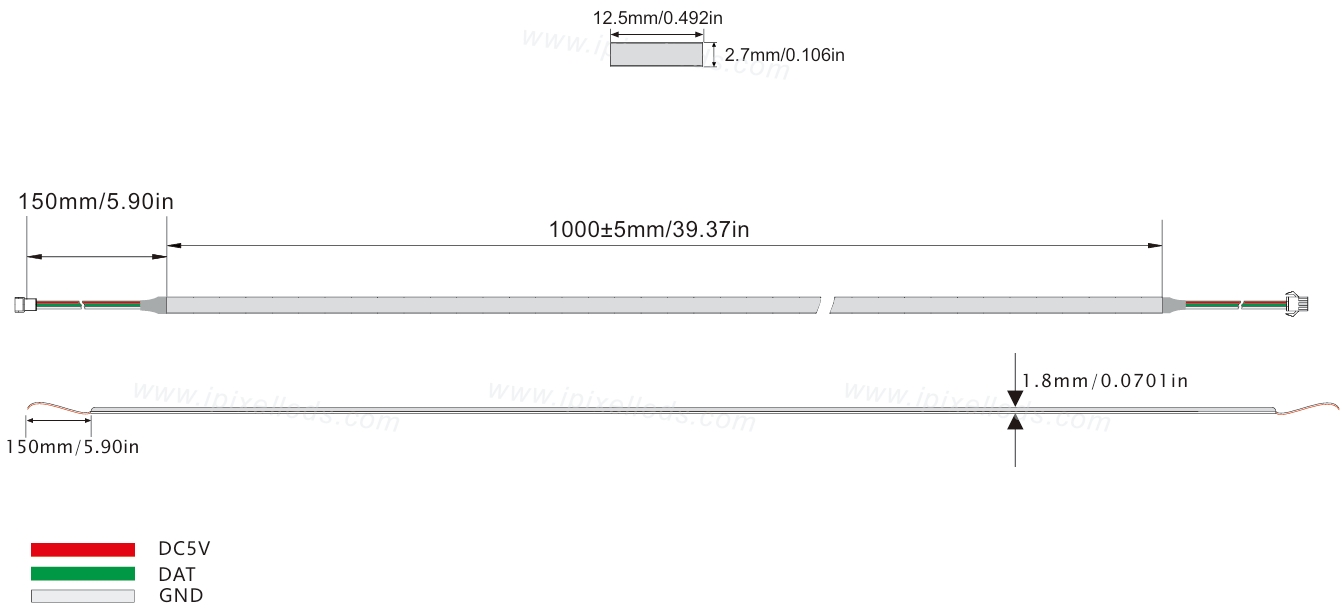

Dimension (unit:mm)
IP Rate
