Description

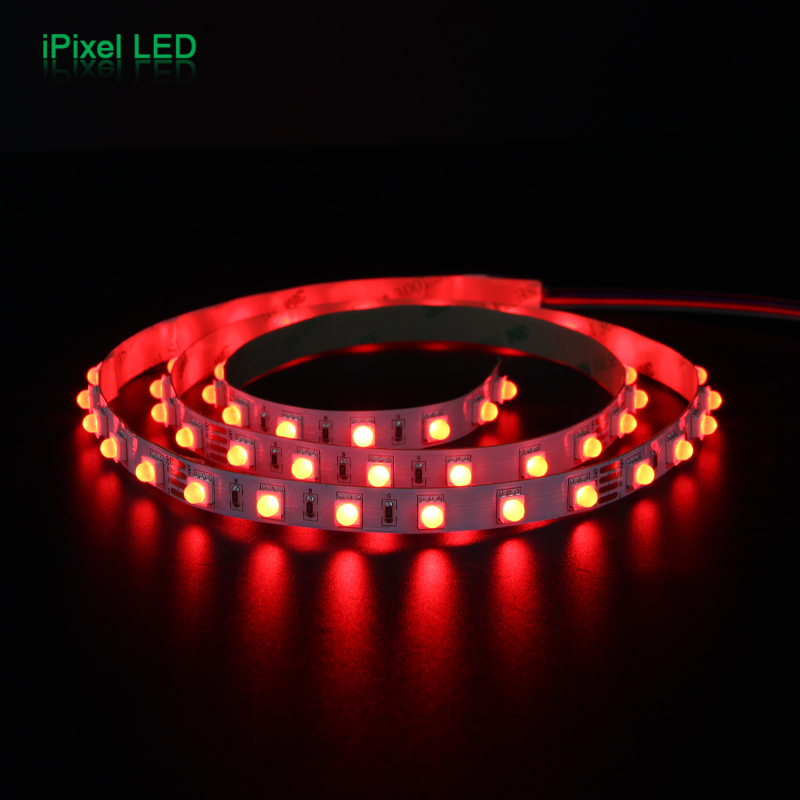

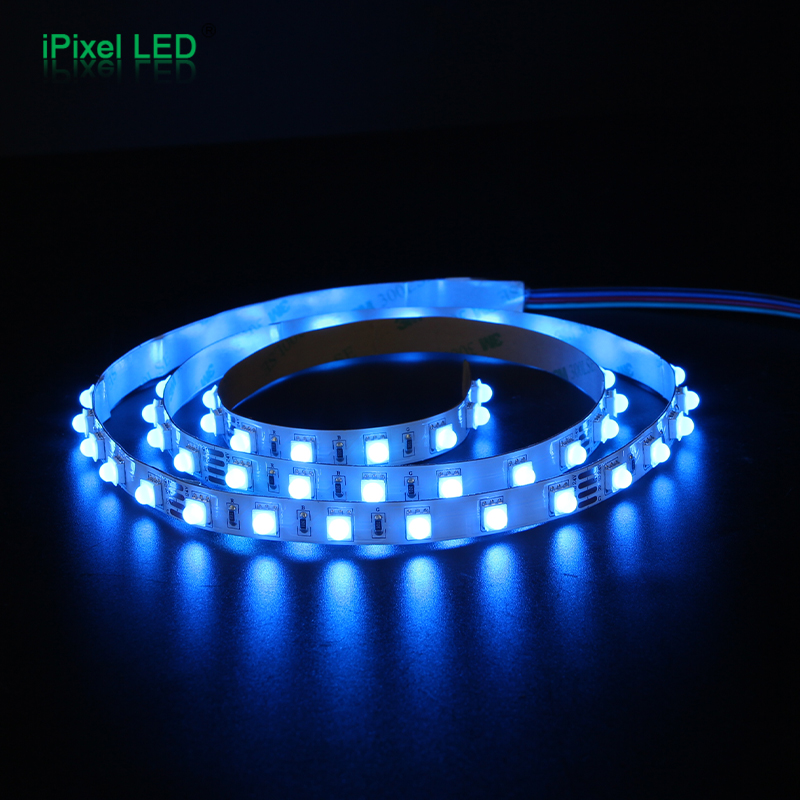

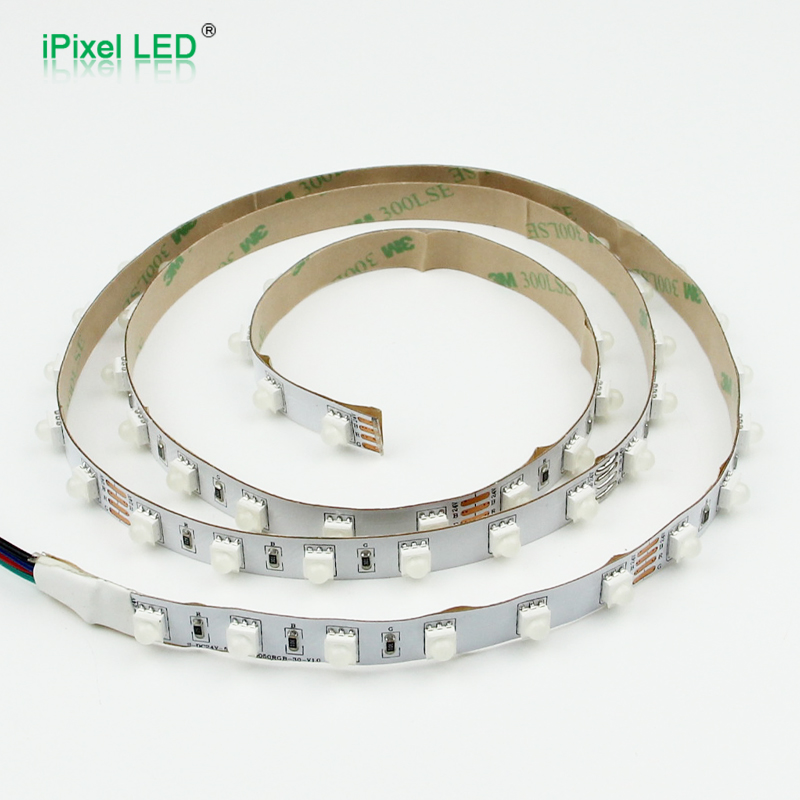

This led strip with 60pcs 5050 RGB Small angle LED chips
You can use PWM controller to control it
The input voltage is DC12V/24V Flexible PCB, the FPCB color is white
The FPCB width is 10mm, 1 + 2 Oz copper
Standard 5M/roll, length can be customized
|
PN |
S010060CB3PZ(T) |
S010060CC3PZ(T) |
|
Voltage |
DC12V |
DC24V |
|
LED Type |
SMD 5050 Small angle LED |
SMD 5050 Small angle LED |
| LED Quantity |
60 LEDs/m |
60 LEDs/m |
|
Cutting length |
50mm |
100mm |
|

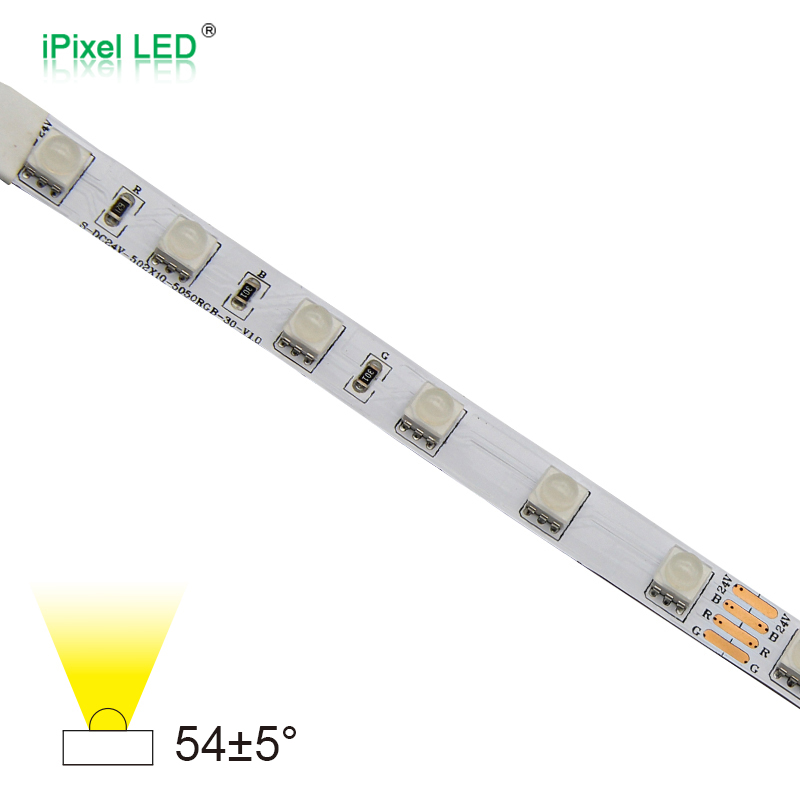

Beam Angle |
54±5° |
54±5° |
|
Dimension |
5000*10mm |
5000*10mm |
| Control | PWM |
PWM |
|
Power |
10W/m |
10W/m |
| O.T | -25℃ ~ 60℃ |
-25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
