Description
-High density, the light is even and soft
-High efficiency, remarkable energy saving effect
-Chip longitudinal distribution, high reliability;
-Standard 5M/roll, length can be customized

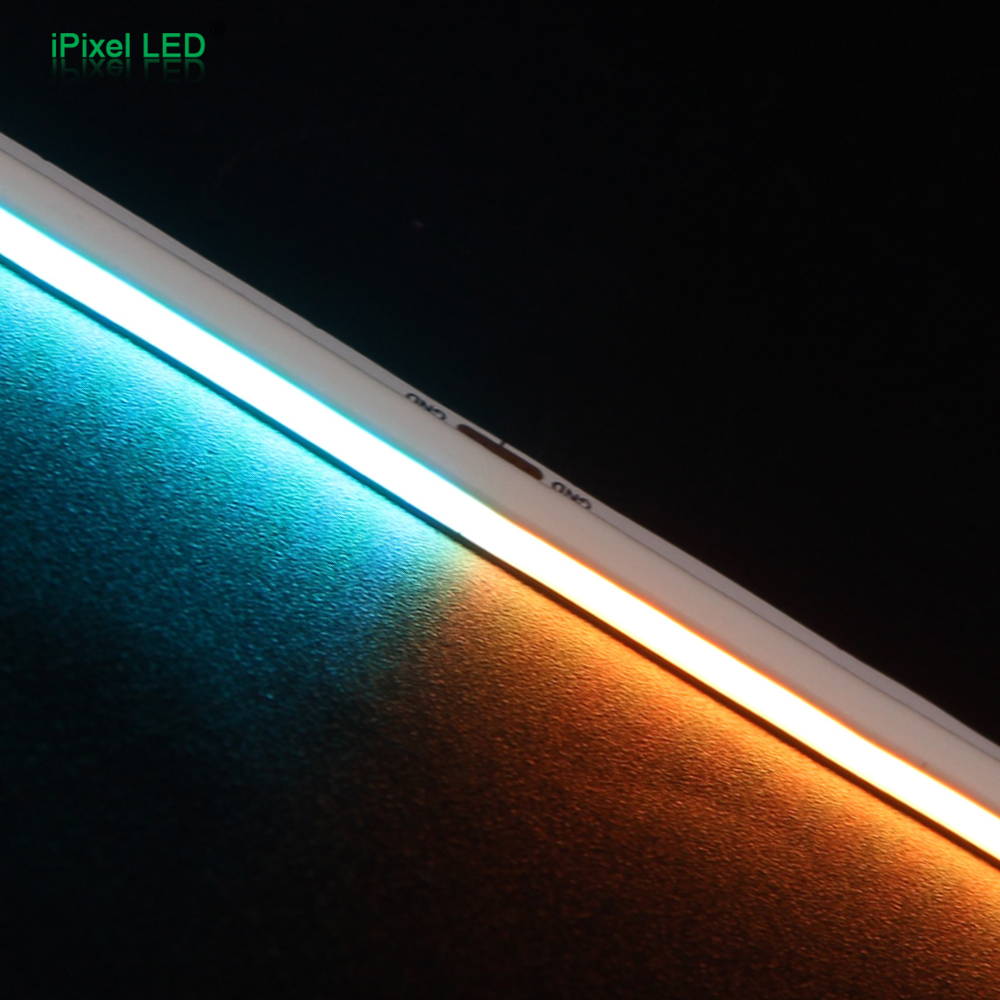

-The side emitting COB LED strip comes out under the demand of edge lighting.
|
PN |
S010840ZC3SF(C) |
|
Voltage |
DC24V |
|
SMD Type |
COB |
|
Power |
13W/m |
| LED Quantity |
840LEDs/m |
|
Color |
RGB |
|
Control |
SPI-WS2811 |
|
Pixel/m |
10 |
|
Cutting length |
100mm |
|
Dimension |
5000*10mm |
| Luminance/m | R: 54.5 G:178 B:37 lm |
|
Power |
13W/m |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
