Description

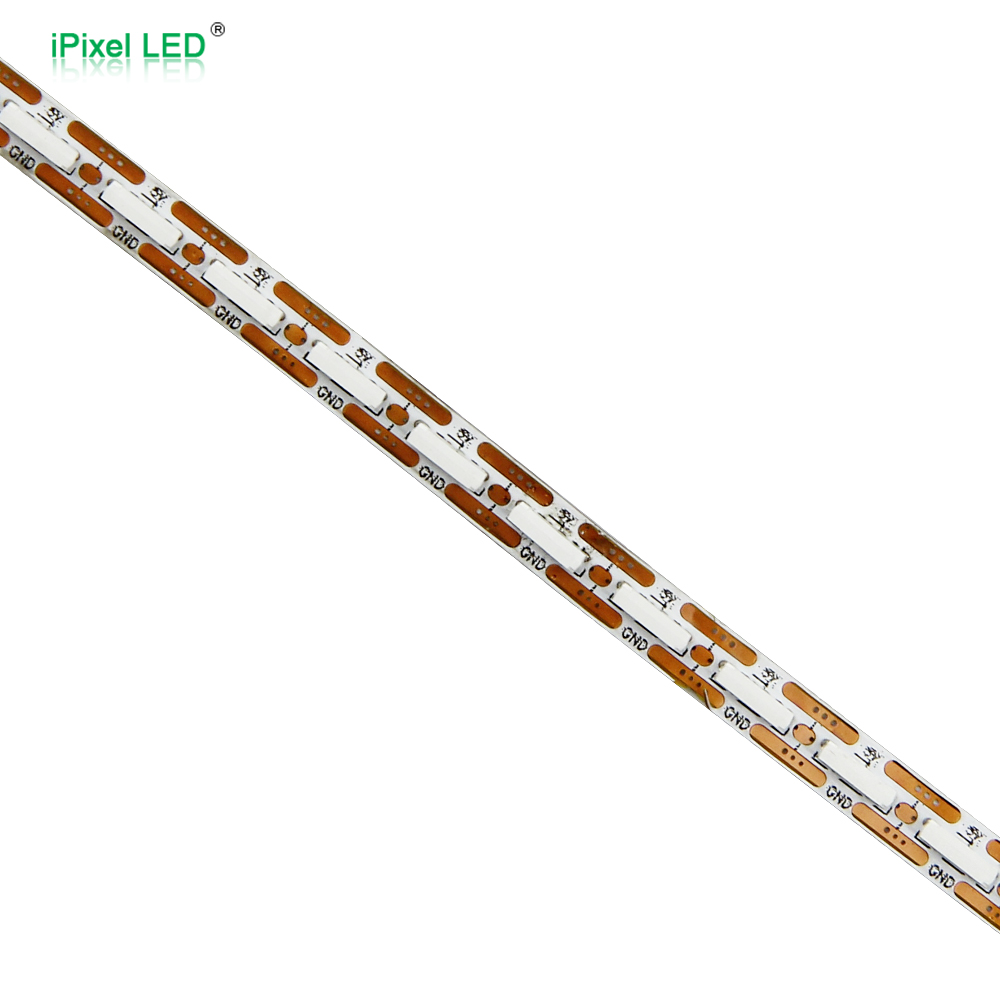

- This new SK6805 Double side emitting addressable
LED strip comes out under the demand of edge lighting
- SMD5720RGB LED chips, 120Pixels/m, SPI signal protocol
- PCB Color: White. DC5V voltage, every 8.33mm can be cut
- 5 Meter per reel, customized sizes are also available.

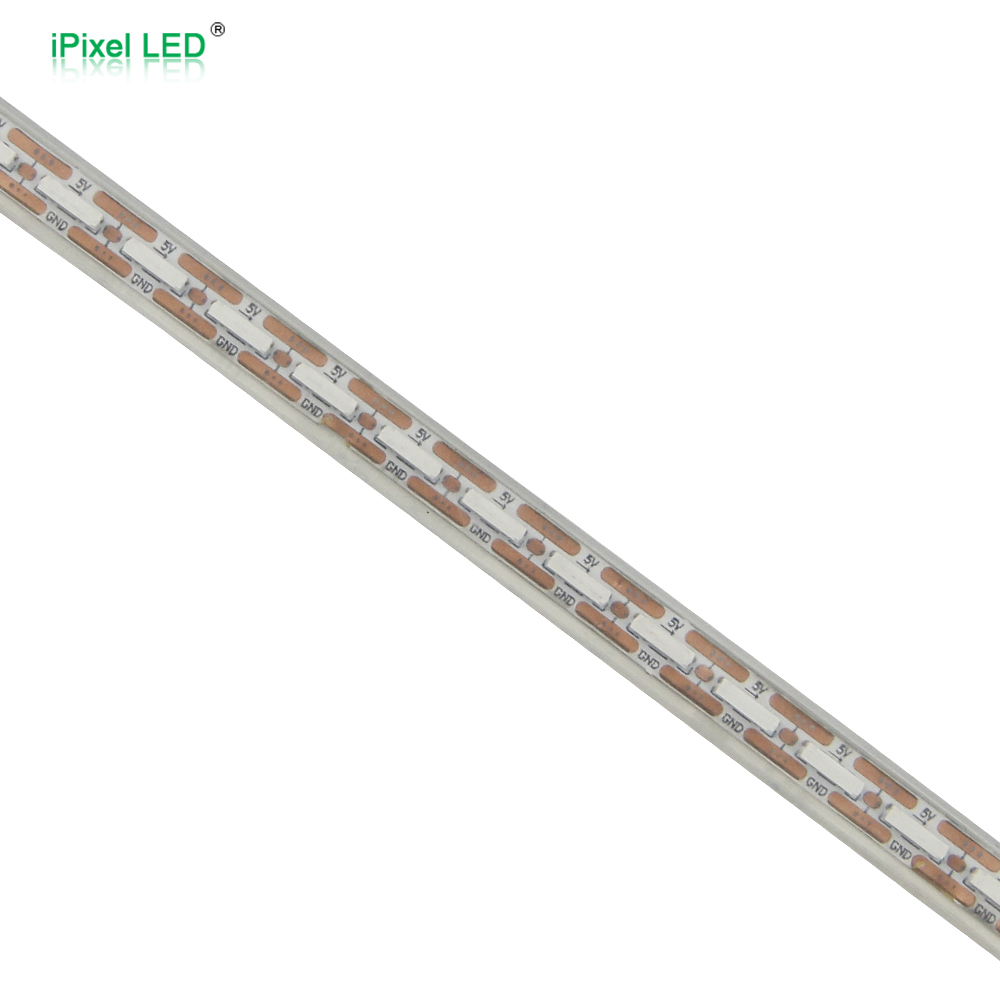

- 3Pin JST SM connector, IP65 waterproof with silicon tube housing.
- The PCB is 1+2 Ounce copper, 5mm width
|
PN |
S005120IA3SA8 |
|
Voltage |
DC5V |
|
Power |
14.4W/m |
|
LED Type |
SMD 5720 RGB |
| LED Quantity |
120LEDs/m |
|
Cutting length |
8.33mm / 1LED |
|
Protocol |
SPI - SK6805 |
|
Dimension |
1000*5mm |
|
Pixel/m |
120 |
| Luminance/m | R:64 G:229 B:49 lm |
|
Beam Angle |
120° |
|
IP Rating |
IP20/IP65 |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm/in)
