Home > Accessory > Discontinued > 2835 digital RGBW LED Patio lamp string

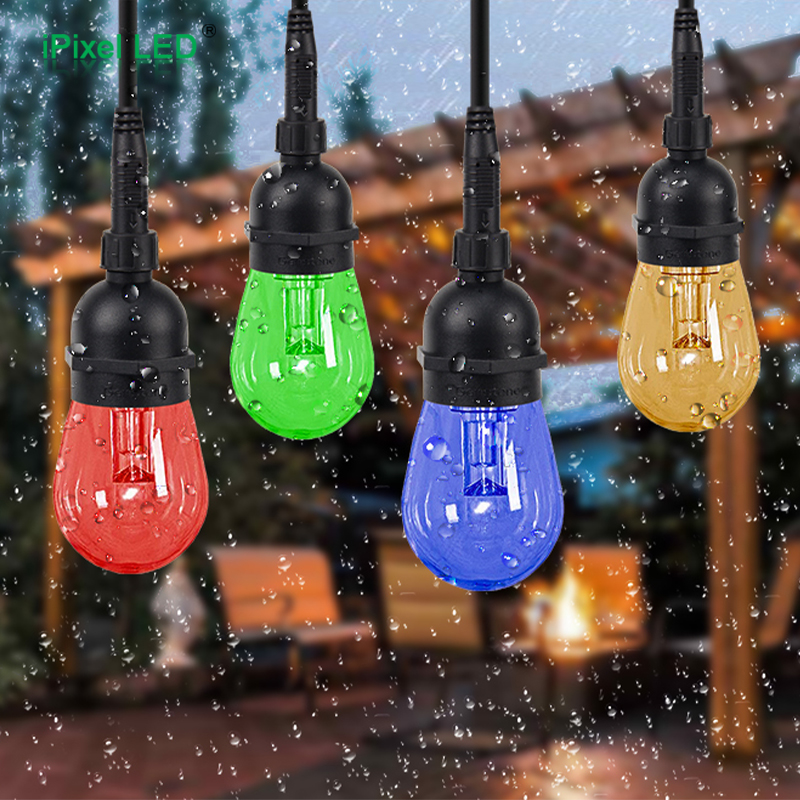

2835 digital RGBW LED Patio lamp string

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back ground
5. Stage,Disco Club
6. Outdoor building,fridge

Share to

Specification

Product Parameter

PN	P044004BB4ST
Emitting color	RGB+3000K/4000K/6000K
Operating voltage	12V
Max power/Bulb	1 W
Control	SPI / UCS2904B
IP rate	IP65
Diameter	44mm
Lens type	clear
Beam angle	360°
Lumens/string	R:27 G:70 B:17 W:102lm
Length/string	7.5m
Operating Temp	-30℃ to 45℃ / (-22°F to 113°F)

Description

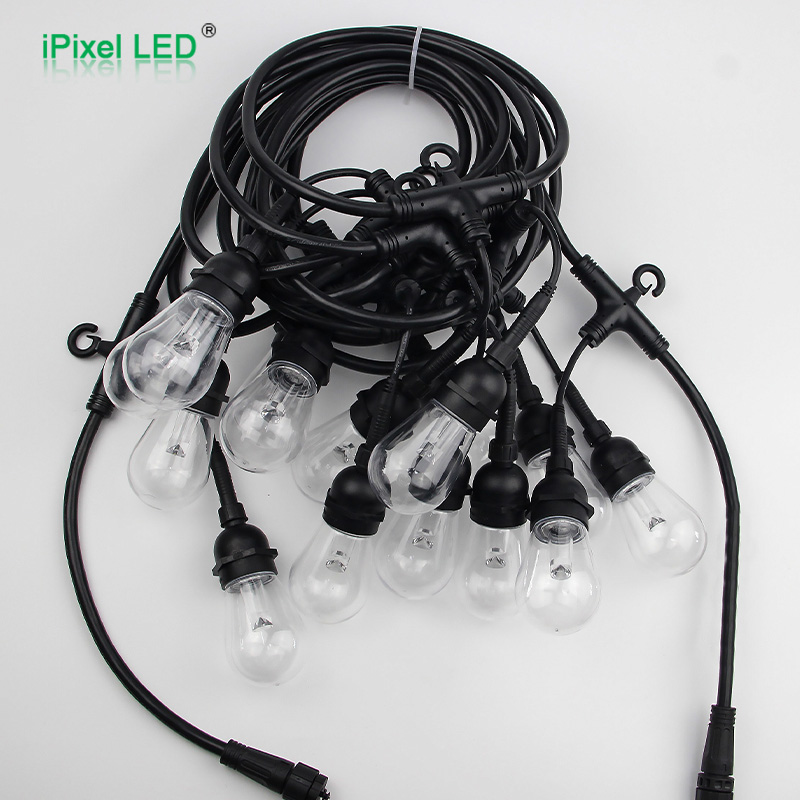

This patio lamp has 15 pcs per string
All the wires UL listed for safty purpose

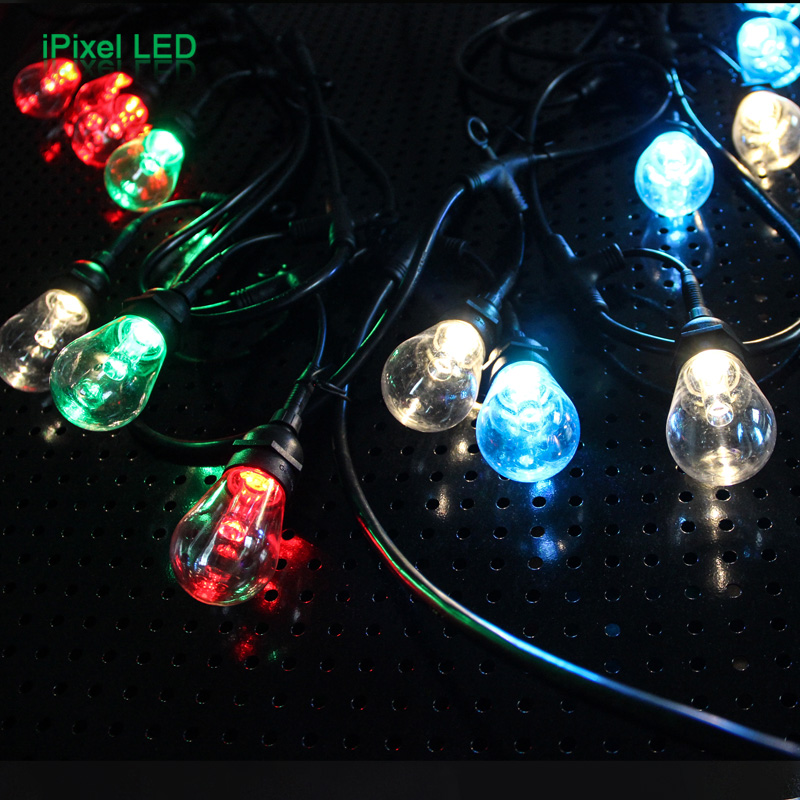

RGB+3000K/4000K/6000K color and each lamp has a micro IC which could individually control
It's waterproof for outdoor IP65
Each lamp can be take off or install very easy and simple

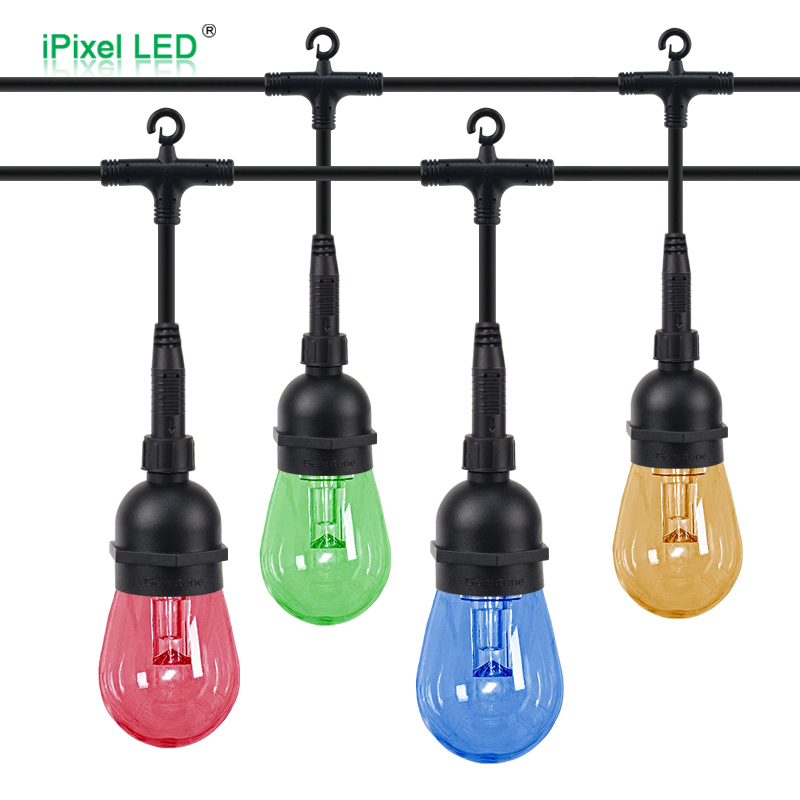

There is a hook on top of T connector allow each lamp to hanging on the exsit cable

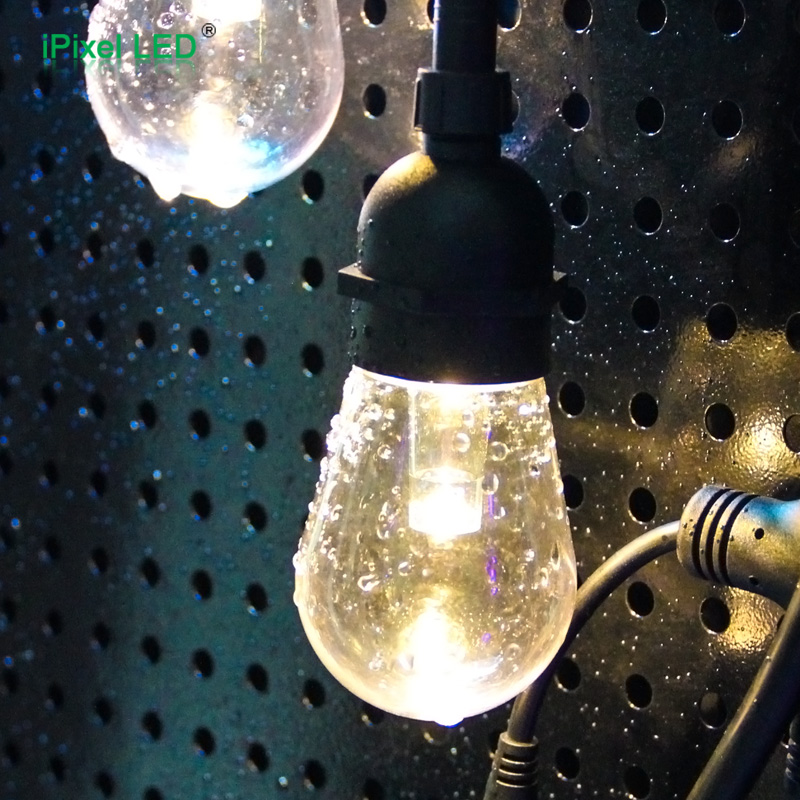

The lamp body are constructed with a high-quality PC transparent cover that has excellent light transmission.

Dimension (unit:mm)

LED Patio lamp string

Wiring diagram

LED Patio lamp string
