Application:
1. Hotels, restaurants, night clubs,
2. Coffee / wine bars, shopping malls,
3. Shops, cinemas, beauty centers,
4. office fronts, kitchens or living rooms, etc.
|
PN |
P026003CB3SC |
|
Voltage |
DC12V |
|
LED Type |
SMD 5050 RGB |
|
IC |
US 1903 |
|
Size |
φ26 MM |
|
IP |
IP 65/IP 67 |
|
Power |
0.72 W/PCS |
|
Beam Angle |
140° |
| O.T |
-30℃ ~ 45℃ |
Description

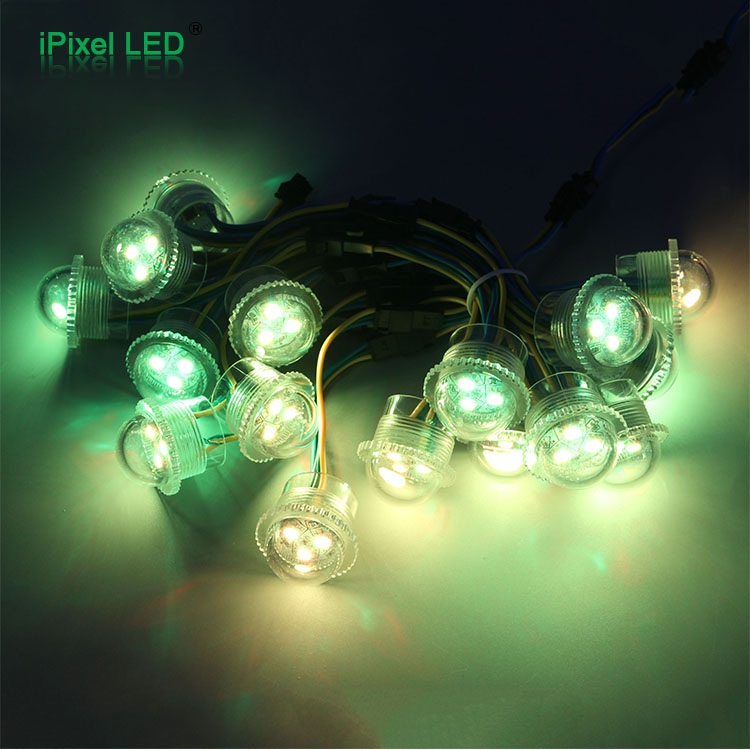

26mm Pixel LED with SPI control
Super bright SMD5050 RGB LEDs , 12V constant voltage

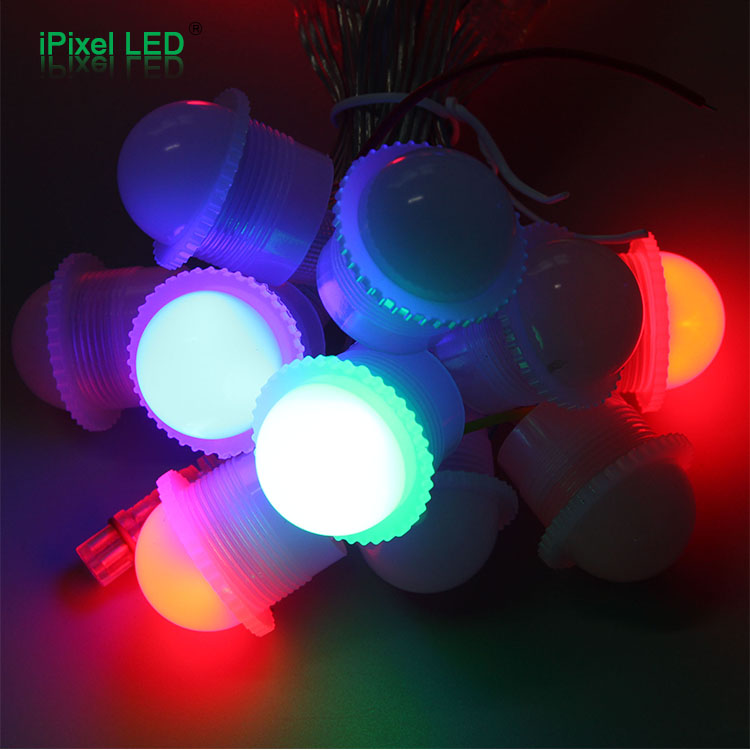

Clear or frosted covers are available

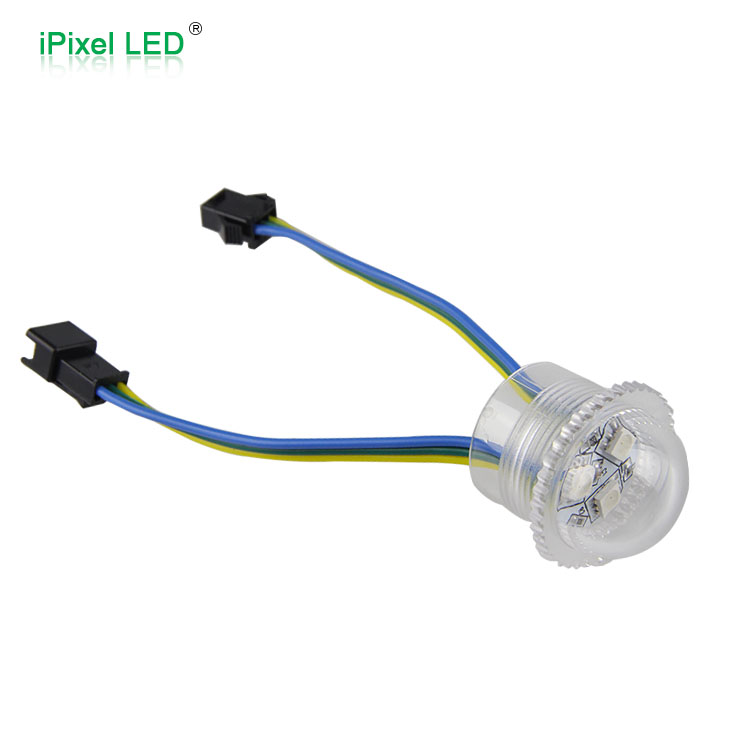

JST SM or waterproof connector
The lamp body is IP65, each lamp includes a plastic screw

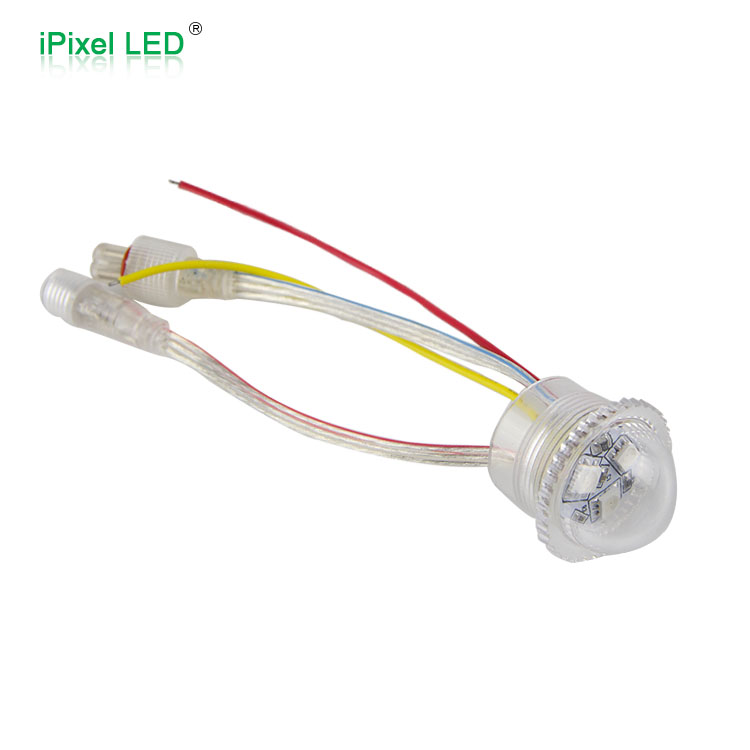

One out of every 20pcs lamps with extra welded red & yellow wires
for DC power
Size of mounting hole should be 27-29mm

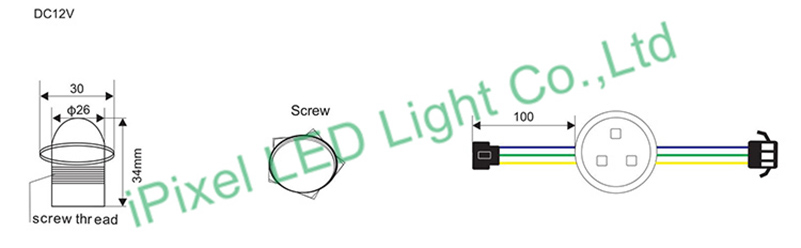

Dimension (unit:mm)

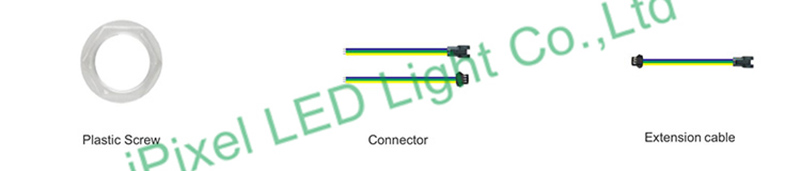

Accessory
