Application:
1. Back lighting.
2. Signage board.
3. Cabinet.
4. Jewelry store.
5. Indoor lighting.
|
PN |
B015060CB1LZ 丨 B015060CC1LZ |
|
Voltage |
DC12V 丨 DC24V |
|
LED |
60PCS SMD5050 |
| CCT |
2800-3200 K 4000-4500 K 6000-6500 K 9000-13000 K |
|
Size |
1015*17*8.7 MM |
|
Lumens/m |
1076 LM |
|
Power |
14 W |
|
CRI |
85 RA |
| O.T | -30℃ ~ 45℃ |
Description

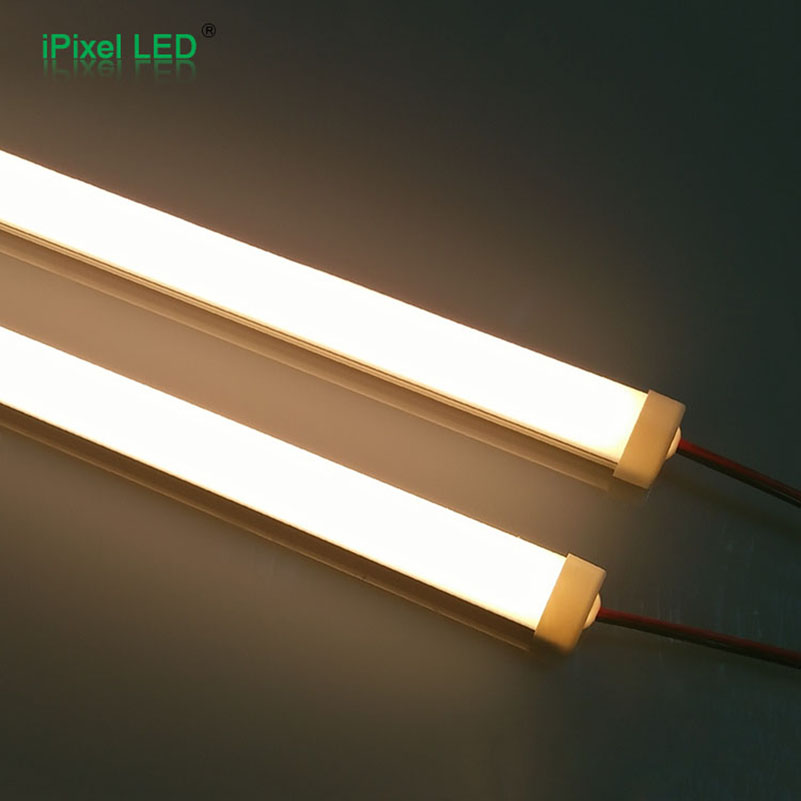

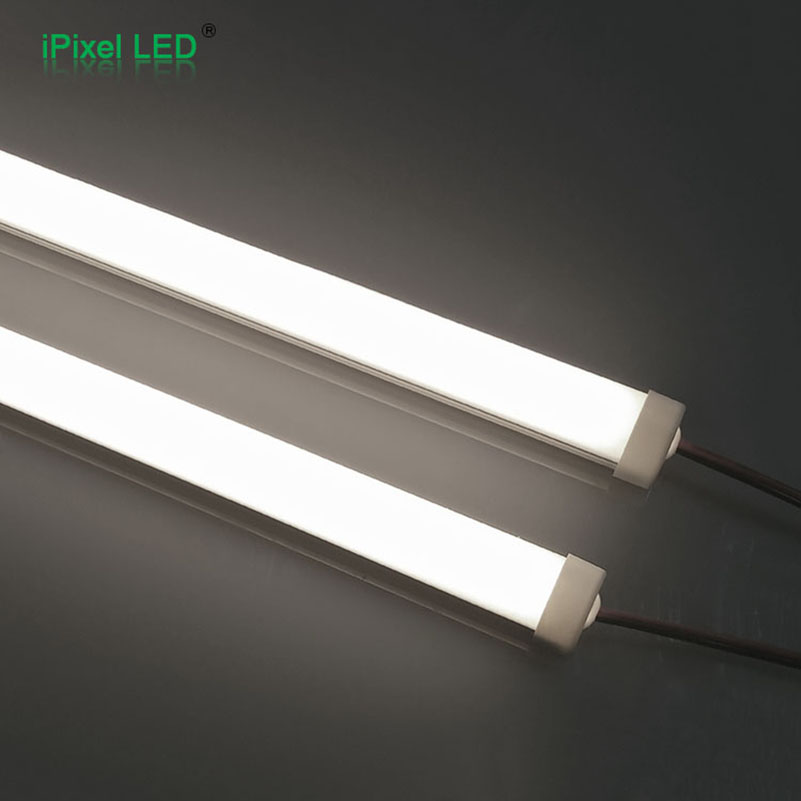

Aluminum housing led rigid bar with aluminum PCB

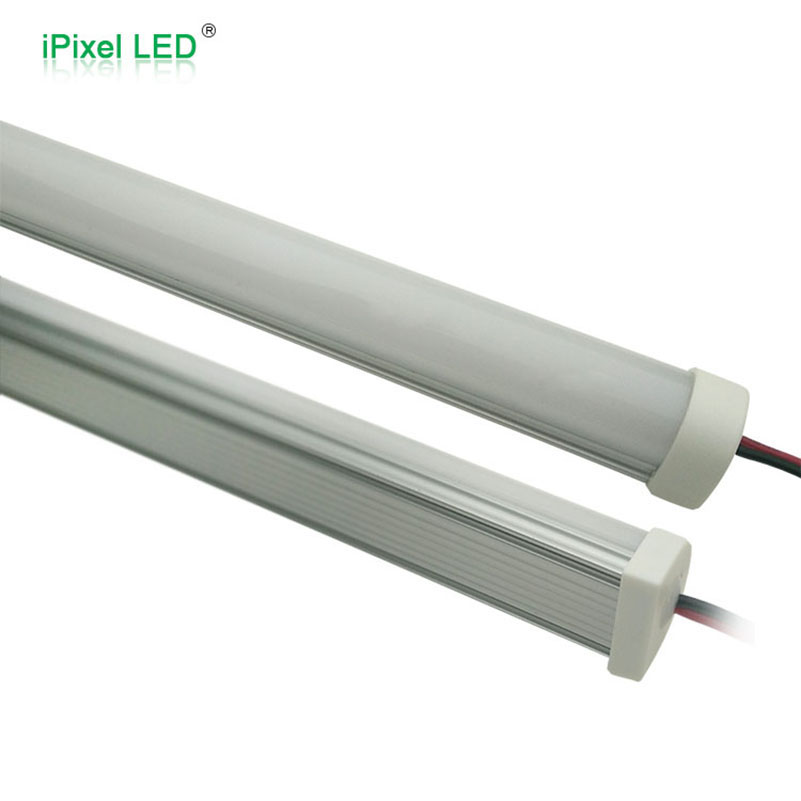

DC12V/24V Milky white & clear covers are available
Standard size is 1M, but customized lengths are also available
2Pin bare wires output from side, IP20 non-waterproof
Each bar includes 2pcs metal bracket and 2pcs metal screws
Uniform luminescence without spots

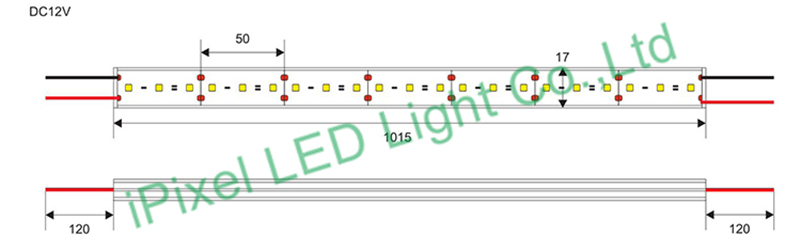

Dimension (unit:mm)

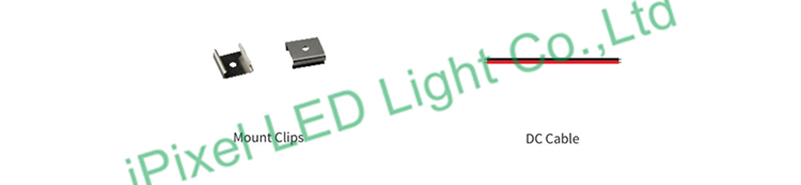

Accessory
