Application:
1. rides,carousels
5. Casino lighting
|
PN |
P060018CC3SM |
|
Voltage |
DC24V |
|
LED Type |
SMD 5050 RGB |
|
IC |
TM1804 |
|
Size |
φ60 MM |
|
IP |
IP 65 / IP 67 |
|
Power |
4.3 W |
|
Beam Angle |
360° |
| O.T |
-30℃ ~ 45℃ |
Description

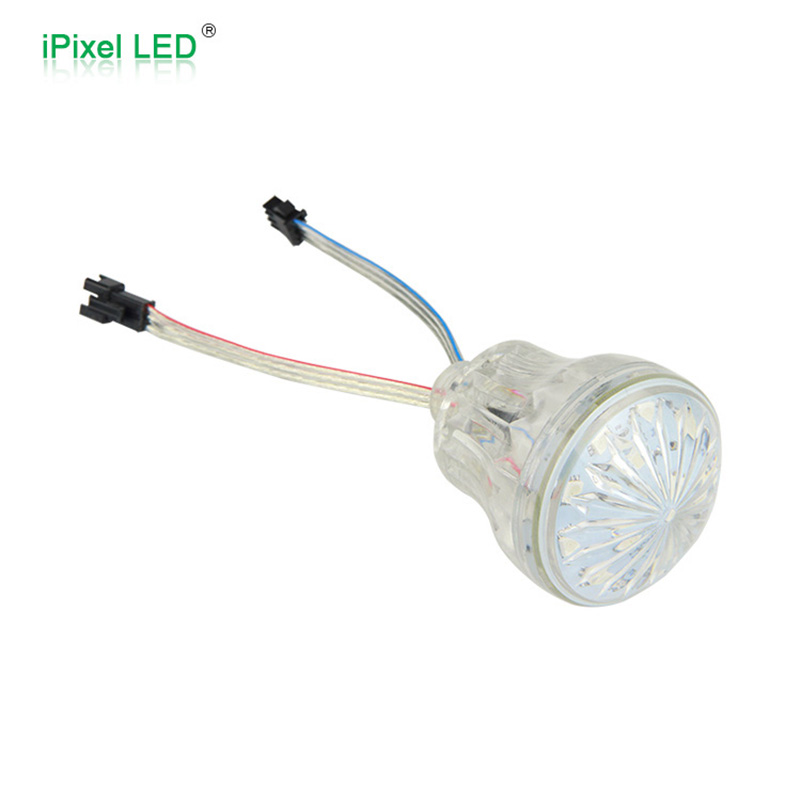

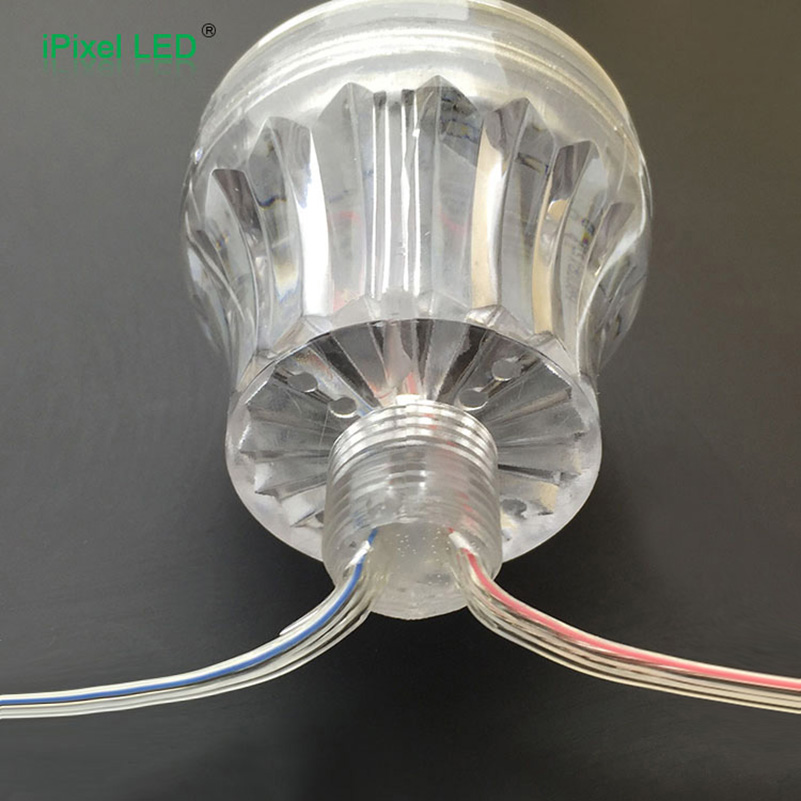

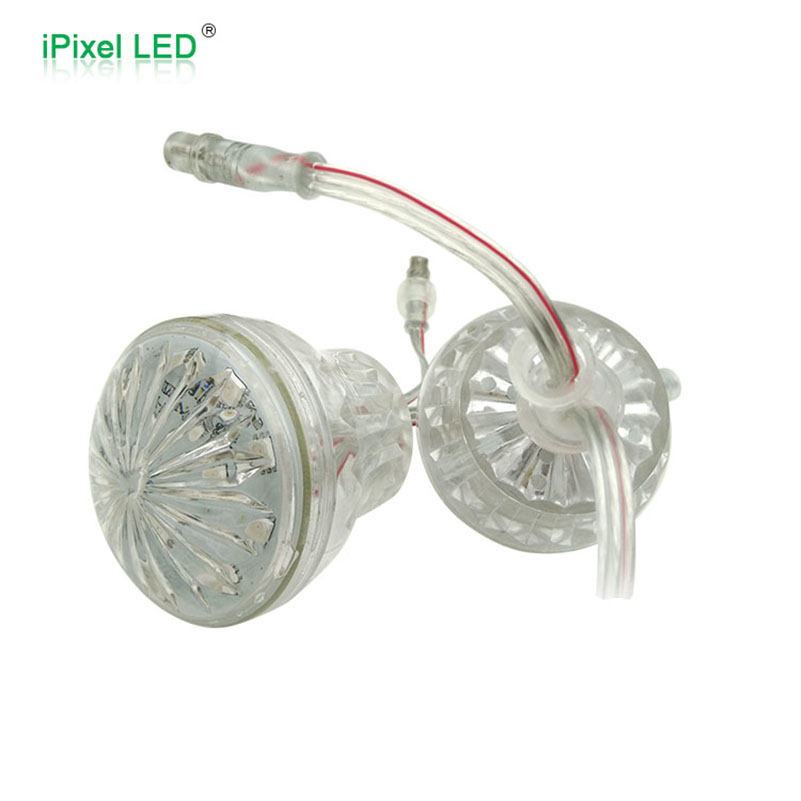

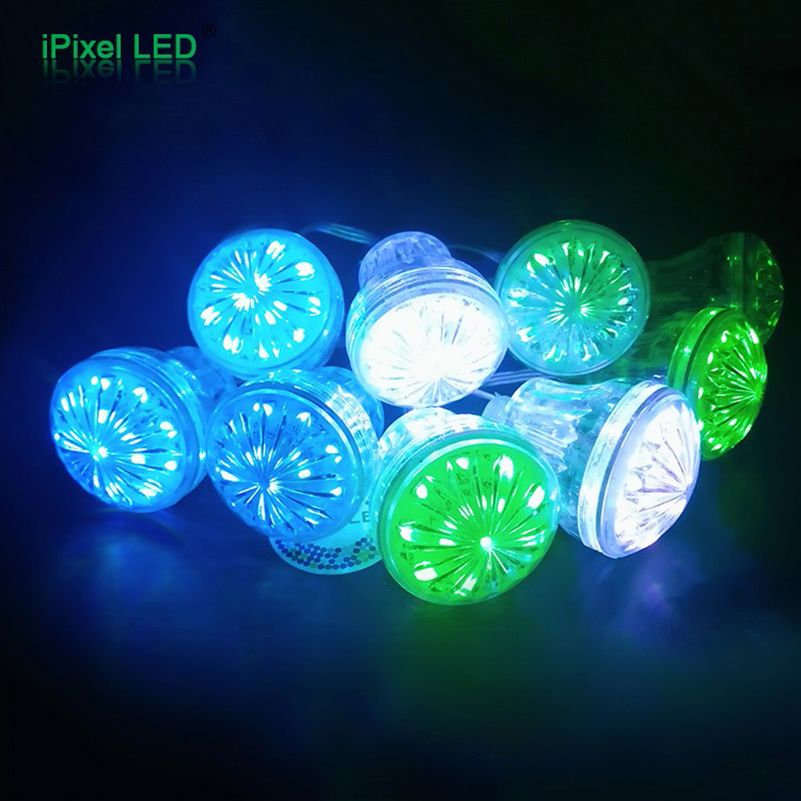

Cabochon LED lamp with a radial star effect
Wit Central luminous lens which could enlarge the illumination
The diameter of mounting base is 19mm, so the punching size is
required 19-30mm
JST SM or waterproof connectors, the lamp body is IP65
Each lamp includes a plastic screw
One out of every 20pcs lamps with extra welded red & yellow wires
for DC power

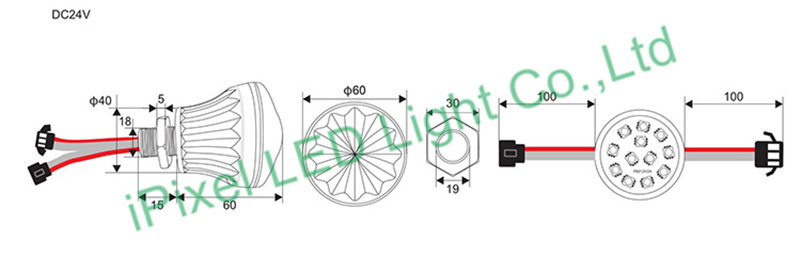

Dimension (unit:mm)

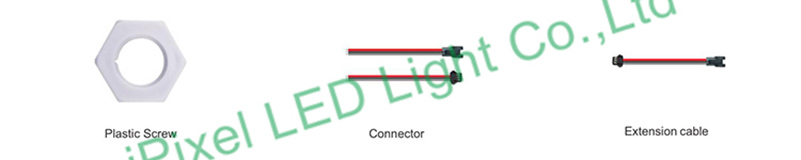

Accessory
