Application:
1. Hotels, restaurants, night clubs,
2. Coffee / wine bars, shopping malls,
3. Shops, cinemas, beauty centers,
4. office fronts, kitchens or living rooms.

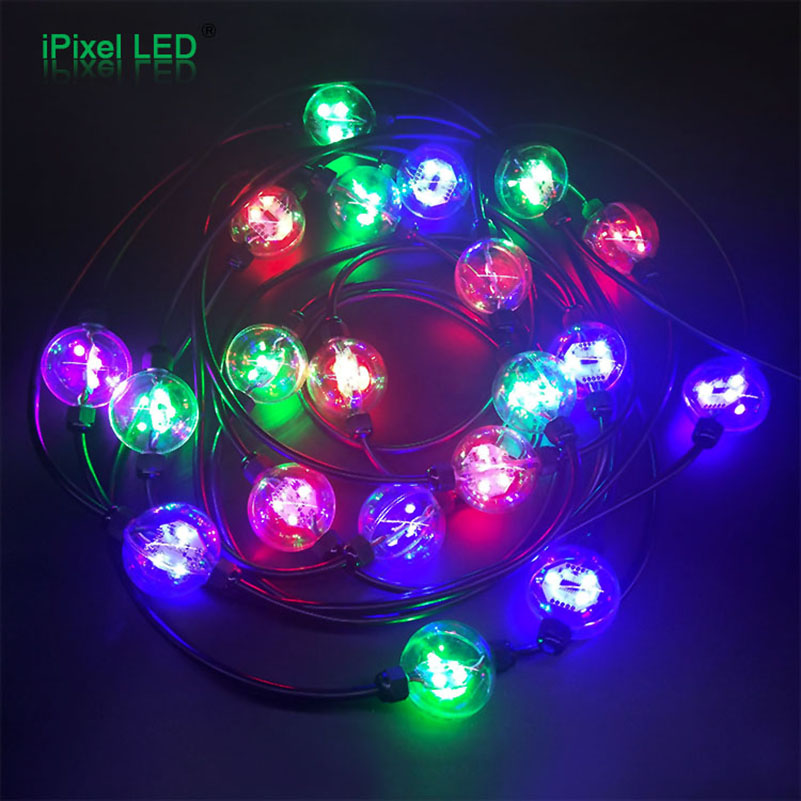

360 view LED Ball
Product Parameter：
| P/N | Diameter Ø | LED/Qty | Control | Luminance(MCD) | View Angle | Voltage | Wattage/pcs | IP Rate |
| P050006CC3DB8 | 50mm | 5050RGB/6 | DMX512 | R:4200 B:10200 G:3600 | 360° | DC12/24V | 1.44W(Max) | IP20 |
| Cover color | Milky white/transparent |
| Net Weight | 58g (pcs) |

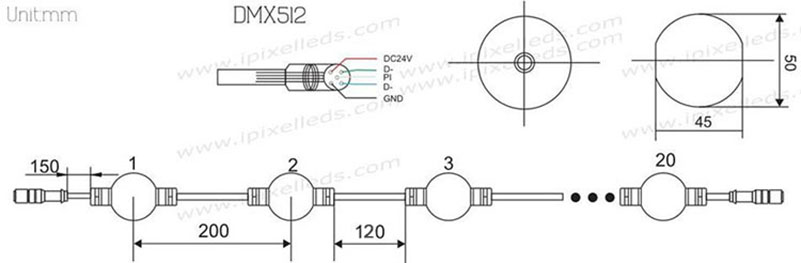

| Pixel pitch（mm） | Standard 200mm (customizable length) |
| LED ball quantity | 20 pcs (string) |
| Printed circuit board thickness | 0.25mm |
| Operation Temperature | -30℃~50℃ |
| Storage Temperature | 10℃~30℃ |
|
Control |
SPI/DMX512 |
Features：

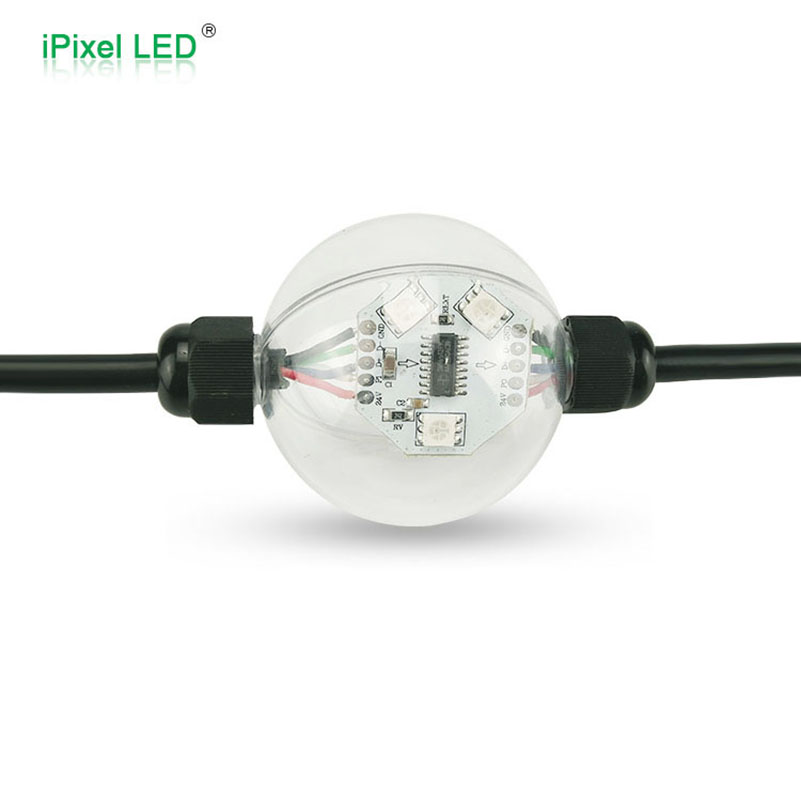

1.50mm diameter LED Pixel ball housing by a plastic case in milky white color,
2.Absolutely 360 degree lighting,
3.Non-waterproof IP20 for indoor use only,
4.There are 20pcs pixel ball in a string, wire distance between each ball is 12cm,20AWG Copper wire,
5.The cable have two different color :white & black,
6.The DMX type ball not auto-addressable ,you have to write the DMX address by the writer,
7.Control: standard DMX512.

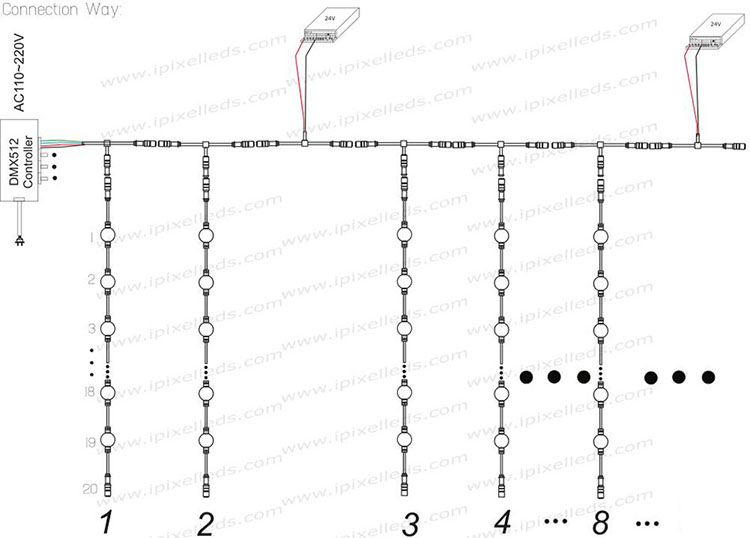

Connection：
