Description

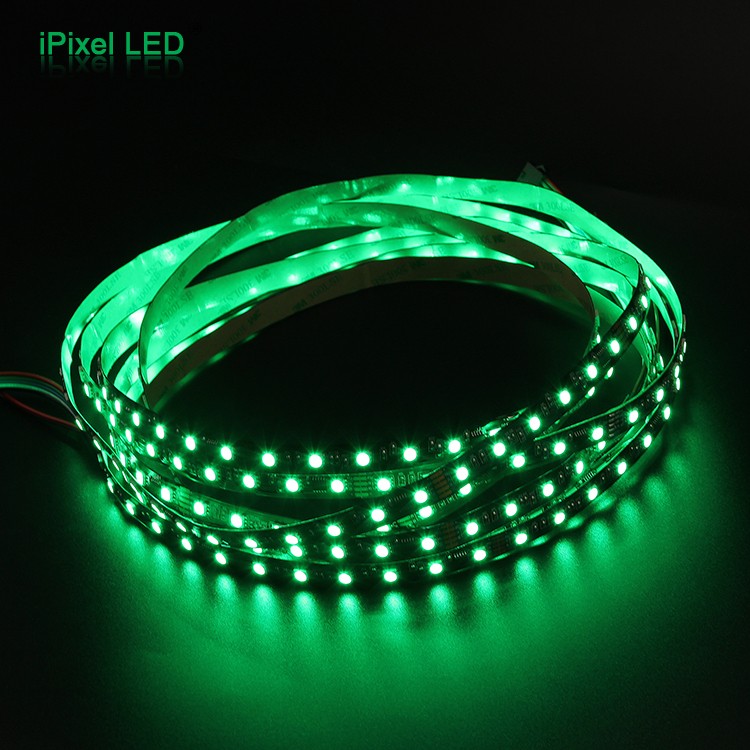

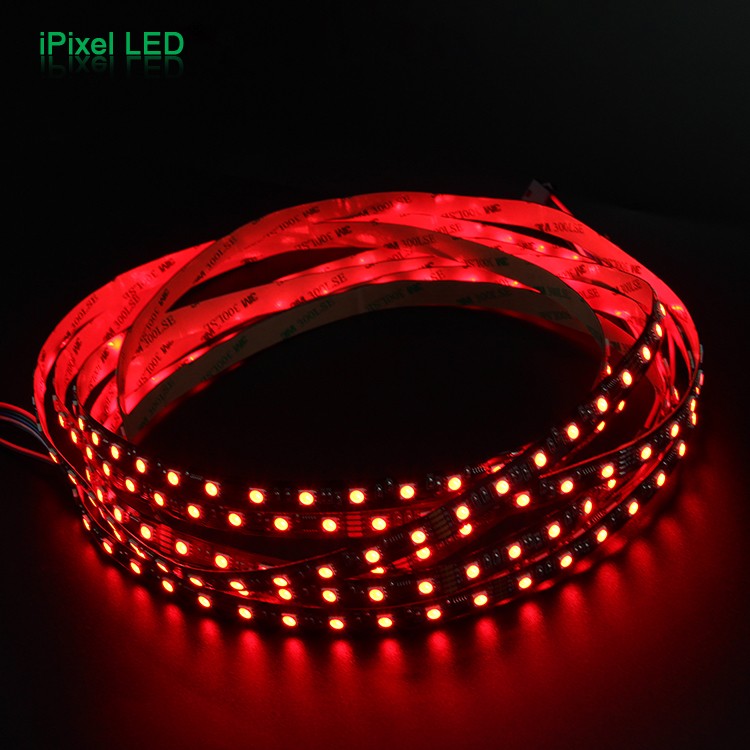

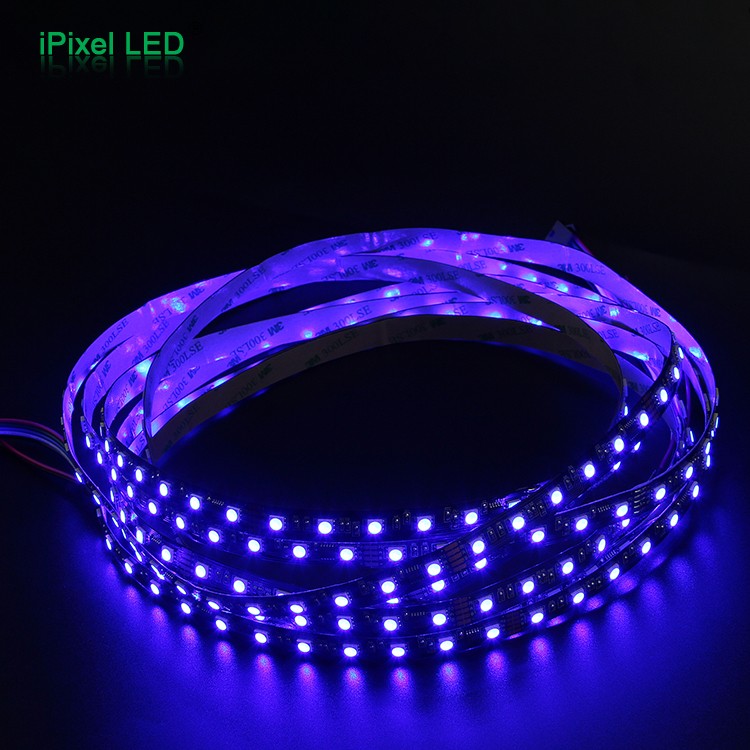

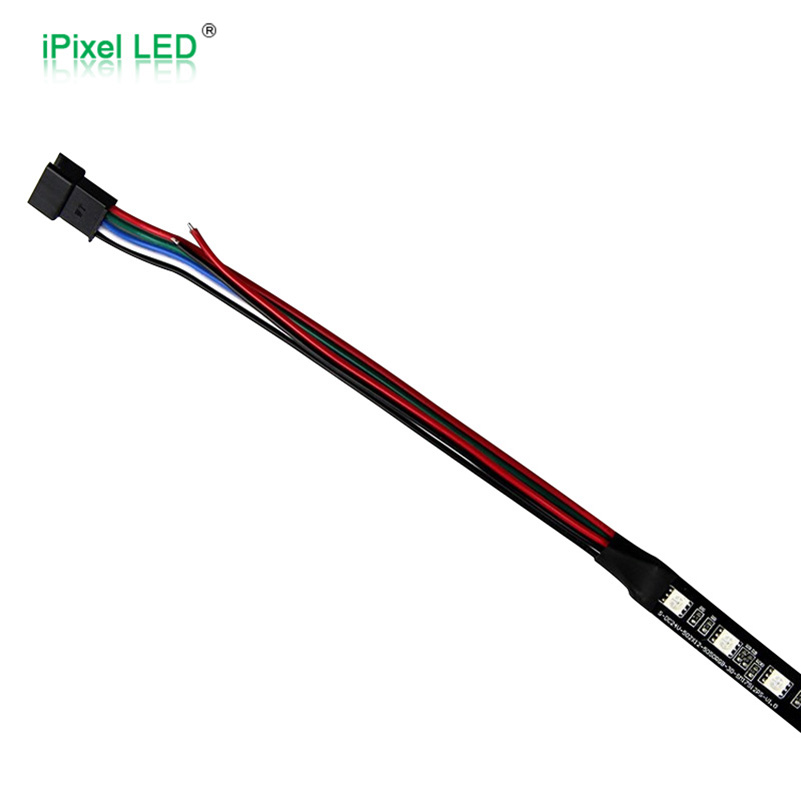

compare to the Manual address DMX Tape
this is much more easier to use , you don't need a address coder
30 DMX channel per meter (10Pixels) ,the whole strip is 5meters long
but the cutting unit is 100mm contains 6pcs LED and 3 channels

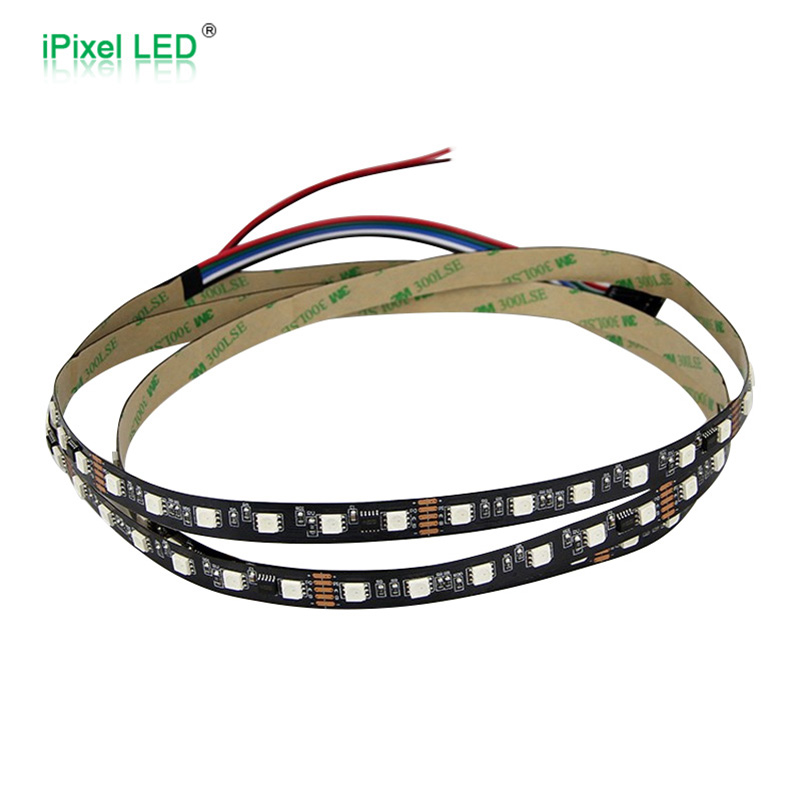

a 300P 3M tape attached on backside of PCB
the standard waterproof version is silicone tube housing
it's easy to run with any standard DMX512 controller
|
PN |
S012060CC3DC6 |
|
Voltage |
DC24V |
|
LED Type |
5050RGB |
| LED Quantity |
60LEDs/m |
|
CCT |
RGB |
|
Dimension |
5000*12mm |
|
Protocol |
DMX512 |
| IP | IP20/IP65 |
|
Power |
14.4W/m |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
