Description

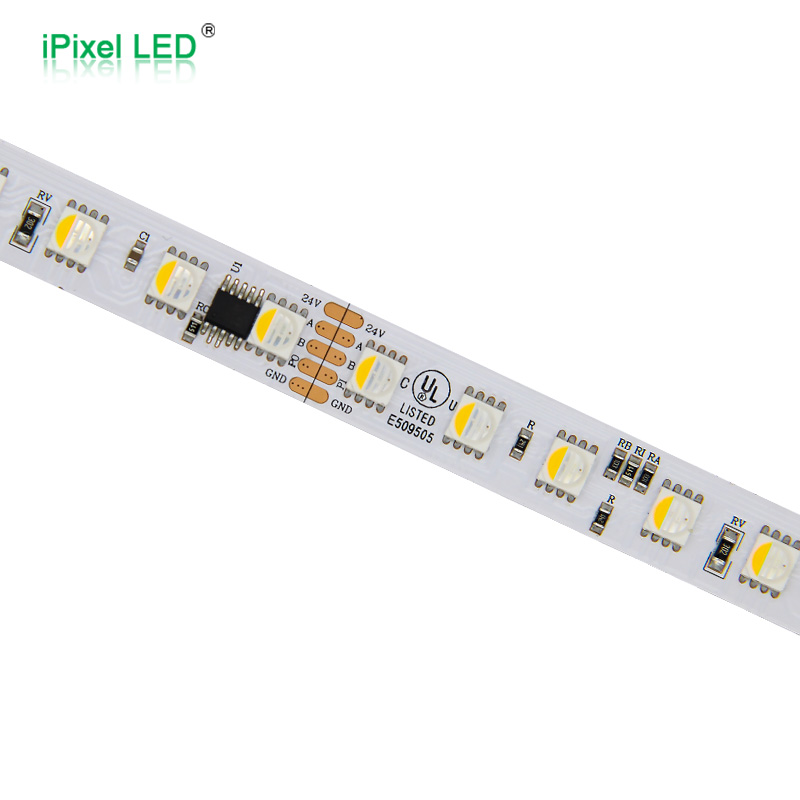

SMD5050 RGBW 4 in 1 LED chip, 84LEDs/m
DMX control, every 7LEDs/pixel(4CH)
Input voltage is DC24V
Flex PCB and PCB color is white
1+2 Ounce copper, 12mm wide
Standard 5M/roll, length can be customized
|
PN |
S012084CC4DC0 |
|
SMD Type |
SMD5050 |
|
LED Qty/M |
84LEDs/m |
|
Pixel/M |
12Pixels/m |
|
Voltage |
DC24V |
|
CCT |
RGBW:3000K/4000K/6500K |
| Control |
DMX/TM512AC/USC512H |
|
Luminance /M |
R:720 G:1635 B:470 W:2790lm |
|
Dimension |
5000*12mm |
|
Power |
23 W/m |
|
Cutting unit |
83.33mm |
| O.T | -25℃ ~ 60℃ |

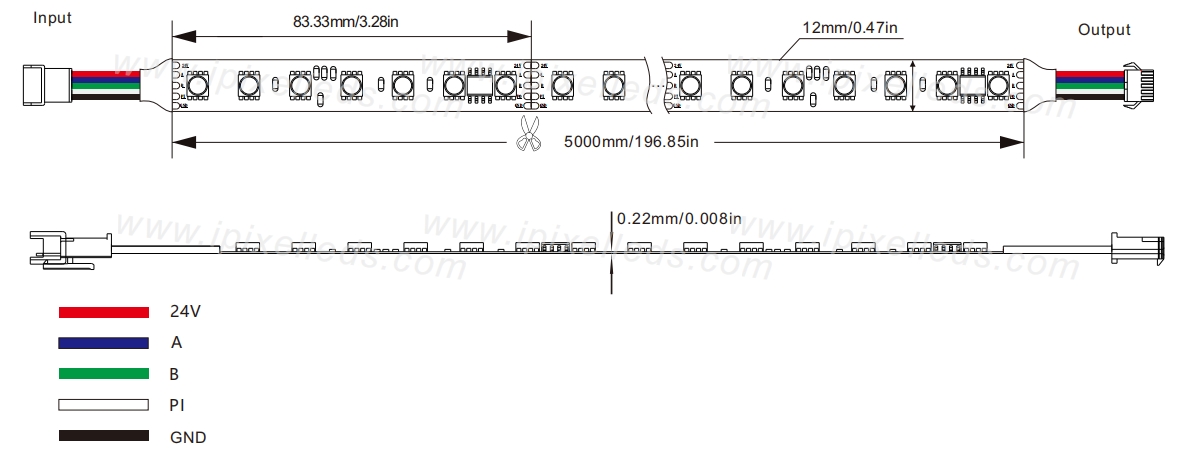

Dimension (unit:mm)

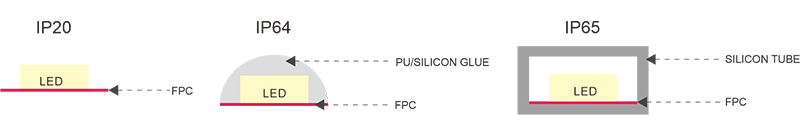

Strip IP Rate
Set DMX address Video
