Description
- Dual signal line transmission LED strip, Break-point
resume
- The strip will keep working if any LED becomes
damaged or physically removed
- White & Black PCB, DC5V voltage
- 5 Meters per reel, Customized sizes are also available
|
PN |
S010030CA3SD7 |
S010060CA3SD7 |
S012144CA3SD7 |
|
Voltage |
DC5V |
DC5V |
DC5V |
|
LED Type |
SMD5050RGB |
SMD5050RGB |
SMD5050RGB |
| LED Quantity |
30LEDs/m |
60LEDs/m |
144LEDs/m |
|
Protocol |
SPI - SK6813 |
SPI - SK6813 |
SPI - SK6813 |
|
Dimension |
5000*10mm |
5000*10mm |
1000*12mm |
|
Pixel/m |
30PCS |
60PCS |
144PCS |
| PCB Color | White/Black |
White/Black |
White/Black |
|
Power |
7.2W/m |
12W/m |
24W/m |
| O.T | -25℃ ~ 60℃ |
-25℃ ~ 60℃ |
-25℃ ~ 60℃ |

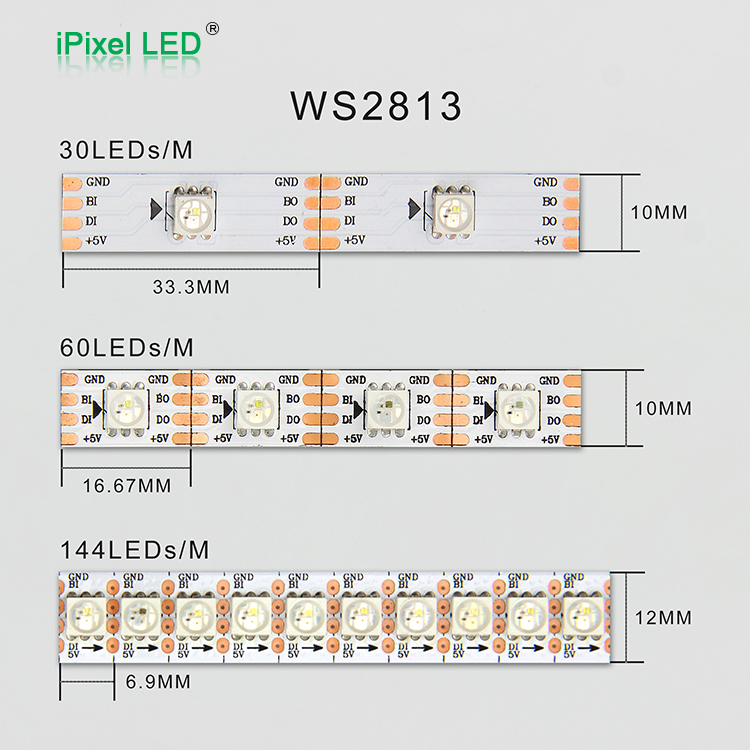

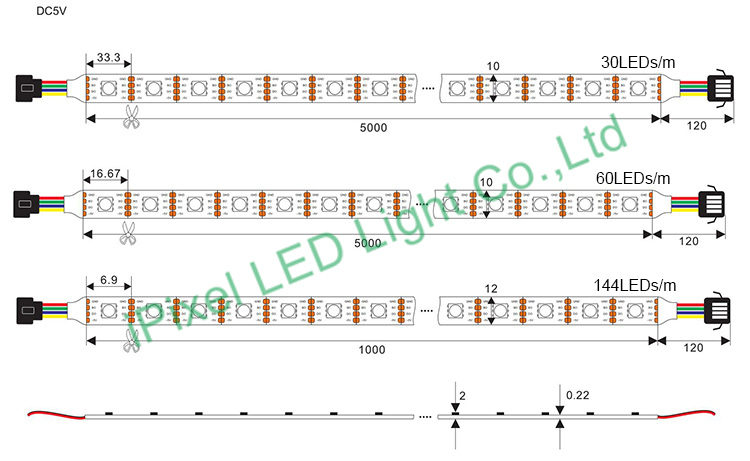

Dimension (unit:mm)

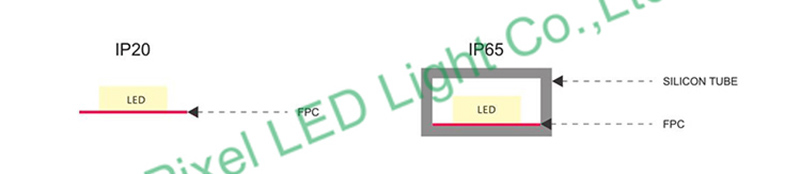

IP Rate
