Home > Digital Strip > SPI > SPI RGB Digital LED Strip 5mm Wide 120LEDs/m DC24V

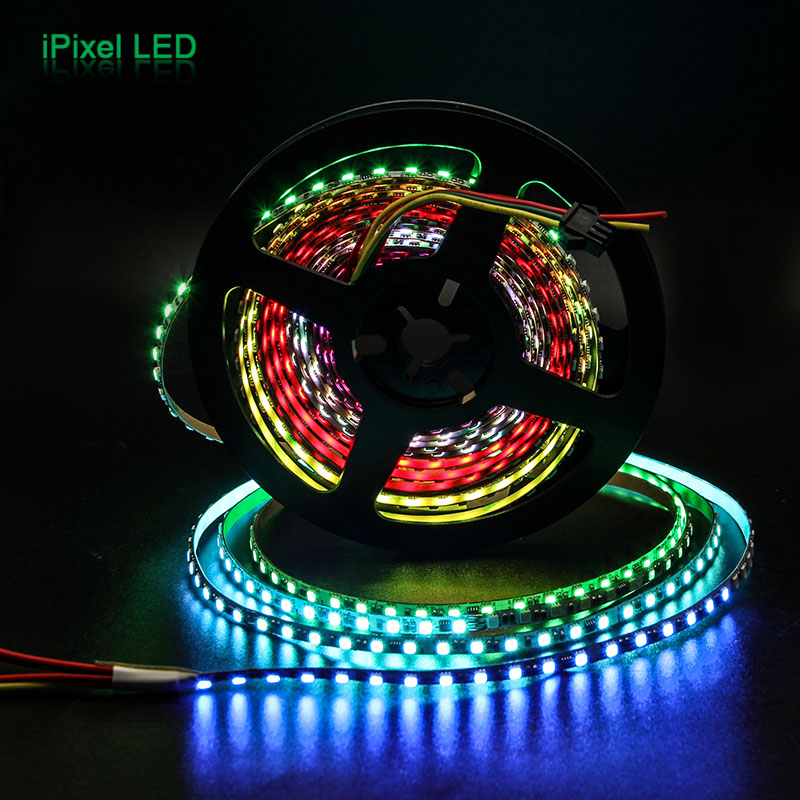

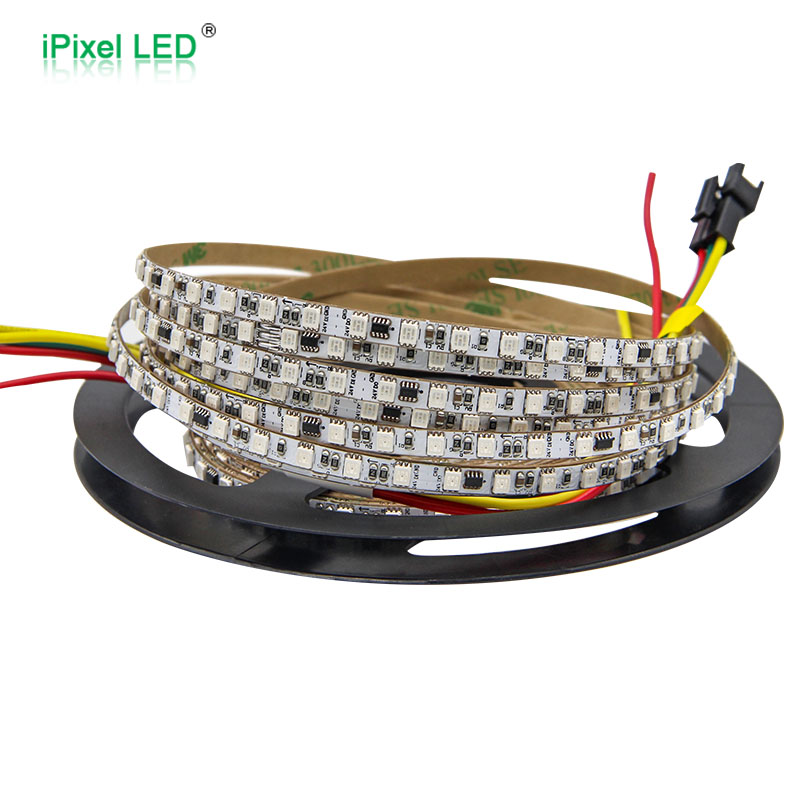

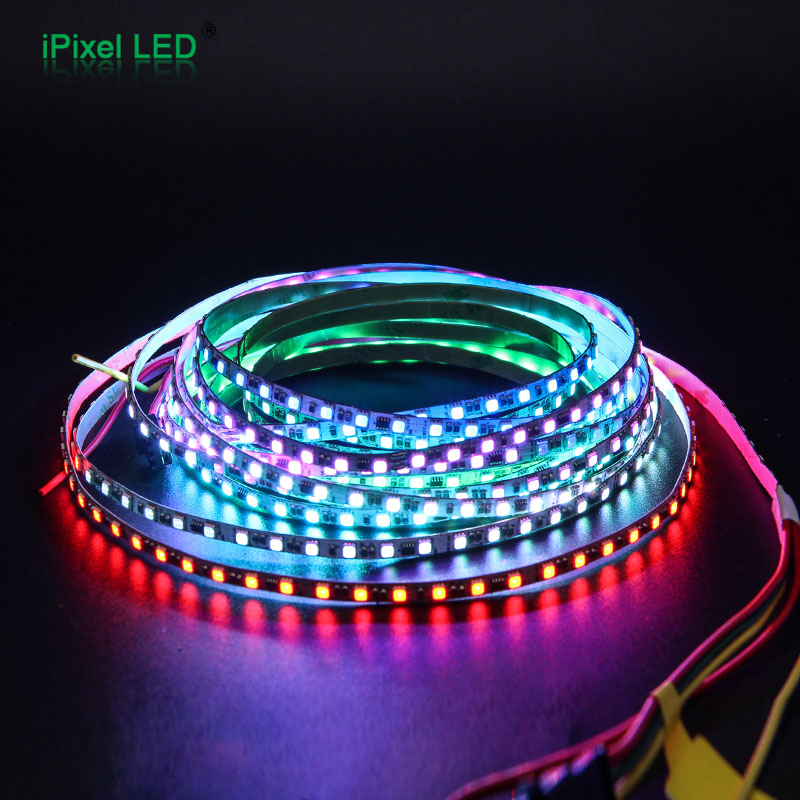

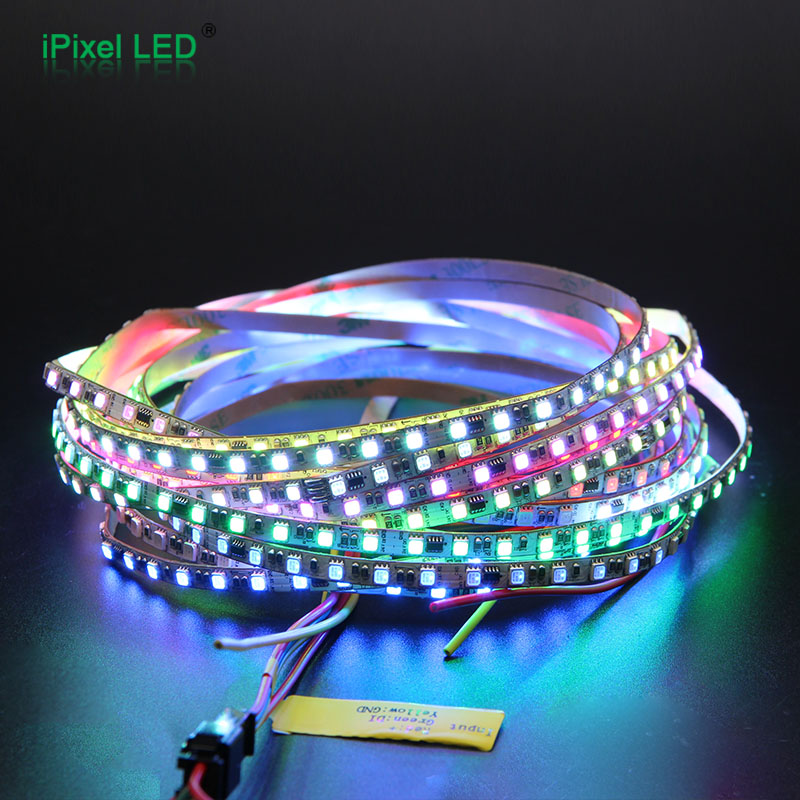

SPI RGB Digital LED Strip 5mm Wide 120LEDs/m DC24V

Description

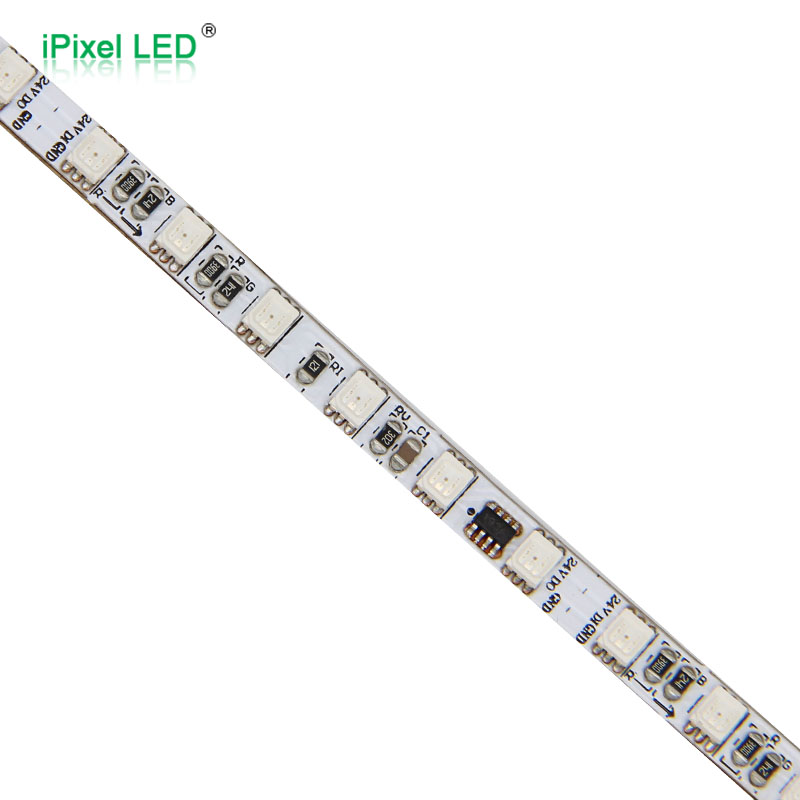

This flex led strip uses SMD2835 RGB LED chip,
120leds/m, single row led chip
20Pixels per meter, SPI control
DC24V constant voltage operation
Flex PCB with white color or black color
1+2 ounce copper FPC, 5mm width

5 m per reel, length can be customized

Share to

Specification

Product Parameter

PN	S005120BC3SC
Voltage	DC24V
LED Type	SMD2835
LED Quantity	120LEDs/m
Color	RGB
Dimension	5000*5mm
Cutting unit	50mm
Luminance/M	Ｒ:157 Ｇ:415 Ｂ:94lm
Power	24W/m Max
Pixel/M	20
Control	SPI-TM1903
O.T	-25℃ ~ 60℃
