Description

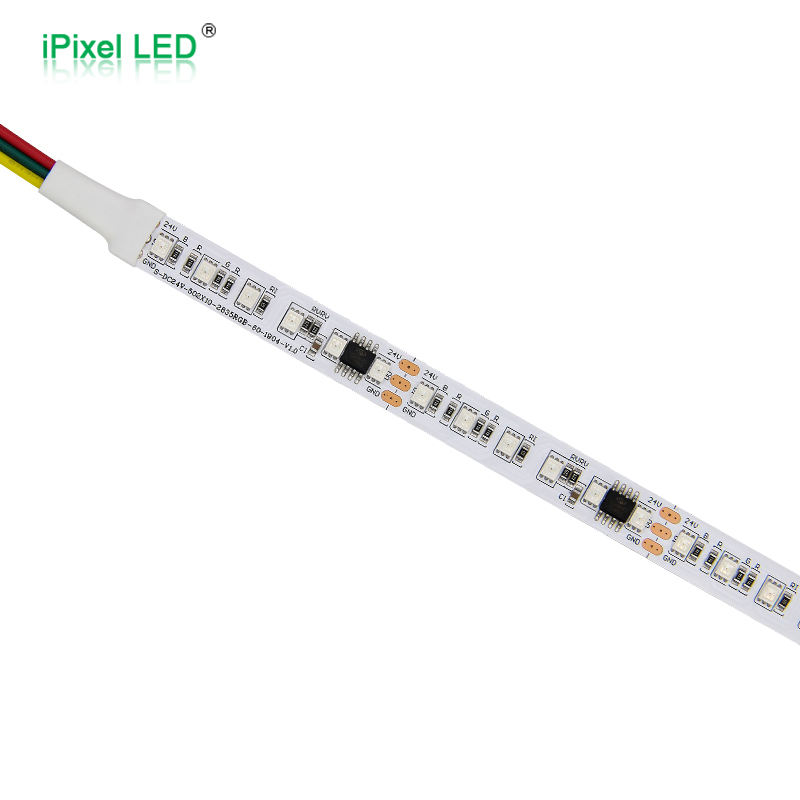

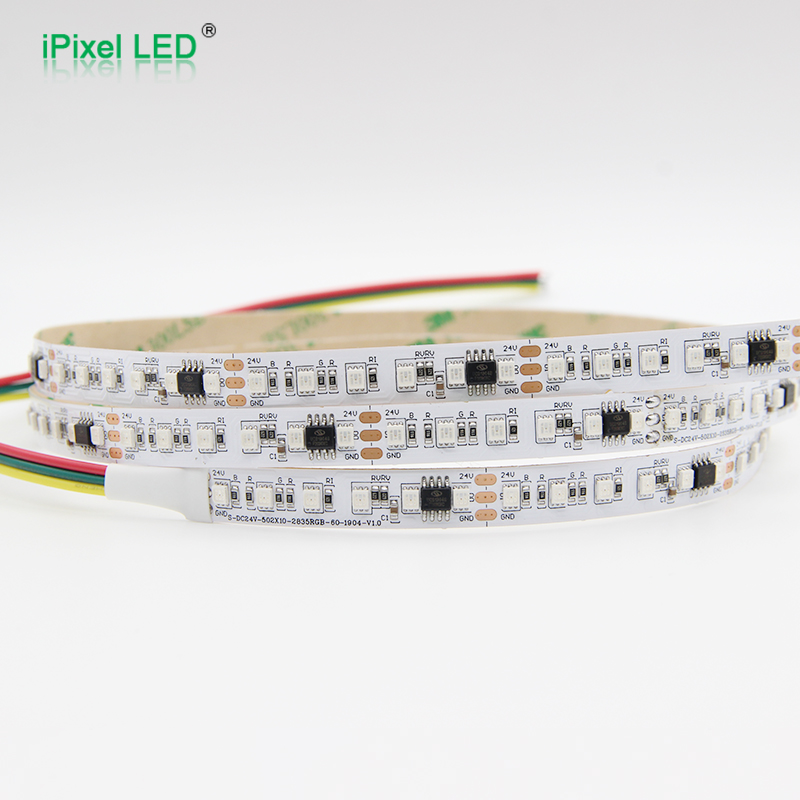

This flex led strip uses SMD2835 RGB LED chip,
120leds/m, single row led chip
20Pixels per meter, SPI control, 6LEDs per section
DC24V constant voltage operation
Flex PCB with white color
1+2 ounce copper FPC, 10mm width
5 m per reel, length can be customized
|
PN |
S010120BC3SM |
|
Voltage |
DC24V |
|
LED Type |
SMD 2835 |
|
LED Quantity |
120LEDs/m |
|
Color |
RGB |
|
Dimension |
5000*10mm |
|
Cutting unit |
50mm |
|
Luminance/M |
R:78 G:334 B:64lm |
|
Power |
14.8W/m |
|
Protocol |
SPI/TM1804 |
|
O.T |
-25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
