Description
Use 2835 high brightness led,126LEDs/M, single row LED.
Input voltage DC24V,Use SPI controller
Flexible PCB, FPC color: white.
1+2 OZ copper thickness FPC, 10mm PCB width.
Standard length 5m per roll, the length also can be customized.
|
PN |
S010126BC1SF |
|
Voltage |
DC24V |
|
LED Type |
SMD2835 |
|
LED Quantity |
126LEDs/m |
|
Color |
W:3000K/4000K/6500K |
| Pixel/m | 18 |
|
Dimension |
5000*10mm |
|
Cutting unit |
166.66mm |
|
Luminance/M |
W:707lm |
|
Power |
8W/m |
| Protocol/Pixel/M | SPI/WS2811 |
|
O.T |
-25℃ ~ 60℃ |

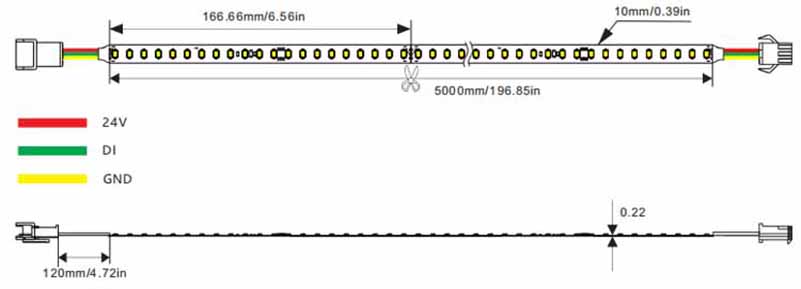

Dimension (unit:mm)
IP Rate
