Description

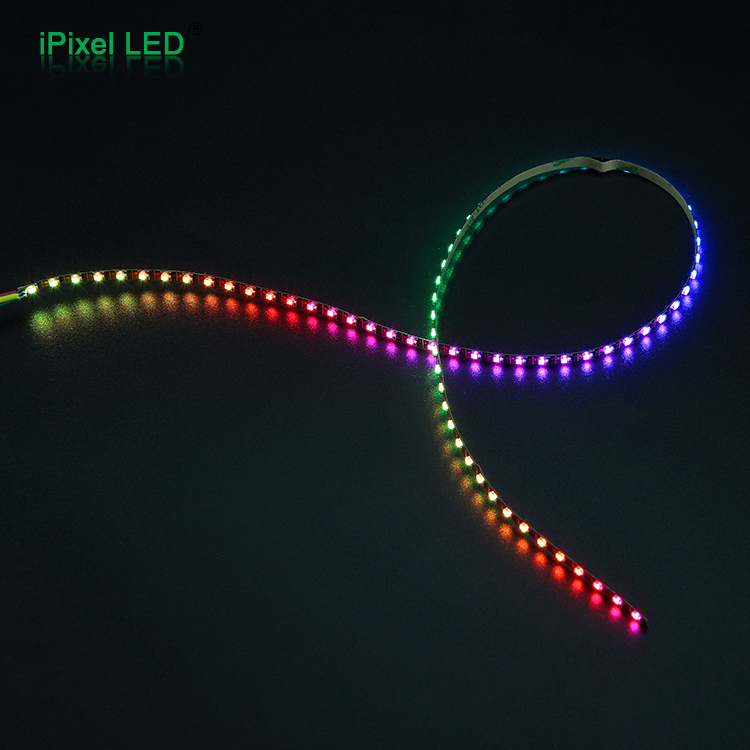

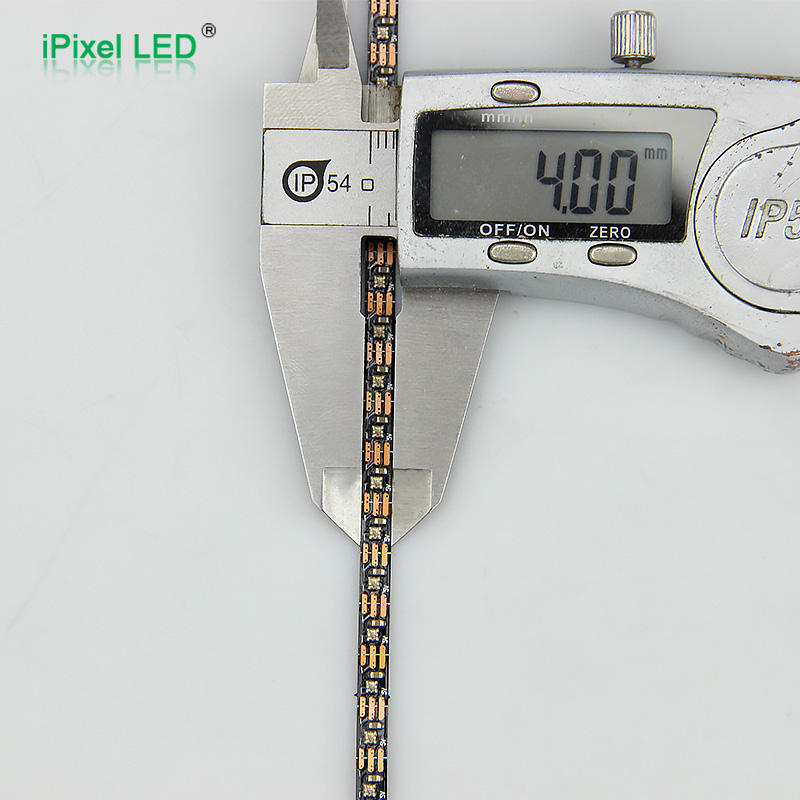

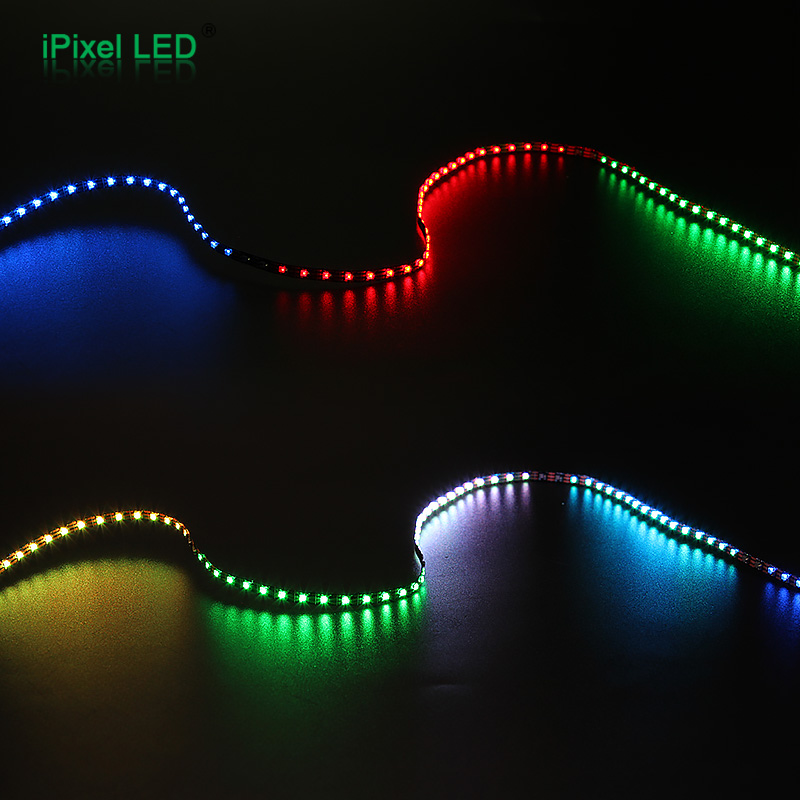

This is a Tiny Flexible LED strip ,only 4mm width ,RGB addressable
Micro LED chip 1.5*1.5mm only ,
each RGB LED built a mini driver inside, SPI Protocol ,256 level gray scale adjustable, signal in series
transmission each unit LED

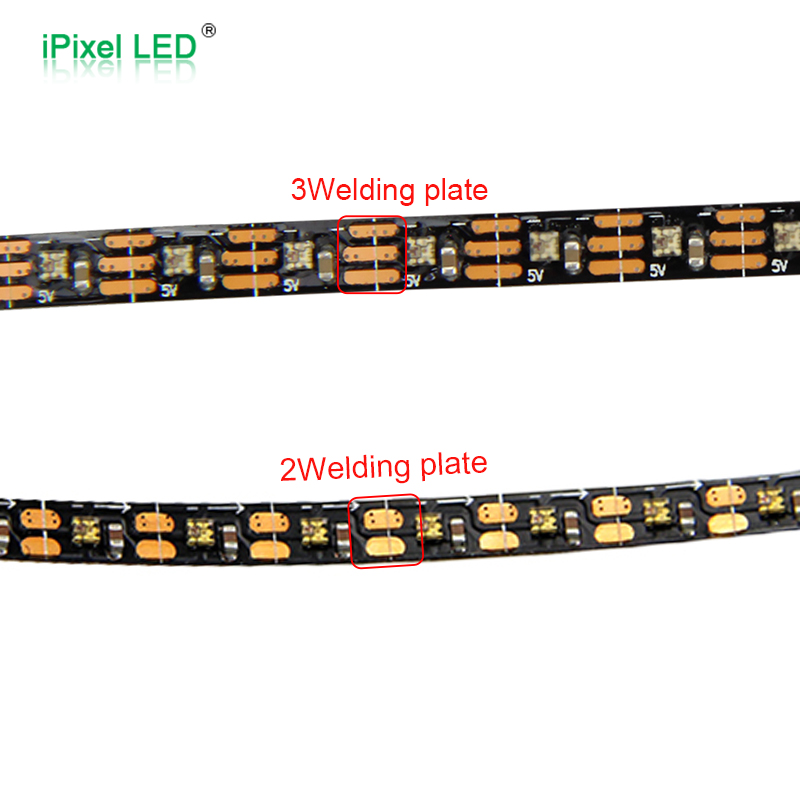

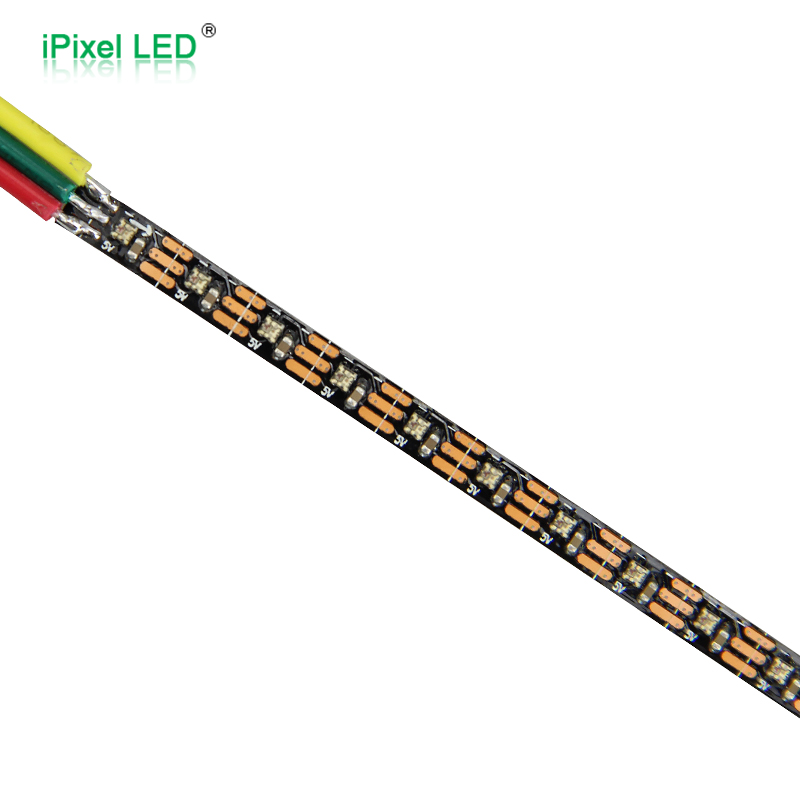

can be cut down 5VCC Pad on bottom side, Data&GND on front side,26AWG silicone wire,
The LED strip can be link to, it can be link to 1.5m long if powering from one side,
3M tape attached, non-waterproof IP20

|
PN |
S004150UA3SDO |
|
Voltage |
DC5V |
|
LED Type |
SMD1515RGB |
| LED Quantity |
75LEDs/pcs(0.5m) |
|
Protocol |
SPI-SK6805 |
|
Dimension |
500*4mm |
|
Emitting Color |
Full color |
| PCB Color | Black |
|
Power |
6W/0.5m |
| O.T | -25℃ ~ 60℃ |

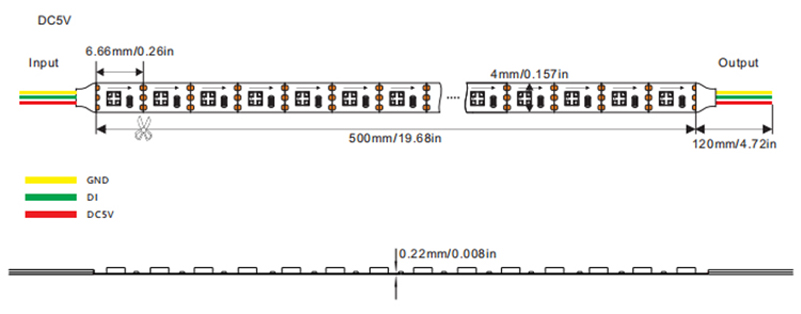

Dimension (unit:mm)
IP Rate
