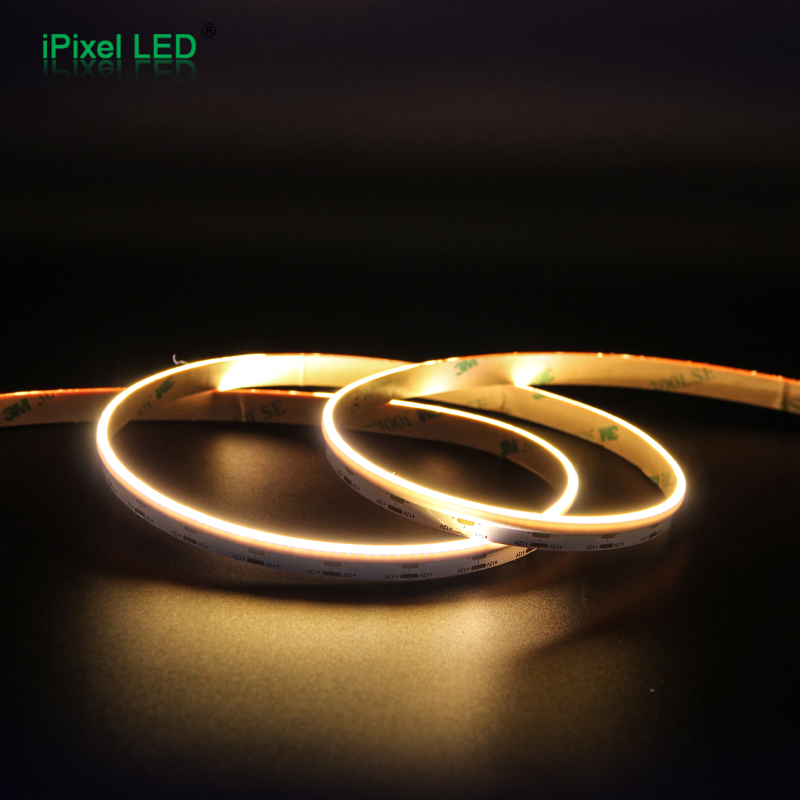

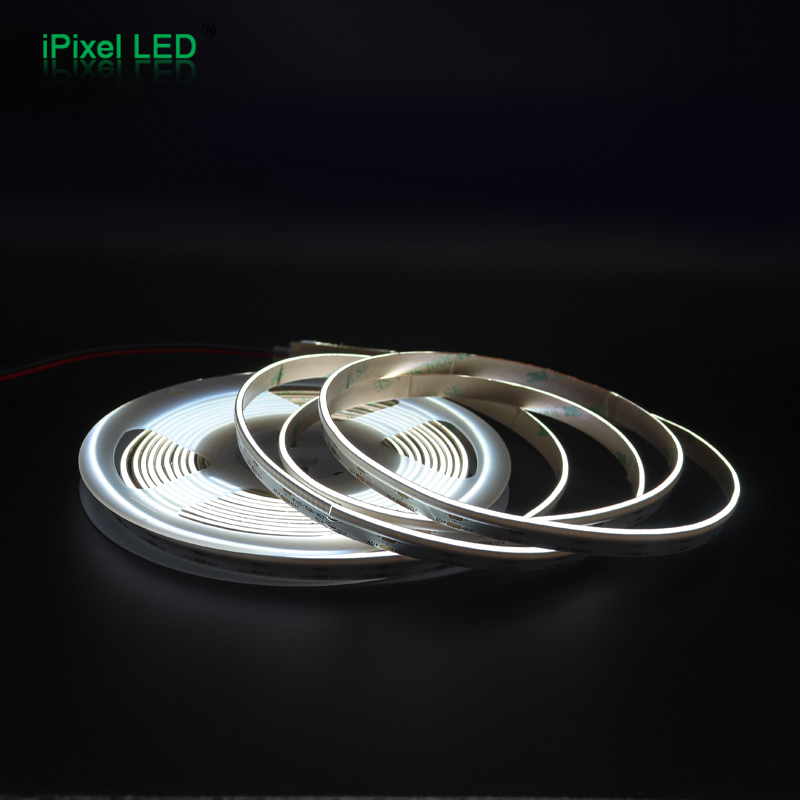

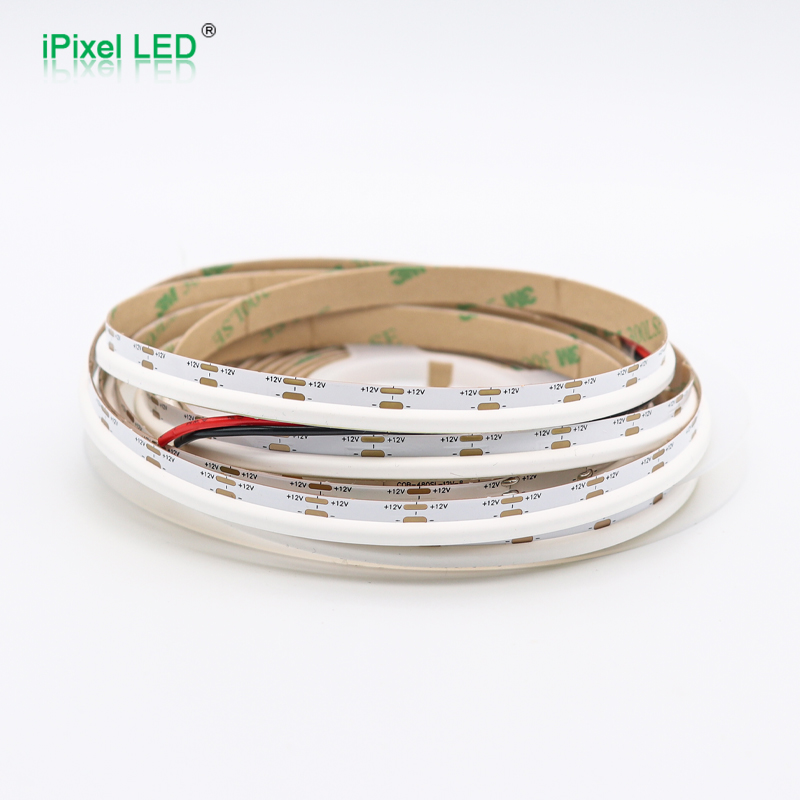

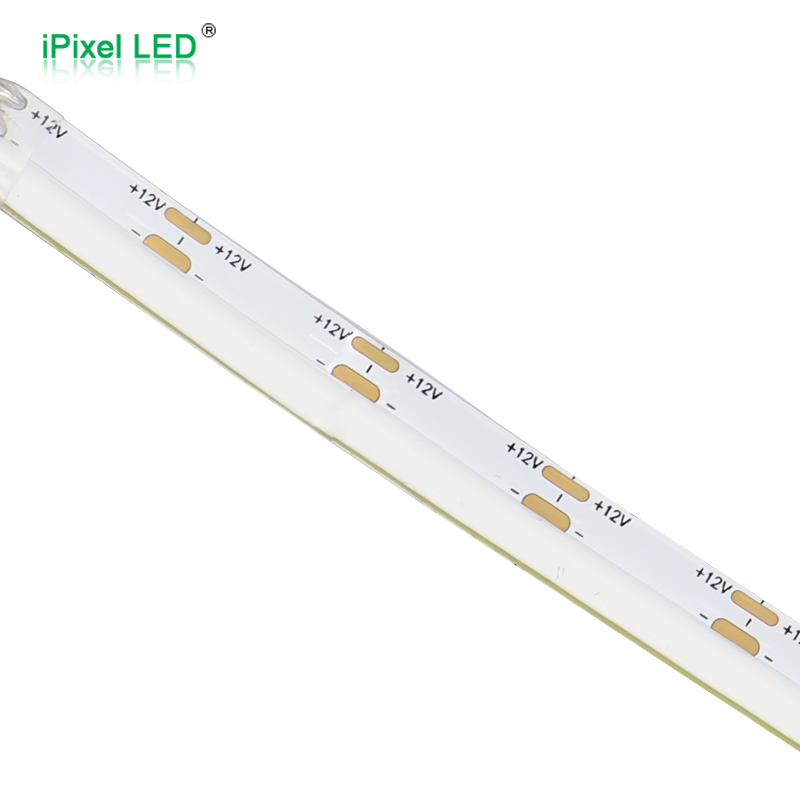

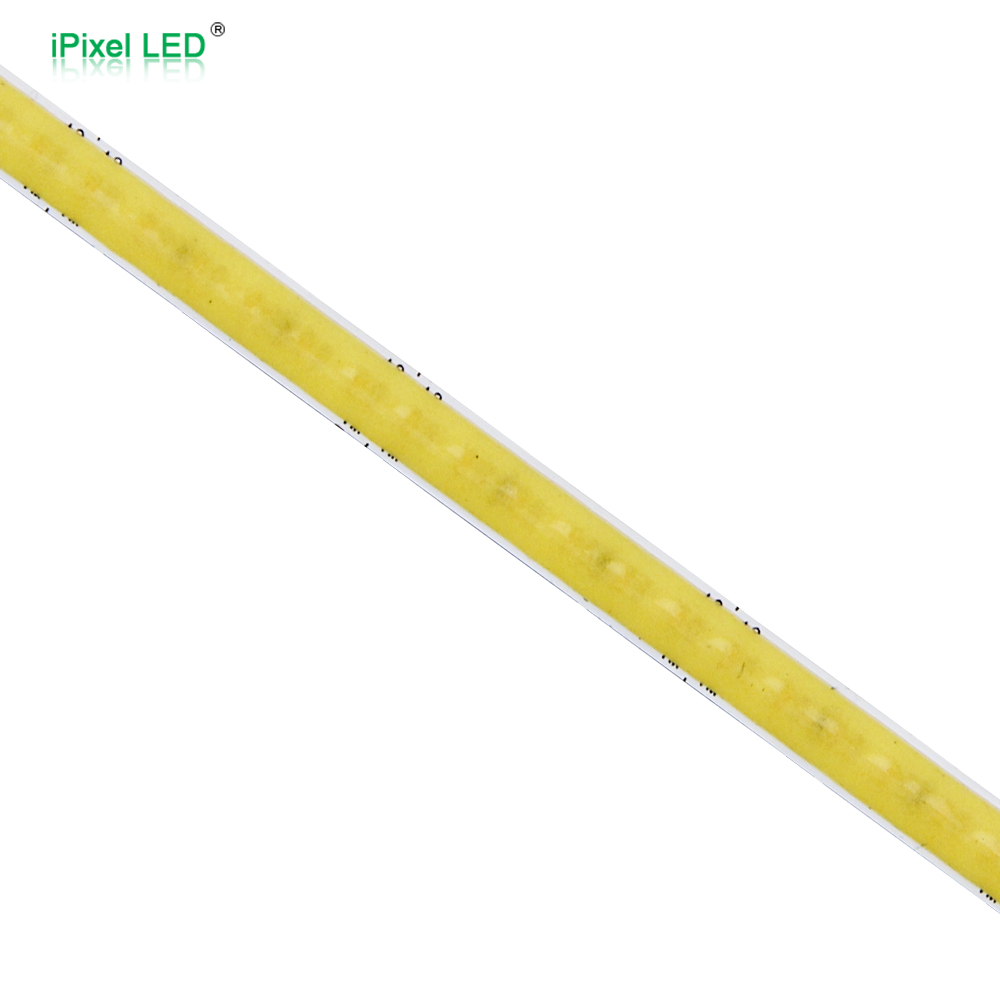

2 wires CCT COB LED strip 576LEDs/m DC12V
Description
-High density, the light is even and soft
-High efficiency, remarkable energy saving effect
-Double layer PCB, balancing voltage drop, heat dissipation and flexibility.
-Chip longitudinal distribution, high reliability;
-Dual white design, color changing from 2700K to 6500K.
-SDCM is less than 5 steps
-Standard 5M/roll, length can be customized
Share to
Specification
Product Parameter
| PN | S005576ZB2PZ |
| Voltage | DC12V |
| SMD Type | COB |
| Power | 6W/m |
| LED Quantity | 576LEDs/m |
| Cutting Length | 20.83mm |
| CCT | 2700K+6500K |
| Dimension | 5000*5mm |
| Lumens(lm/m) | WW:450Lm CW:360Lm |
| SCDM | <5 |
| CRI | 90RA |
| O.T | -25℃ ~ 60℃ |
Remarks:
1.The above parameters were tested according to integrating sphere TM-30-15.
2.The output data is based on IP20 and one merter.
3.The data such as power etc, ±15% tolerance is normal.
4.IP protection process causes changes in size, CCT and luminous flux

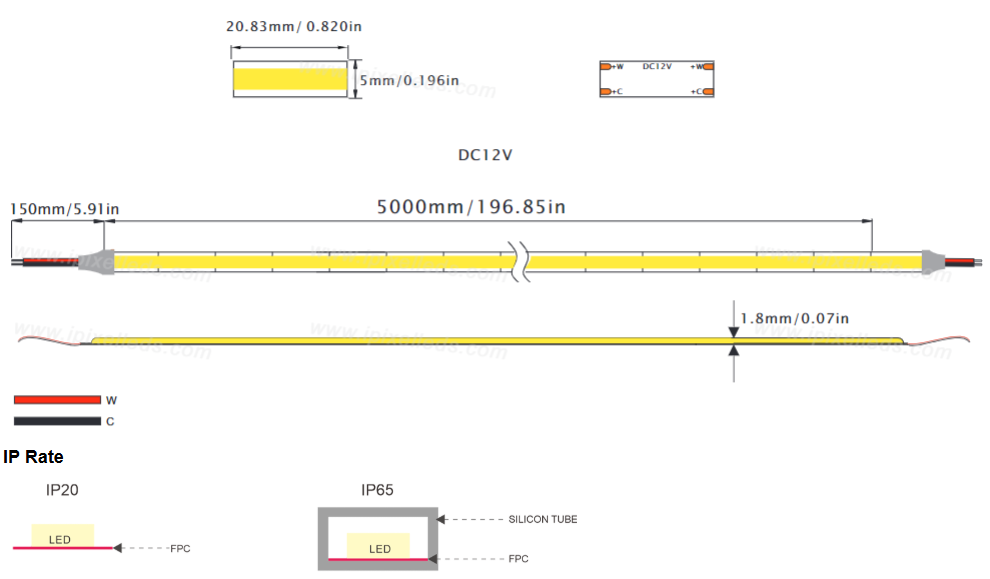

Dimension (unit:mm)
