Home > LED Flex > One Color > SMD2835 10mm single color LED strip 120LEDs/M DC12V/DC24V

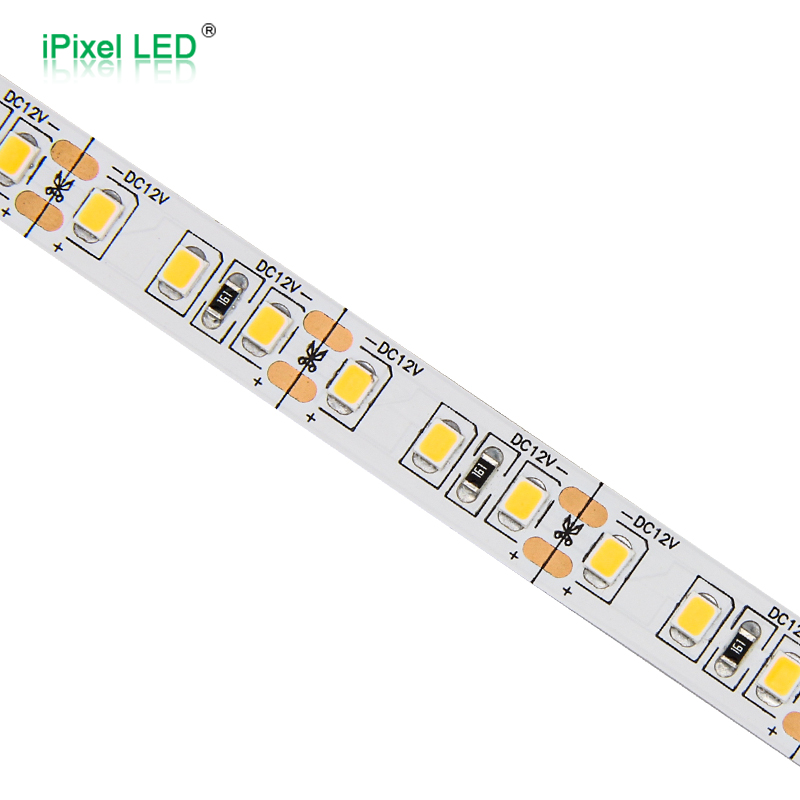

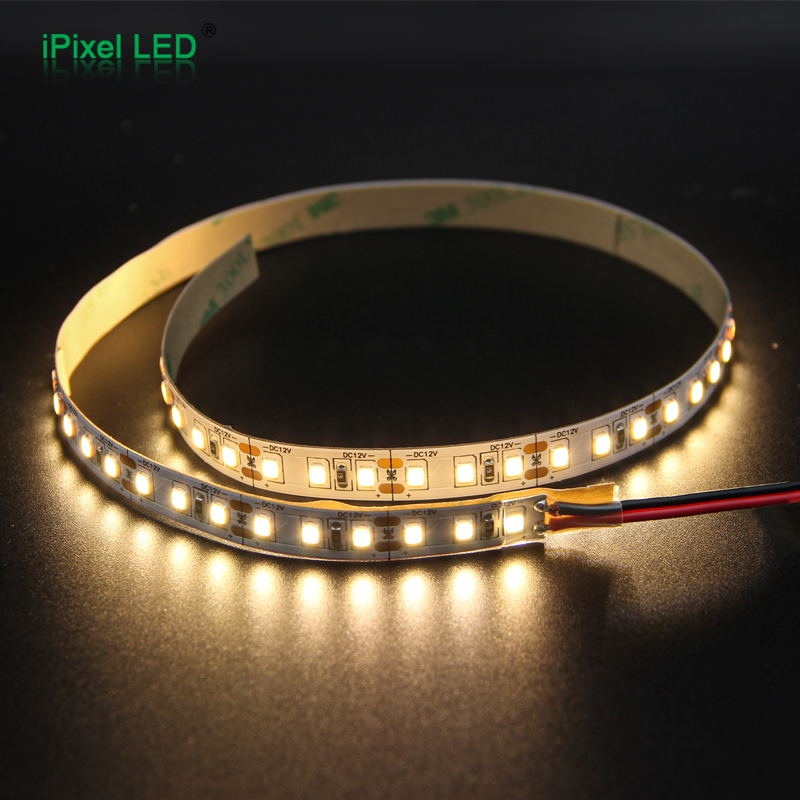

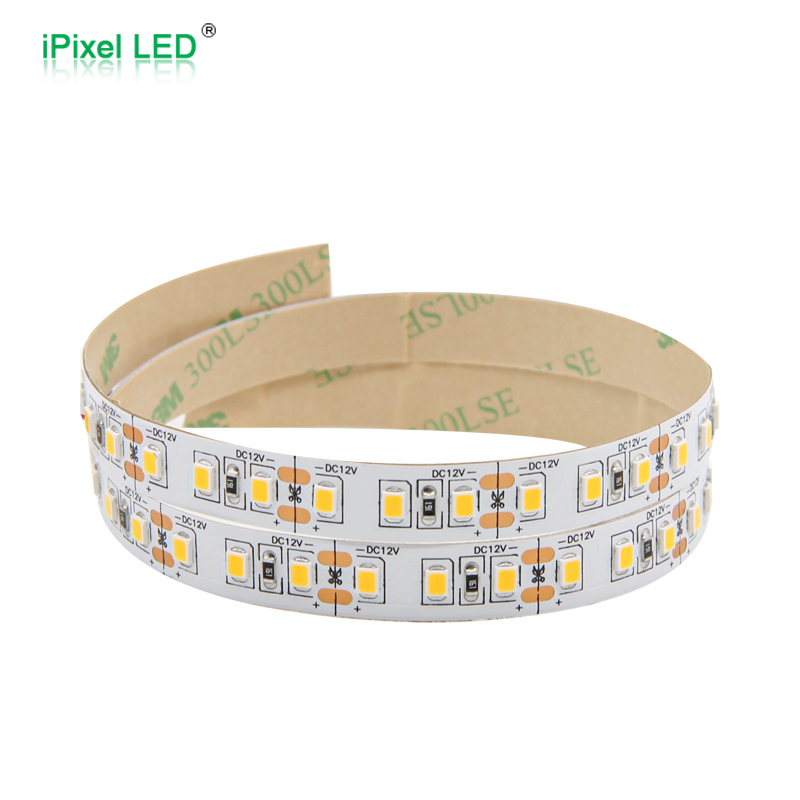

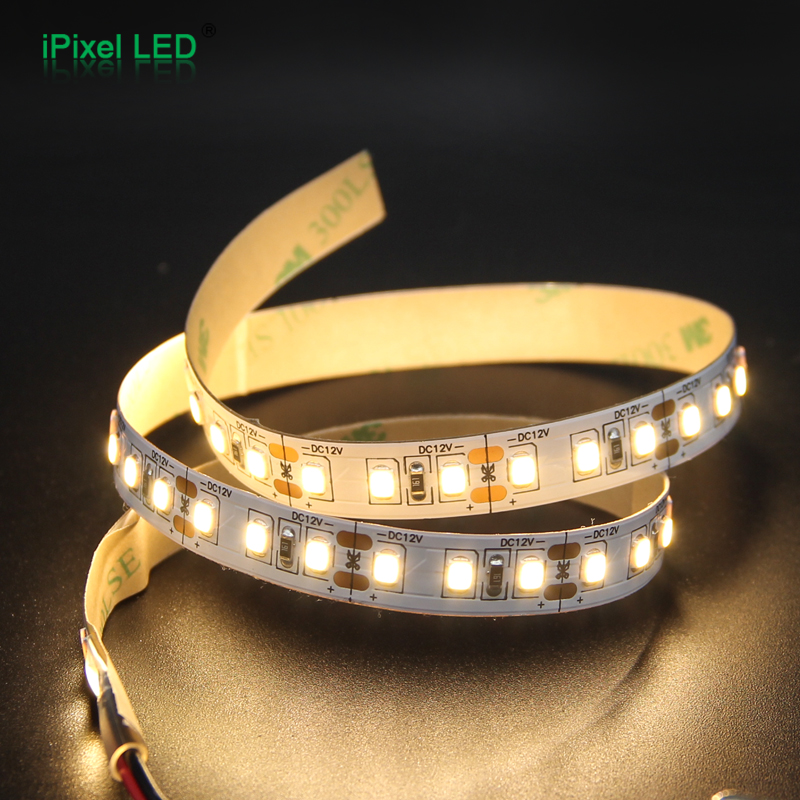

SMD2835 10mm single color LED strip 120LEDs/M DC12V/DC24V

Description

This flexible LED strip soldered 120pcs in a meter SMD 2835 LED chips
Flexible PCB in white color with 10mm Width
Cut-able each set of 3 LED in 25mm(DC12v), 6LED in 50mm(DC24V)
All the soldering Pad very large allow you easy to cut and joint again
DC12V/24V constant voltage operation
Both end attached bare wire for Powering
3M tape attached on backside of FPC
Standard 5m/roll, customized sizes are available

Share to

Specification

Product Parameter

PN	S010120BB1LZ	S010120BC1LZ
Voltage	DC12V	DC24V
LED Type	SMD 2835	SMD 2835
LED Quantity	120 LEDs/m	120 LEDs/m
CCT	R/G/B/W:3000K/4000K/6500K	R/G/B/W:3000K/4000K/6500K
Dimension	5000*10mm	5000*10mm
Cutting length	25mm	50mm
Lumens(lm/m	1000	1000
PCB Color	White	White
Power	10W/m	10W/m
CRI	≥80RA	≥80RA
O.T	-25℃ ~ 60℃	-25℃ ~ 60℃
